Stock Code: FSD-1606
|

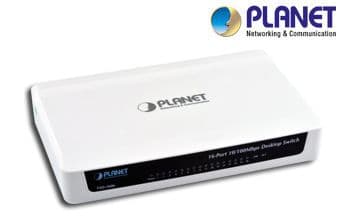

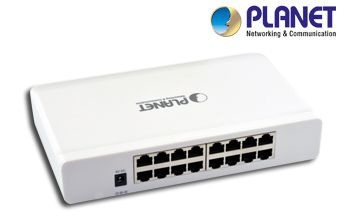

High-Speed 10/100Mbps Workgroup Switch The brand-new PLANET FSD-1606 provides 16 RJ-45 10/100Mbps ports for high speed network connectivity. The FSD-1606 can automatically identify and determine the correct transmission speed as well as half / full duplex mode of the attached devices with its 16 interfaces. Stable Fast Ethernet Switch Performance The FSD-1606 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, 148,800 packets per second in 100Mbps) and 1.625Mb RAM packet buffer help the FSD-1606 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the FSD-1606 could recognize up to 4K different MAC addresses and provide 3.2Gbps switching capacity, which makes the FSD-1606 offer wire-speed packets transfer performance without risk of packet loss. Flexible Desktop Size Design The FSD-1606 is the fancy-shape standard plastic model to fit into space-limited environment. Designed withcompact size and simple troubleshooting functions, the FSD-1606 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking. |
|||||
 |
|||||
|
Flexible Desktop Size Design The FSD-1606 is the fancy-shape standard plastic model to fit into space-limited environment. Designed withcompact size and simple troubleshooting functions, the FSD-1606 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking. |
|||||
 |
|||||
|
Plug & Play and Easy Installation All RJ-45 copper interfaces in the FSD-1606 support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5/5e cables. Supporting standard for Auto-MDI/MDI-X, the FSD-1606 can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. The Flow Control function allows the FSD-1606 to support routers and servers for direct connection with fast and reliable data transfer. |
|||||
|
|
