Feeds ten screens and plays the content from its own disk.

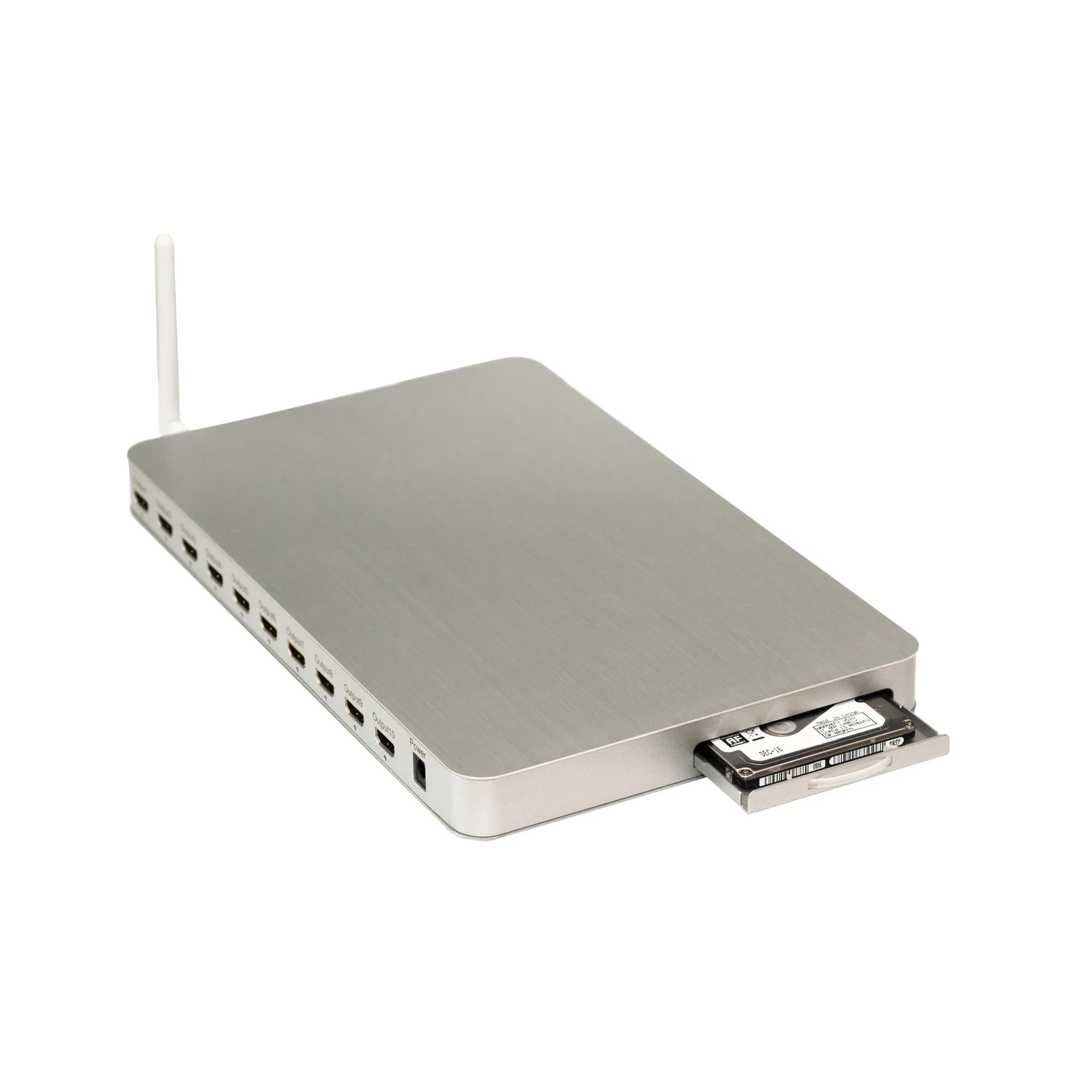

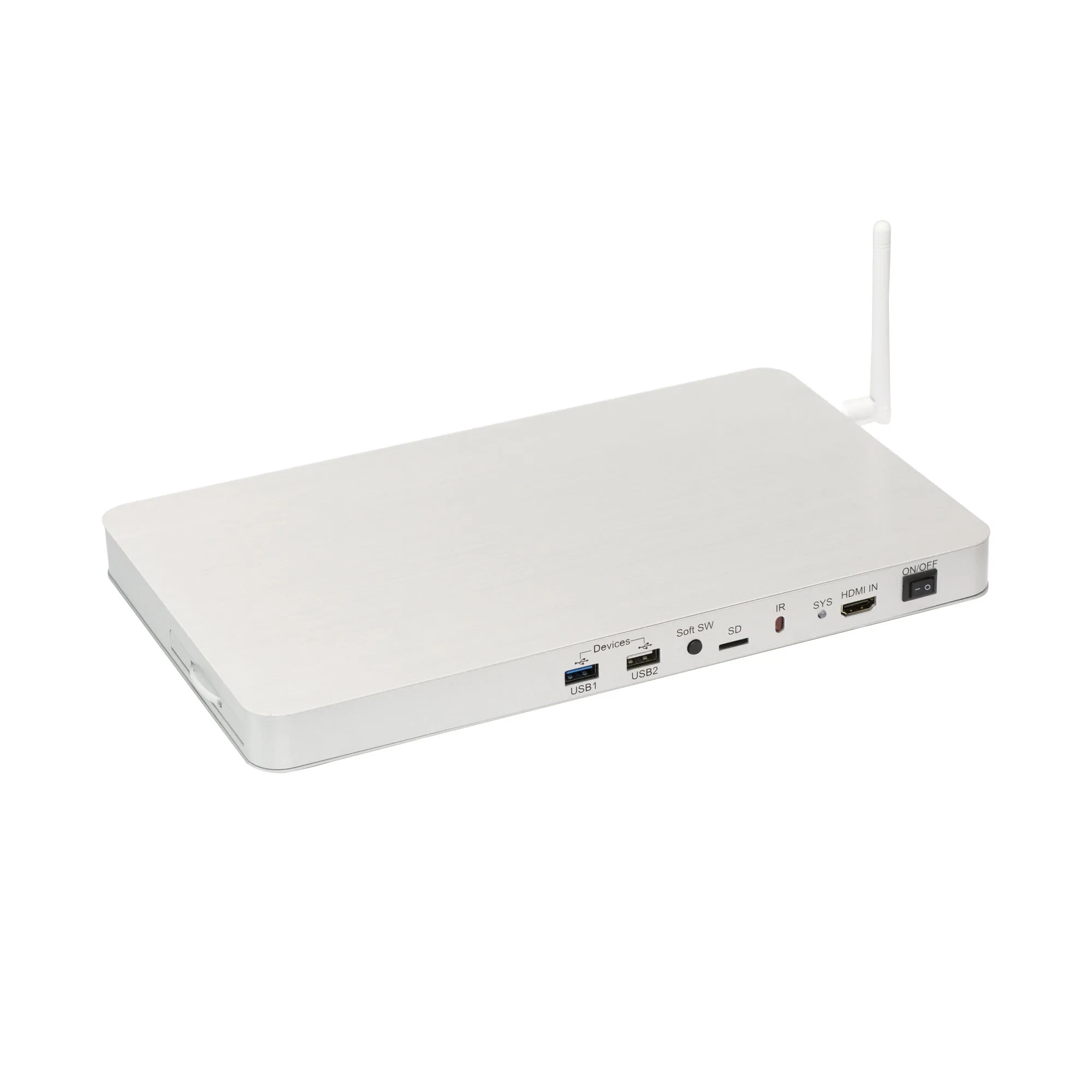

A 1x10 HDMI splitter and a media player with an internal disk in one housing. It plays content from the 500 GB disk in H.264 and H.265 and feeds ten outputs at up to 4Kx2K @30Hz.

1x10input / output configuration

4Kx2K @30Hzmax. resolution

HDMI 1.4bHDMI version

500 GBinternal disk

2 × USB 2.0USB inputs

Key features

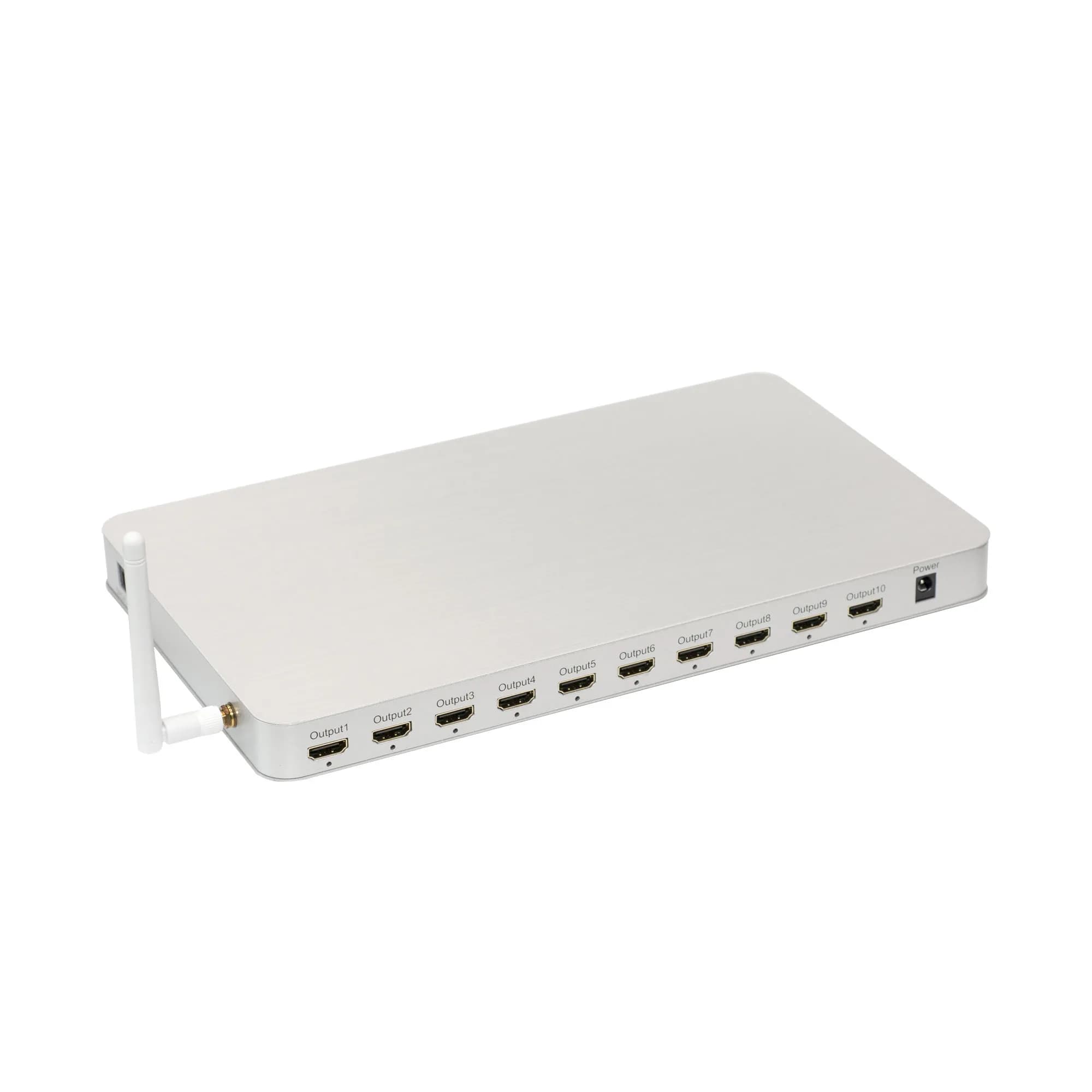

10outputs

Ten screens from one unit

Sends video to ten HDMI outputs from a single housing at the same time.

2GHz

Eight core processor

An eight core 2 GHz processor and 2 GB of DDR3 memory handle playback.

300MHz

Bandwidth

Runs at a 3 Gbps data rate with 300 MHz of bandwidth.

Cable distance

Reaches up to 8 m on the input and the output side with 26 AWG HDMI cable.

12bit

Color depth

Supports 8, 10 and 12 bit color depth.

IN DAILY USE

Built in media playerPlays files straight from its own disk, so no separate source device is needed.

Content over the networkReaches content on the network over WiFi and DLNA.

Set it from the remoteChanges the resolution from an IR remote or a USB mouse.

Usage areasTV stores·Project installations

HDMI Wireless Adapter - Technical Specifications

Supported Video Formats

H.264/H.265 4Kx2K@30Hz, MPEG1/2/4 1080P@60Hz, AVS 1080P@60Hz

HDMI Version

HDMI 1.4b

Maximum Resolution

4Kx2K @ 30Hz

Bandwidth

3 Gbps data rate, 300 MHz maximum bandwidth

Connectivity

WiFi, DLNA

Color Depth

8-bit / 10-bit / 12-bit

HDMI Cable Distance

8 m after input and 8 m after output with 26 AWG HDMI cable (supports 4K/1080P)

Audio Output

SPDIF

USB

2 × USB 2.0 inputs

HDMI Outputs

10 outputs simultaneously

IR Control

IR control supported

Resolution Adjustment

Adjustable via IR or USB mouse

Feeds ten screens and plays the content from its own disk.

A 1x10 HDMI splitter and a media player with an internal disk in one housing. It plays content from the 500 GB disk in H.264 and H.265 and feeds ten outputs at up to 4Kx2K @30Hz.

1x10input / output configuration

4Kx2K @30Hzmax. resolution

HDMI 1.4bHDMI version

500 GBinternal disk

2 × USB 2.0USB inputs

Key features

10outputs

Ten screens from one unit

Sends video to ten HDMI outputs from a single housing at the same time.

2GHz

Eight core processor

An eight core 2 GHz processor and 2 GB of DDR3 memory handle playback.

300MHz

Bandwidth

Runs at a 3 Gbps data rate with 300 MHz of bandwidth.

Cable distance

Reaches up to 8 m on the input and the output side with 26 AWG HDMI cable.

12bit

Color depth

Supports 8, 10 and 12 bit color depth.

IN DAILY USE

Built in media playerPlays files straight from its own disk, so no separate source device is needed.

Content over the networkReaches content on the network over WiFi and DLNA.

Set it from the remoteChanges the resolution from an IR remote or a USB mouse.

Usage areasTV stores·Project installations

HDMI Wireless Adapter - Technical Specifications

Supported Video Formats

H.264/H.265 4Kx2K@30Hz, MPEG1/2/4 1080P@60Hz, AVS 1080P@60Hz

HDMI Version

HDMI 1.4b

Maximum Resolution

4Kx2K @ 30Hz

Bandwidth

3 Gbps data rate, 300 MHz maximum bandwidth

Connectivity

WiFi, DLNA

Color Depth

8-bit / 10-bit / 12-bit

HDMI Cable Distance

8 m after input and 8 m after output with 26 AWG HDMI cable (supports 4K/1080P)

Audio Output

SPDIF

USB

2 × USB 2.0 inputs

HDMI Outputs

10 outputs simultaneously

IR Control

IR control supported

Resolution Adjustment

Adjustable via IR or USB mouse

1x10 HDMI Splitter with Streaming Media Player with 500GB HDD
