Sends one HDMI source to sixteen screens at the same time.

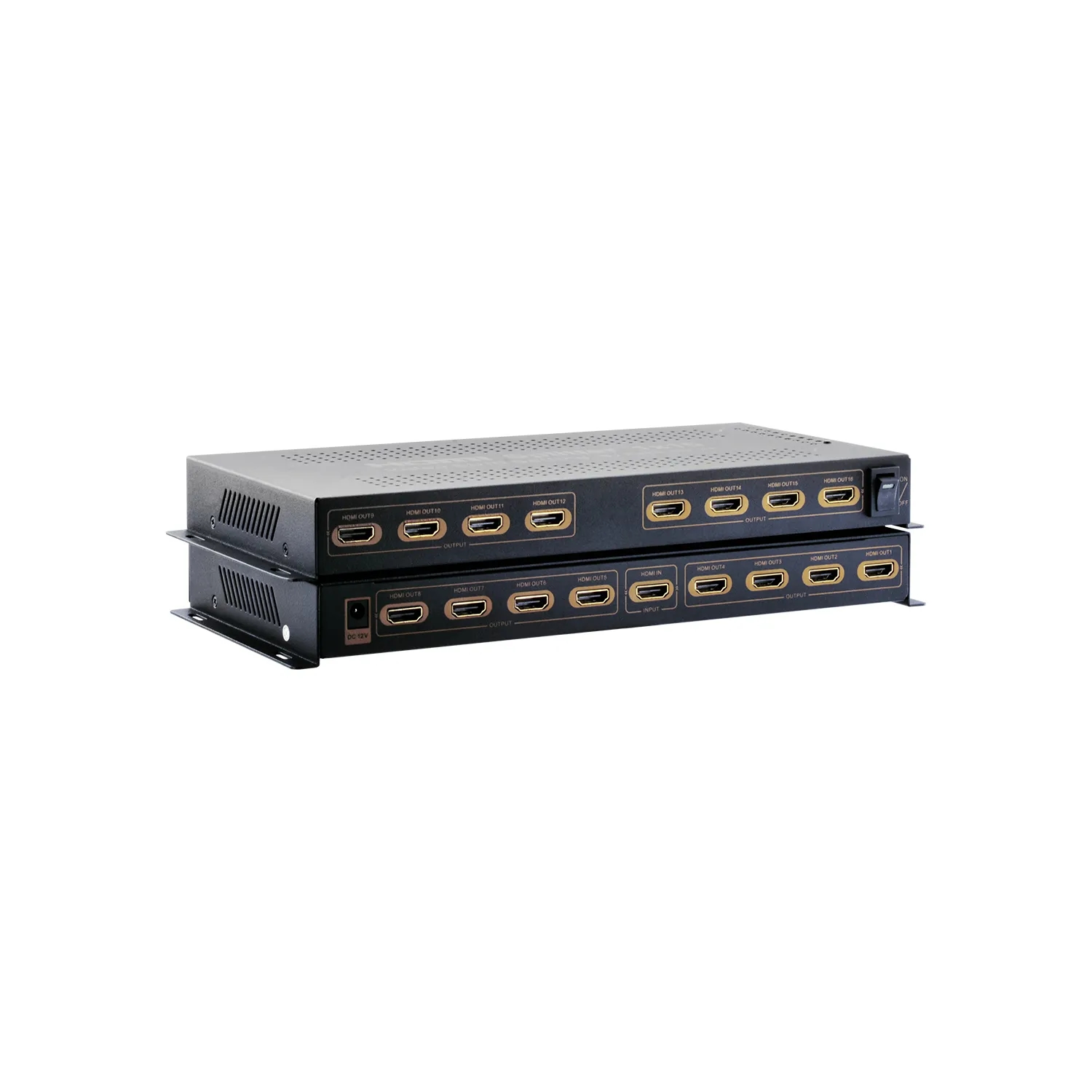

A splitter that copies a single HDMI input to sixteen HDMI outputs. It works to HDMI version 1.4 and passes Full 3D and 4K×2K Ultra HD sources with HDCP 1.3 protection.
1x16input / output configuration
16HDMI outputs
4K×2Kmax. resolution
HDMI 1.4HDMI version
340 MHz / 3.4 Gbpschannel bandwidth
Key features
16outputs
Sixteen screens from one source
Copies the picture from a single source to sixteen outputs at once.
10.2Gbps
Total bandwidth
Carries 10.2 Gbps across all channels.
12bit
Color depth
Passes 12 bit deep color on every channel.
1.3HDCP version
Content protection
Delivers HDCP 1.3 protected sources to the screens.
1080p
Full HD support
Copies Full HD sources at their native resolution as well.
IN DAILY USEAt the end of a long cableGoes on the end of long HDMI runs and boosts the weakened signal.
Audio travels tooCarries LPCM uncompressed audio and the DTS Digital and Dolby Digital streams to the outputs.
Easy installationSits between the source and the displays and needs nothing beyond the cabling.
Usage areasNoisy environments·Data center control·Information distribution·Conference rooms and presentations·School and corporate training
