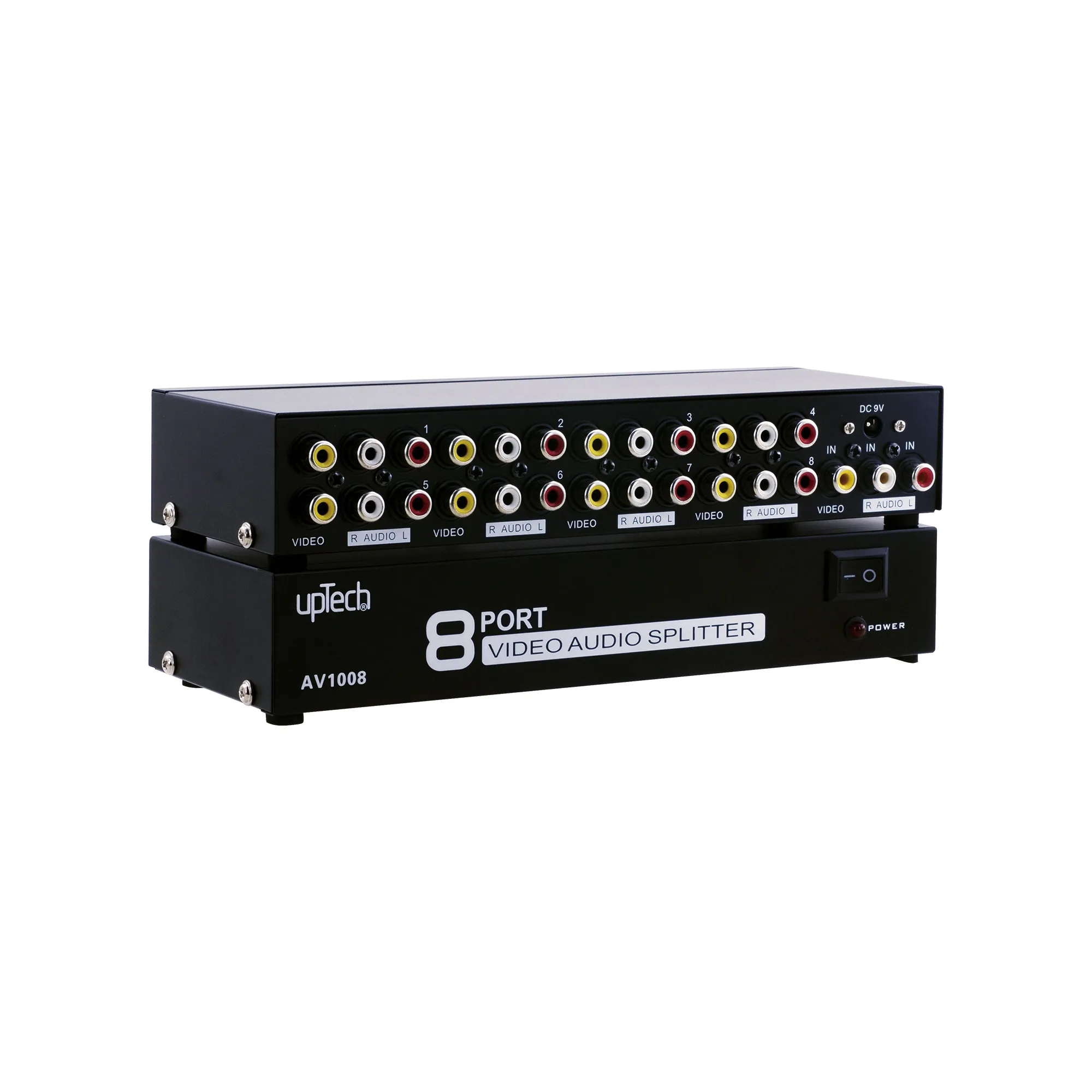

Distributes one audio and video source to eight outputs
A distributor that carries the audio and video signal of a single AV source to eight separate outputs at the same time. The video path runs from 50 Hz to 5.5 MHz and the audio path from 10 Hz to 20 KHz. It fits home, workplace, school and factory installations.
8Output Count
1Input Count
75 OhmVideo Impedance
50 Hz – 5.5 MHzVideo Bandwidth
10 Hz – 20 KHzAudio Bandwidth
Key features
8outputs
Distribution to eight points
Sends the audio and video of a single source to eight outputs at once.
75Ohm
Video line impedance
Input and output levels run at 0.8 – 1.0 Vp-p on a 75 Ohm line impedance.
5.5MHz
Upper limit of the video band
The video path carries components between 50 Hz and 5.5 MHz.
20KHz
Upper limit of the audio band
The audio path passes 10 Hz to 20 KHz at 0 dB.
EVERYDAY USEOne source, many viewersDelivers the same feed to screens in different rooms together.
Fits different environmentsTakes its place in home, workplace, school and factory installations.
Usage AreasHome·Workplace·School·Factory
