Connects over Wi-Fi and lights up to 30 meters in the dark

A 2 MP Wi-Fi bullet camera for spots where running cable is hard. The dual-antenna 2.4 GHz module reaches up to 150 meters in open ground, and the body carries a microphone and a speaker.

1/2.8" CMOSSensor

1920 × 1080Max. resolution

30 mIR distance

150 mWireless range

IP67Protection Grade

12 VDCPower supply

Key features

30m

Night viewing range

The built-in IR LED lights the scene up to 30 meters in the dark.

2.4GHz

Wireless link

An IEEE 802.11b/g/n dual antenna reaches up to 150 meters in open ground.

256GB

Edge storage

A Micro SD card keeps the recording on the camera when the network drops.

IP67rated

Outdoor durability

The housing seals out dust and water.

2.2W

Low consumption

Basic operation draws 2.2 W on 12 V DC.

2streams

Simultaneous streams

The main stream records 1080p while the sub stream goes to remote viewing.

IN DAILY USE

No cable run neededThe camera joins the network over Wi-Fi, so only the power lead reaches the spot.

Audio is recorded tooThe built-in microphone adds ambient sound next to the video.

Recording survives a network dropThe camera writes video to its own memory card.

Wireless range varies with the environment; the 150 meter figure describes open ground.

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.025 lux@F2.0 (Color, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: Horizontal: 100°; Vertical: 53°; Diagonal: 120°
3.6 mm: Horizontal: 86°; Vertical: 43°; Diagonal: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.0 m (3.28 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	46.9 m (153.87 ft)	18.8 m (61.68 ft)	9.4 m (30.84 ft)	4.7 m (15.42 ft)
3.6 mm	58.8 m (192.91 ft)	23.5 m (77.10 ft)	11.8 m (38.71 ft)	5.9 m (19.36 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080 (1–25/30 fps)
Sub stream: 640 × 480@(1–25 fps); 640 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

1024 kbps (1080p)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a; G.711Mu

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4000–2.4835 GHz; 2.4 G; EIRP≤20dBm(CE); output power≤30dBm(FCC)

Wireless Range

Up to 150 m (The performance varies based on actual environment)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 2.2 W (12 VDC)
Max. (H.265+IR intensity): 6.21 W (12 VDC)

Environment

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Front cover: Plastic
Rear: Plastic
Bracket: Metal

Product Dimensions

180 mm × 83.3 mm × 114.8 mm (7.09" × 3.28" × 4.52")

Net Weight

350.1 g (0.77 lb)

Gross Weight

588.1 g (1.30 lb)

Connects over Wi-Fi and lights up to 30 meters in the dark

A 2 MP Wi-Fi bullet camera for spots where running cable is hard. The dual-antenna 2.4 GHz module reaches up to 150 meters in open ground, and the body carries a microphone and a speaker.

1/2.8" CMOSSensor

1920 × 1080Max. resolution

30 mIR distance

150 mWireless range

IP67Protection Grade

12 VDCPower supply

Key features

30m

Night viewing range

The built-in IR LED lights the scene up to 30 meters in the dark.

2.4GHz

Wireless link

An IEEE 802.11b/g/n dual antenna reaches up to 150 meters in open ground.

256GB

Edge storage

A Micro SD card keeps the recording on the camera when the network drops.

IP67rated

Outdoor durability

The housing seals out dust and water.

2.2W

Low consumption

Basic operation draws 2.2 W on 12 V DC.

2streams

Simultaneous streams

The main stream records 1080p while the sub stream goes to remote viewing.

IN DAILY USE

No cable run neededThe camera joins the network over Wi-Fi, so only the power lead reaches the spot.

Audio is recorded tooThe built-in microphone adds ambient sound next to the video.

Recording survives a network dropThe camera writes video to its own memory card.

Wireless range varies with the environment; the 150 meter figure describes open ground.

Camera

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

16 MB

RAM

64 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.025 lux@F2.0 (Color, 30 IRE)
0.0025 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: Horizontal: 100°; Vertical: 53°; Diagonal: 120°
3.6 mm: Horizontal: 86°; Vertical: 43°; Diagonal: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.0 m (3.28 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	46.9 m (153.87 ft)	18.8 m (61.68 ft)	9.4 m (30.84 ft)	4.7 m (15.42 ft)
3.6 mm	58.8 m (192.91 ft)	23.5 m (77.10 ft)	11.8 m (38.71 ft)	5.9 m (19.36 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

1024 kbps (1080p)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a; G.711Mu

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE802.11b/g/n 2.4000–2.4835 GHz; 2.4 G; EIRP≤20dBm(CE); output power≤30dBm(FCC)

Wireless Range

Up to 150 m (The performance varies based on actual environment)

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

Interoperability

ONVIF (Profile S/Profile T); CGI; P2P

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C

Power

Power Supply

12 VDC

Power Consumption

Basic: 2.2 W (12 VDC)
Max. (H.265+IR intensity): 6.21 W (12 VDC)

Environment

Operating Temperature

–30 °C to +50 °C (–22 °F to +122 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Front cover: Plastic
Rear: Plastic
Bracket: Metal

Product Dimensions

180 mm × 83.3 mm × 114.8 mm (7.09" × 3.28" × 4.52")

Net Weight

350.1 g (0.77 lb)

Gross Weight

588.1 g (1.30 lb)

2 MP IR Fixed-focal WiFi Bullet Network Camera

Datasheet

IPC-HFW1230DT-STW

Kullanım Kılavuzu

IPC-HFW1230DT-STW

IPC-HFW1230DT-STW

Teknik Çizim

IPC-HFW1230DT-STW

IPC-HFW1230DT-STW

Fotoğraf

IPC-HFW1230DT-STW

IPC-HFW1230DT-STW

Similar Products

2MP Smart Dual Light Fixed-focal Bullet Network Camera

2MP IR Fixed-focal Bullet WizSense Network Camera

2MP IR Fixed-focal Bullet WizSense Network Camera

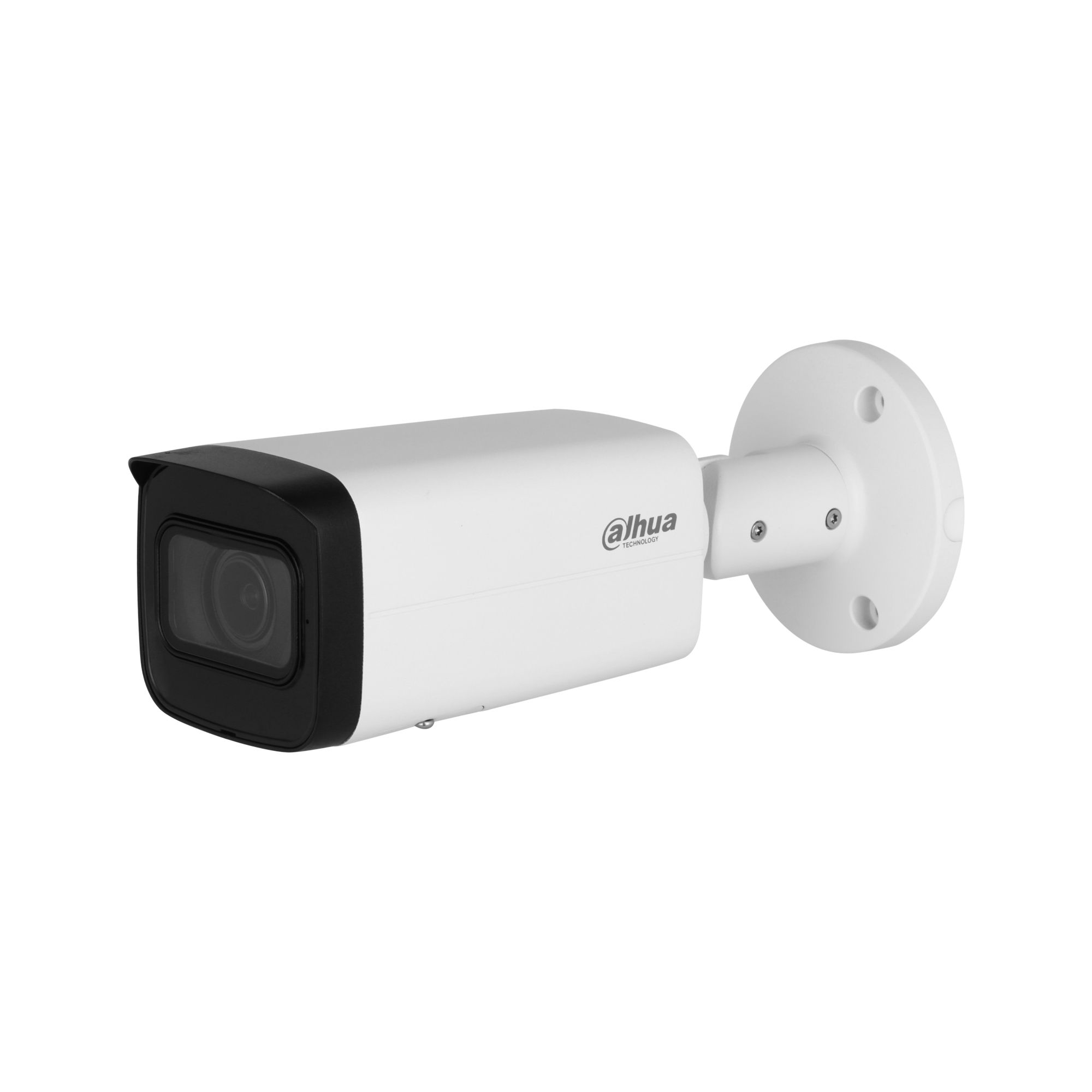

2MP IR Vari-focal Bullet WizSense Network Camera
