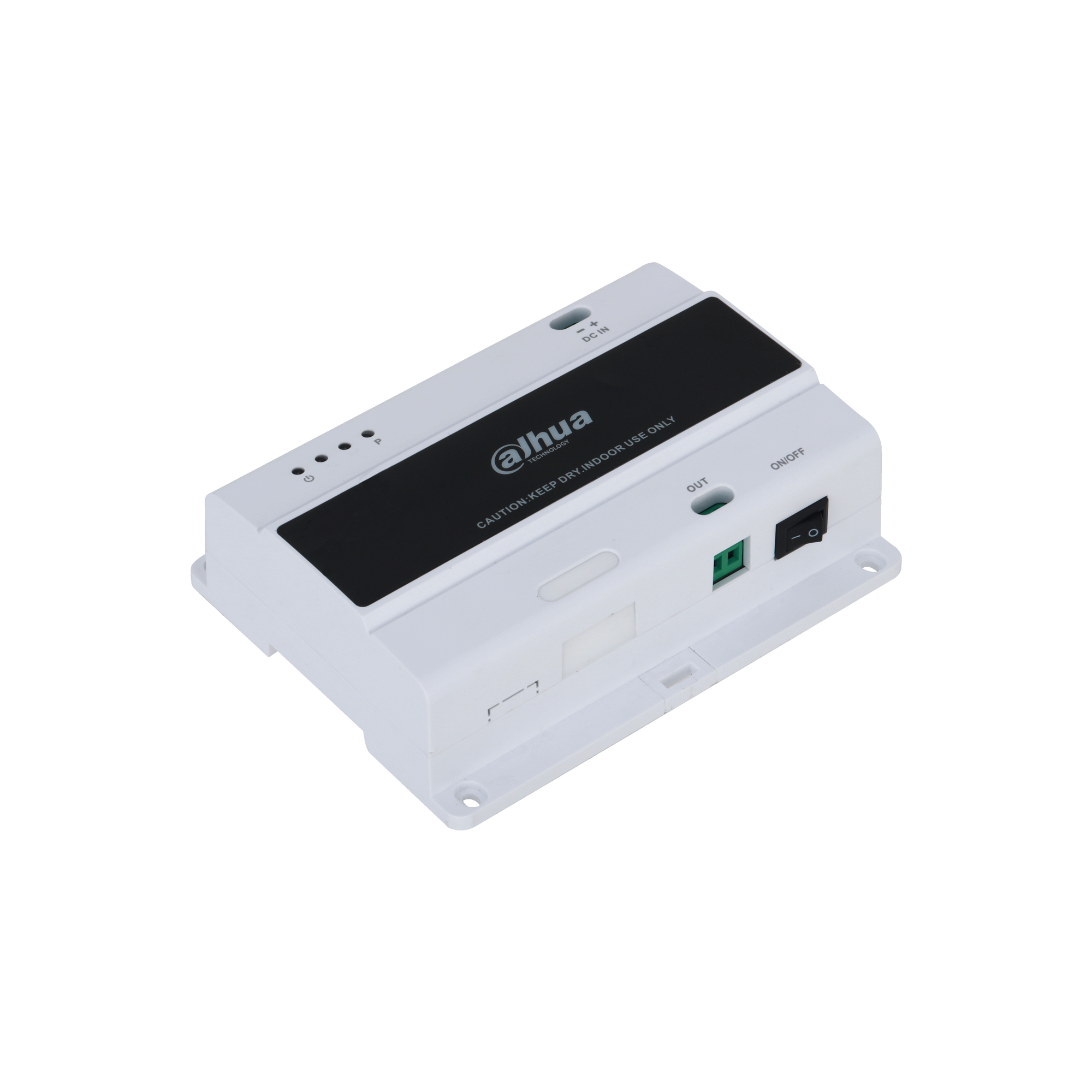

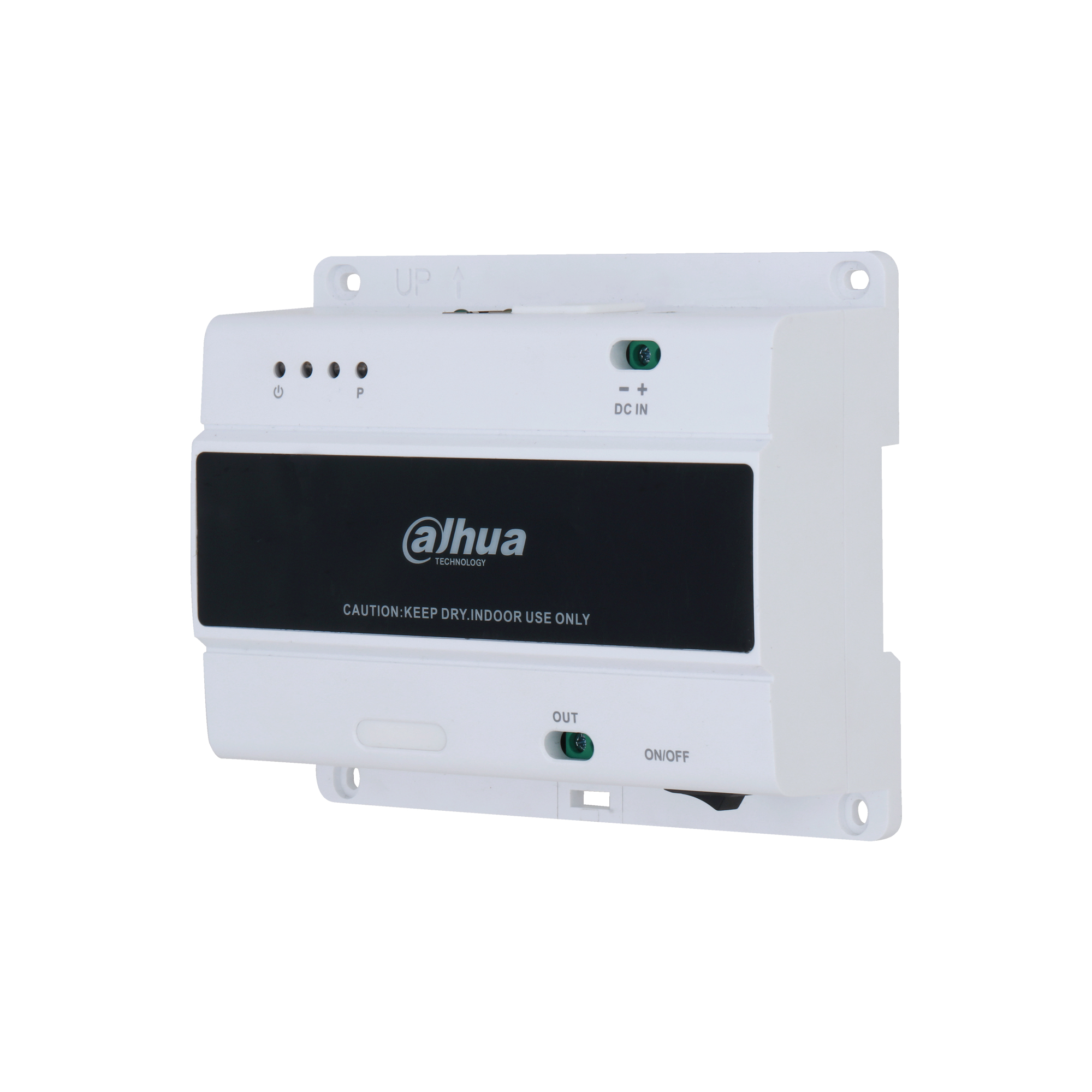

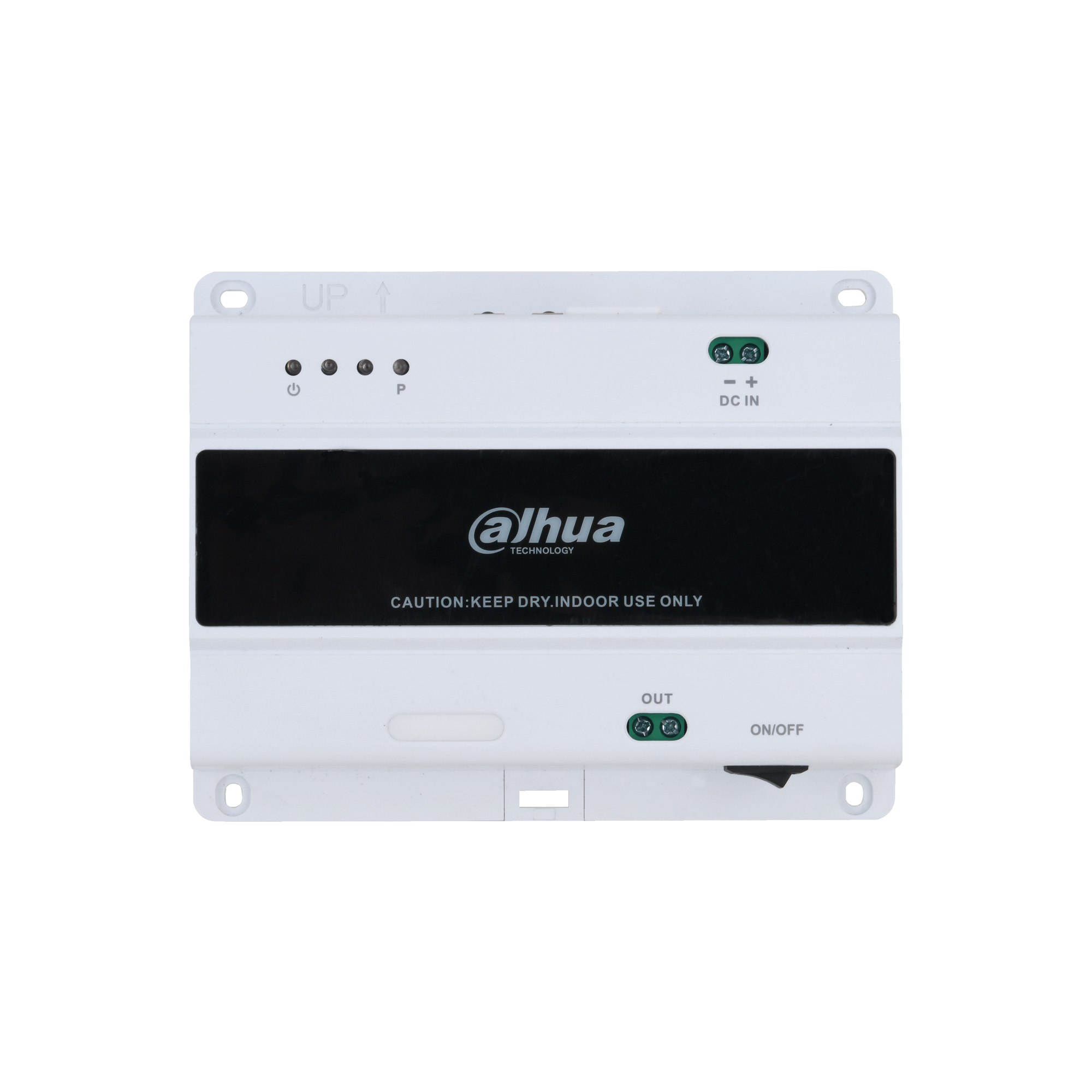

2-Wire Switch

Name: 2-Wire Switch
Brand: Dahua
SKU: VTNS1001B-2

Stock Code: VTNS1001B-2

Brings four indoor monitors and two door stations together in one module.

A connection module for 2-wire video intercom installations. It links to the network over the RJ45 port and feeds indoor monitors and door stations over the 2-wire port.

DC 48 VPower supply

1 A – 3 ASupply current

≤ 15 WPower consumption

-10 °C ~ +55 °COperating Temperature

131 × 103 × 40 mmDimensions

Key features

Port layoutIt carries one RJ45 port and one 2-wire port.

System capacityIt connects to 4 indoor monitors and 2 door stations.

Status indicatorsTwo indicator lights show the working state of the module.

Rail mountingThe PC + ABS body supports guide rail mounting.

Technical Specification: Video Intercom 2-Wire Connection Module
Communication / Indicators	2-wire / 2 Status Indicator Lights
Ports	1 × 2-wire port; 1 × RJ45
Installation / Casing	Guide rail mount / PC + ABS
Power Supply	DC 48V, 1A–3A
Dimensions	131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57")
Operating Conditions	-10°C to +55°C / 10%–95% RH (non-condensing)
Power Consumption	≤ 15W (KIT)
Net / Gross Weight	0.25 kg (0.55 lb) / 0.39 kg (0.86 lb)
