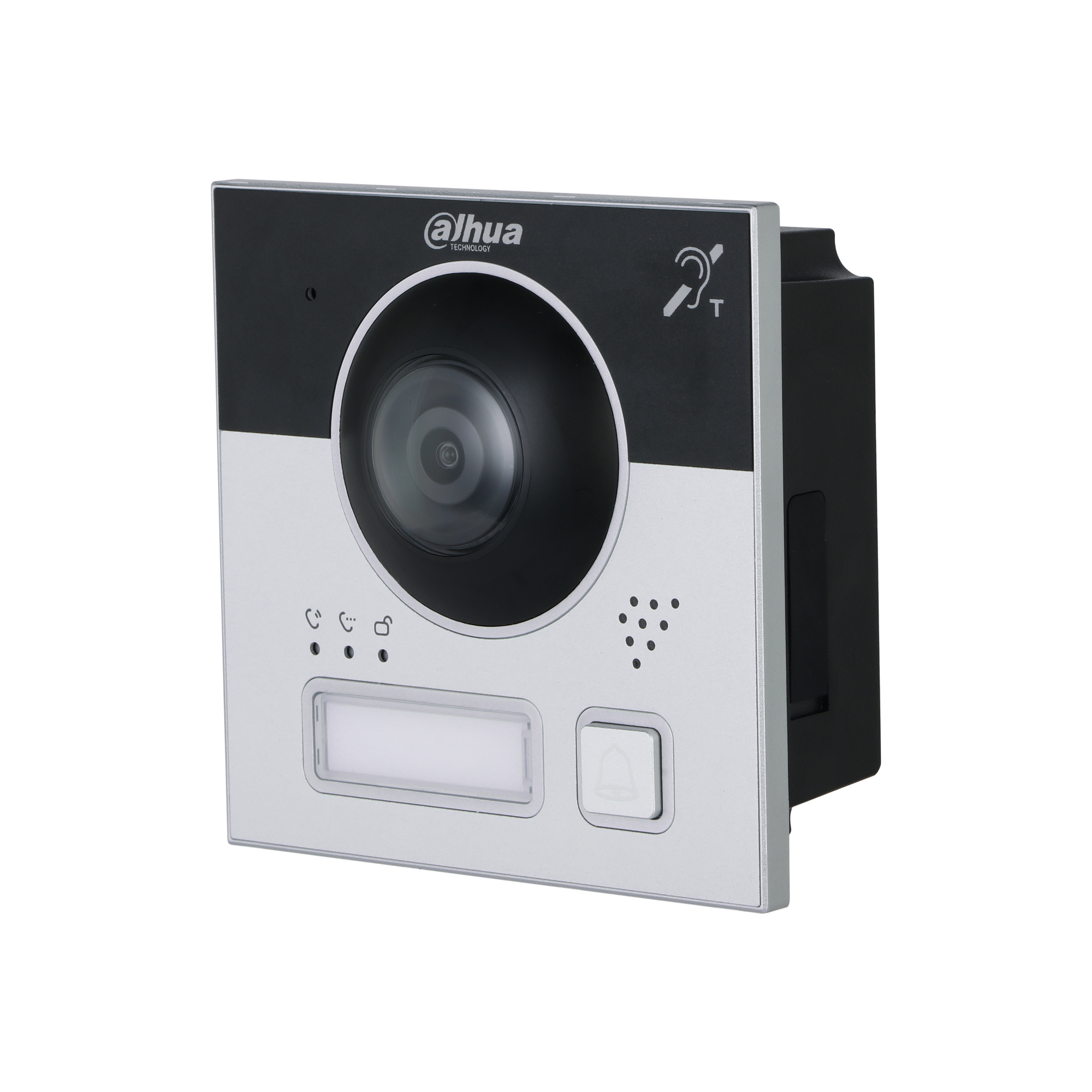

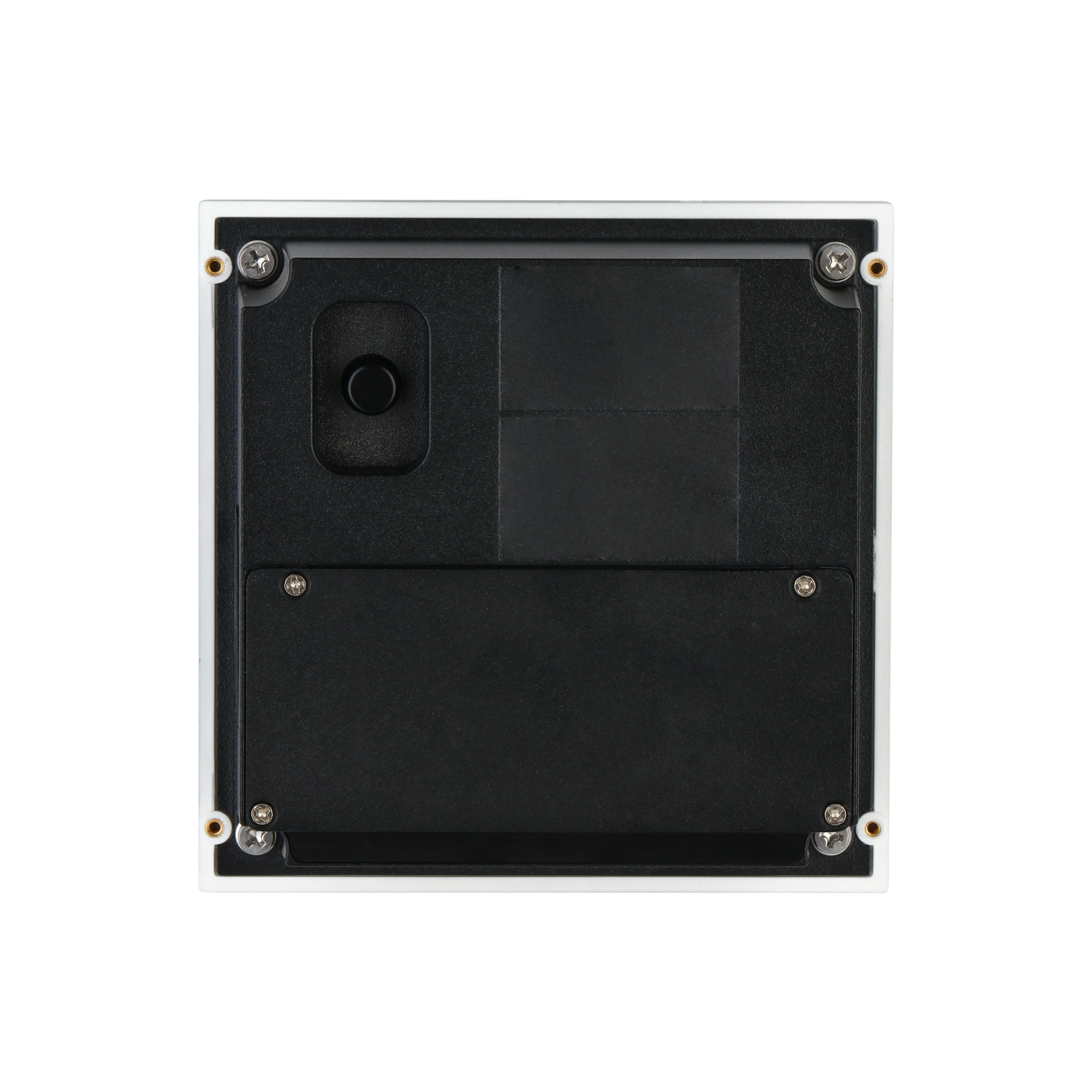

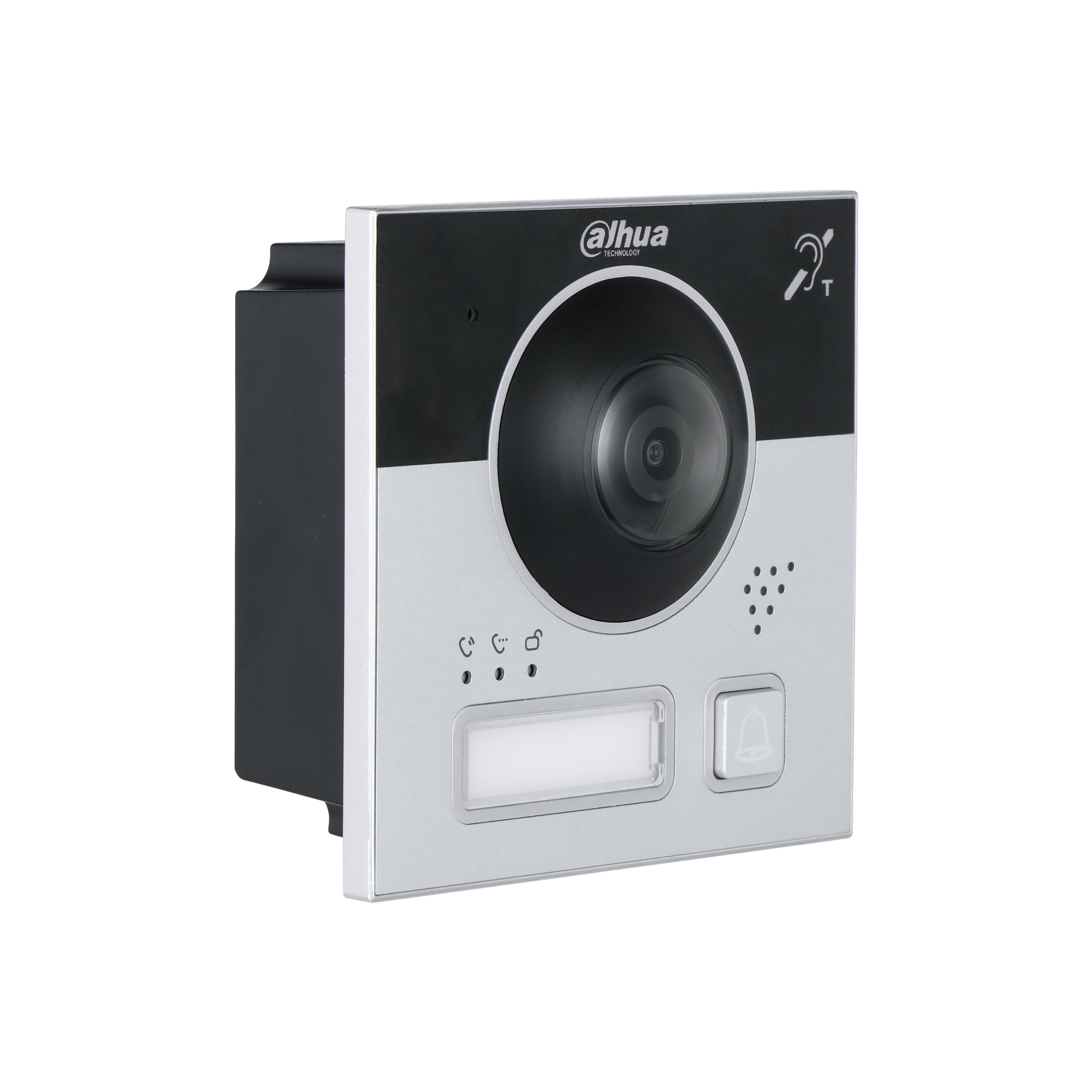

Name: 2-Wire Hybrid Modular Apartment Door Station
Brand: Dahua
SKU: VTO4103F-I1

Sets up video door communication at the apartment entrance over a 2-wire line.

It is a 2-wire hybrid modular apartment door station. Call button, keypad, fingerprint and card reader modules attach to the camera module, and it carries IP65 protection.

2 MP CMOSCamera sensor

168.6°Horizontal field of view

IP65Protection Grade

IK07Impact rating

-40 °C ~ +60 °COperating Temperature

≤12 WPower consumption

Key features

Induction loop for the hearing impairedThe built-in induction loop passes speech directly to hearing aid users.

Low-light wide angle cameraThe 1/2.5 inch 2 MP CMOS camera shows the doorway at a 168.6° horizontal angle in low light.

2-wire communicationIt runs over an analog 2-wire line and connects to existing wiring.

Modular expansionCall button, keypad, fingerprint and card reader modules attach to the main unit.

Unlock optionsIt supports IC/ID card, password, fingerprint and remote unlock methods.

Surface and flush mountingIt supports surface and flush mounting, and the tamper alarm reports interference with the housing.

System and Core Specifications

Main Processor / OS

Embedded Processor / Embedded Linux Operating System

Camera / Sensor Type

1/2.5" 2 MP CMOS; 120 dB WDR; 3D NR

Field of View (FoV)

Horizontal: 168.6°; Vertical: 87.1°; Diagonal: 176.7°

Video Resolution

P: 960 (H) × 576 (V); N: 960 (H) × 480 (V)

Audio Mode / Output

Two-way audio (half-duplex); Built-in speaker

Function and Performance

Communication Mode

Analog 2-wire

Unlock Mode

IC/ID card; Password; Fingerprint; Remote unlock (Requires sub-module)

Video Messages

Supported (Requires SD card in the VTH monitor)

Protection & Alarm

IP65; Tamper Alarm; IK07 rating (on casing)

Power Consumption

≤4 W (Standby); ≤12 W (Working); Output: 1-channel 12V 1A

Modules and Descriptions

DHI-VTO4103F-I1

Camera module (Main unit)

DHI-VTO4103F-MB1/2/5

One/Two/Five button call module

DHI-VTO4103FB-MK

Keyboard module (Black)

DHI-VTO4103F-MF / MR / MR1

Fingerprint module / Card reader module (IC / ID)
