Dahua

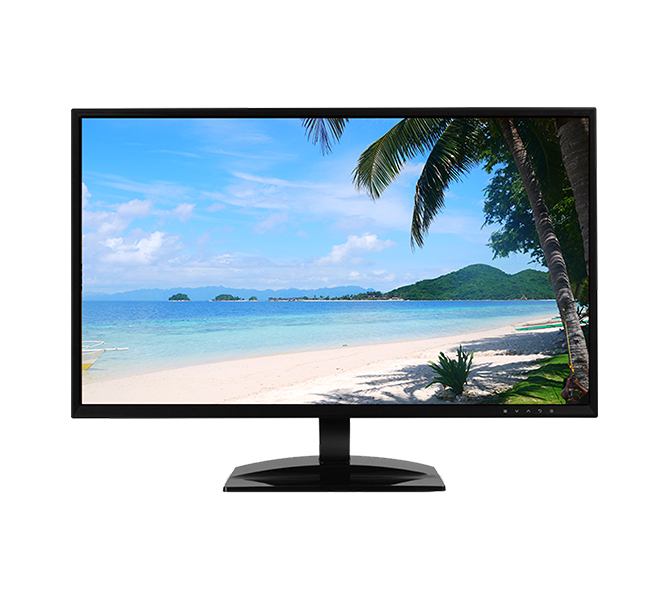

21.45’’ Monitor

Name: 21.45’’ Monitor
Brand: Dahua
SKU: LM22-C200

Stock Code: LM22-C200

A 21.45-inch screen for desks that care about color accuracy

A 21.45-inch VA panel runs at 1920×1080 and 75 Hz. Adaptive Sync cuts down on stutter and tearing, and a low blue light mode eases long sessions.

21.45"Screen Size

1920×1080Resolution

75 HzRefresh Rate

3000:1Contrast Ratio

250 nitsBrightness

4 msResponse Time

Key specifications

Panel21.45-inch VA panel, E-LED backlight, 16:9 aspect ratio; 99% sRGB, 85% NTSC, 85% DCI-P3 and 85% Adobe RGB color support.

Viewing Angle178° viewing angle both horizontally and vertically.

Input PortVGA ×1 and HDMI 1.4 ×1.

AudioThe panel carries 1 × audio out.

Power SupplyDC 12 V, 2 A adapter; 19 W typical, 24 W maximum and 0.5 W standby draw.

Setup75×75 mm VESA mounting and a -5° to 15° tilt range; HDMI cable, adapter and stand in the box.

Display
Screen Size	21.45"
Panel Type	VA
Aspect Ratio	16:9
Resolution	1920×1080
Backlight	E-LED
Brightness/Luminance	250 nits (typ.)
Contrast Ratio	3000:1
Color Support	99% sRGB, 85% NTSC, 85% DCI-P3, 85% Adobe RGB
Viewing Angle (H/V)	178° (H) / 178° (V)
Response Time	4 ms (OD)
Refresh Rate	75 Hz
Signals
Interface	VGA×1, HDMI 1.4×1, Audio out×1
General
Power Supply	DC 12V 2A
Power Type	Adapter
Consumption (Standard)	TYP. 19 W, MAX. 24 W
Consumption (Standby)	<0.5 W
Net Weight	2.5 kg
Gross Weight	3.74 kg
Tilt Angles	-5°±2° / 15°±2°
Swivel (angle)	N/A
Pivot (angle/direction)	N/A
Height Adjustment	N/A
VESA	75×75 mm
Dimension (W×H×D)	495.8 × 286.3 × 36.7 mm (without stand)
Package (W×H×D)	554 × 120 × 353 mm
Humidity	10% – 85%
Temperature	0° – 40° (32°F – 104°F)
Accessory
Standard	HDMI cable, Adapter, Stand

Datasheet

LM22-C200

pdf5/15/2025

Kullanım Kılavuzu

LM22-C200

pdf5/15/2025

Teknik Çizim

LM22-C200

pdf5/15/2025

Fotoğraf

LM22-C200

png5/15/2025

LM22-C200

png5/15/2025
