Industrial 24-Port 10/100/1000Mbps with 4 Shared SFP Managed Gigabit Switch

Environmentally Hardened Design for Industrial Networks

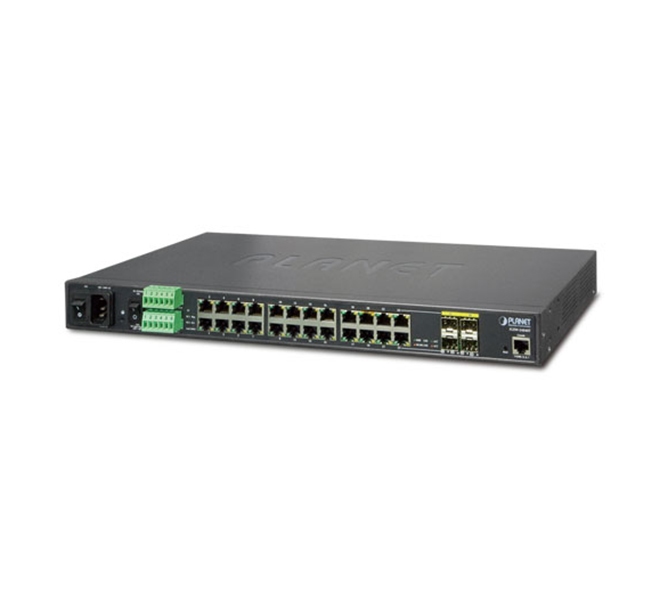

The PLANET IGSW-24040T is an environmentally hardened Industrial Managed Ethernet Switch with high Port-density, Gigabit Fiber link capability and 19” rack-mountable design. It is specifically designed to operate stably in electrically harsh and the toughest environment under extended wide operating temperature range. The IGSW-24040T is equipped with advanced management functions and provides 24 10/100/1000Base-T copper ports and 4 shared 1000Base-S/LX SFP slots delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 48Gbps in the temperature range from -40 to 75 Degree C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial network and building automation LAN for catering to increasing bandwidth demands such as IP video surveillance. The IGSW-24040T is the most reliable choice for highly-managed and Fiber Ethernet application in Industrial network.

¦ Extended Operating Temperature:From -40 to 75 Degree C
¦ Robust Industrial Protection:IP30 metal case and 19” rack-mountable design
¦ Ethernet Protection:6KV DC ESD protection
¦ Power Redundant:1+2 RPS design, supports one 100~240V AC and dual 36~72V DC power
input
¦ Redundant Ethernet Network:STP, RSTP and MSTP to greatly improve redundant data backup
and guarantee network resilience
¦ Flexible Fiber uplink capability:Compatible with 1000Base-SX/LX and 100Base-FX SFP
transceiver

Layer 2 / Layer 4 Full-functioned Managed Switch for Building Automation Networking
The IGSW-24040T Industrial Managed Ethernet Switch is perfect for applications in the factory data centers and distributions. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and Secure Management features to protect customer’s industrial network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

Cost-effective IPv6 Managed Gigabit Switch Solution for Industrial Ethernet
The current IPv4 network infrastructure is not capable enough to provide IP Address to each single user / client. The situation forces the ISP to build up the IPv6 (Internet Protocol version 6) network infrastructure speedily. The iGSW-24040T is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with original network structure. With easy and friendly management interfaces and plenty of management functions included, the IGSW-24040T Managed Switch is the best choice for you to build the IPv6 FTTx edge service and for Industrial applications to connect with IPv6 network.

Dual Redundant Power to Ensure Continuous Operation
The IGSW-24040T particularly supports both AC and DC redundant power to ensure reliable and continuous operation in Industrial Network. Generally, a regular Industrial switch may have two DC powers for redundancy; the IGSW-24040T provides one more power- “Alternating Current” (AC) for stronger redundant application besides providing redundant DC Power.

The IGSW-24040T is equipped with one 100~240V AC power supply unit and one additional DC 36~72V power supply unit for redundant power supply installation. The Redundant power systems are provided to enhance the reliability with either 100~240V AC power or DC 36~72V power supply unit and specifically designed to fulfill the demands of high tech facilities in handling the highest power integrity. In addition, with the 36~72V DC power supply implemented, the IGSW-24040T can be perfectly applied as the telecom level device which requires constant stable operation at the harsh electronic room.

Powerful Security.
The Industrial Managed Giagbit Switch offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms also comprise of port-based 802.1x and MAC-based user and device authentication. The port-security is effective in limiting the numbers of clients pass through, so that the network administrators can now construct highly secured corporate networks with time and effort considerably less than before.
