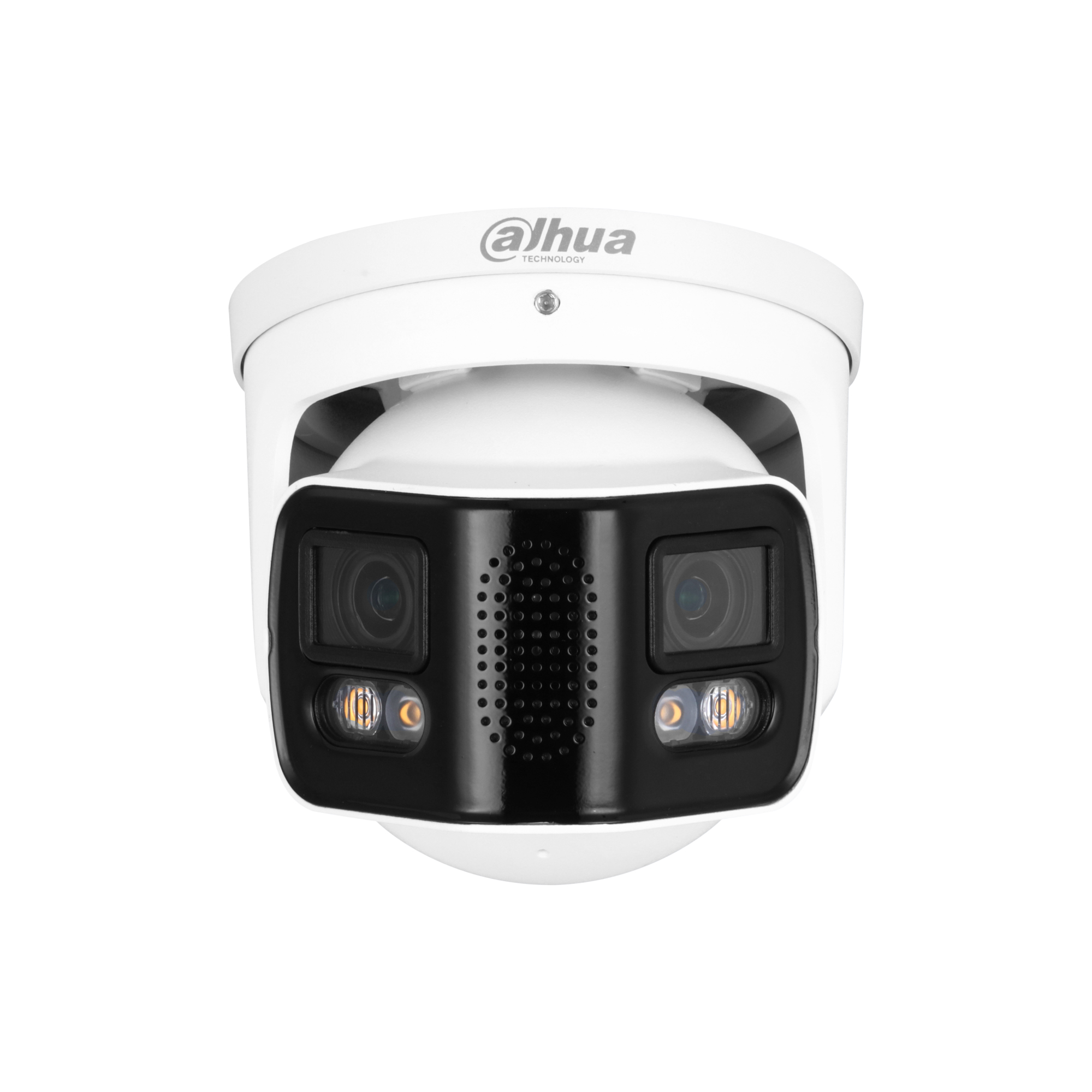

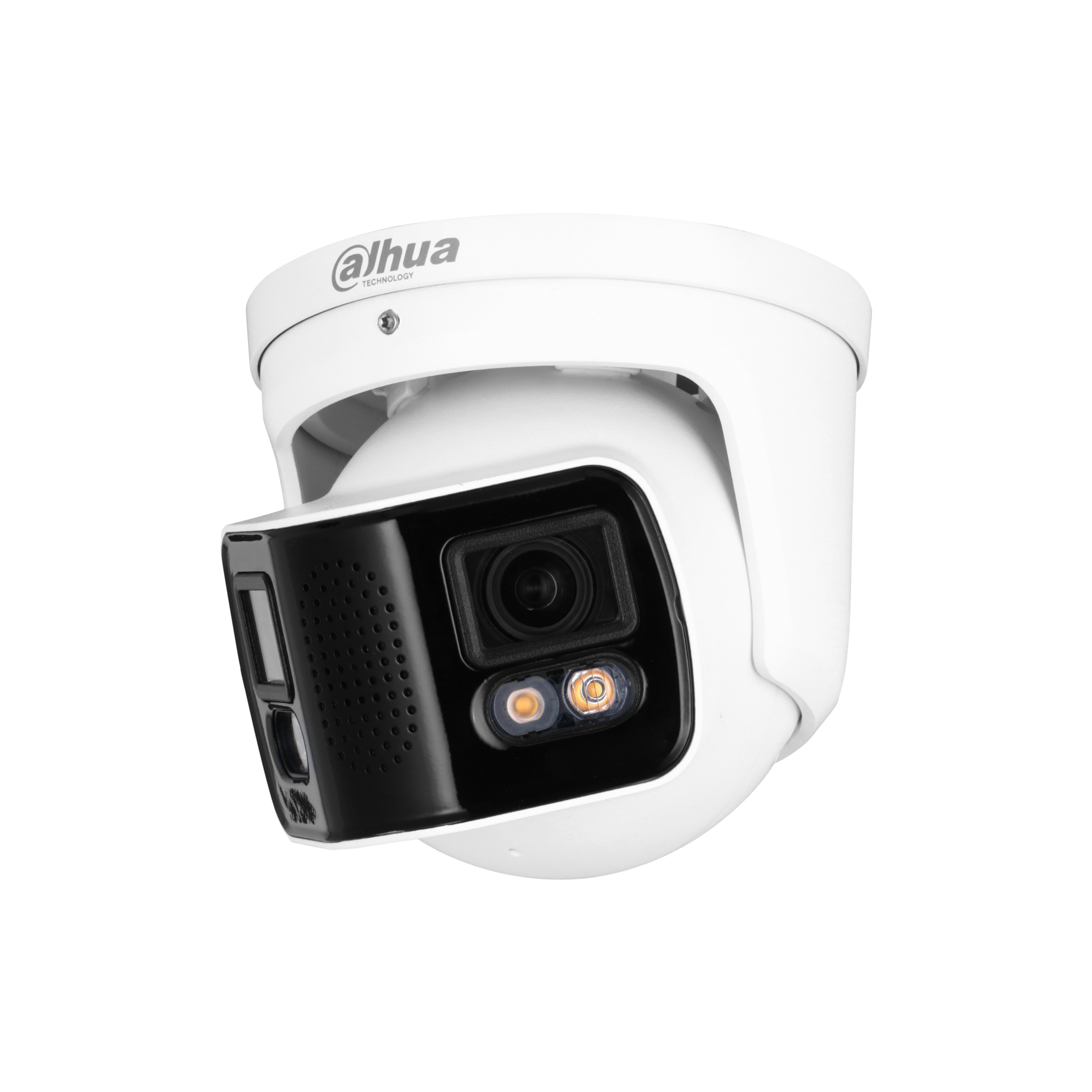

Stock Code: IPC-PDW5849-A180-E2-ASTE
| Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | Dual 1/1.8" CMOS | ||||||||||
| Max. Resolution | 4096 (H) × 1800 (V) | ||||||||||
| ROM | 128 MB | ||||||||||
| RAM | 1 GB | ||||||||||
| Scanning System | Progressive | ||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||
| Min. Illumination | 0.0005 lux@F1.0 (Color, 30 IRE) 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||||||||
| S/N Ratio | >56 dB | ||||||||||
| Illumination Distance | 40 m (131.23 ft) | ||||||||||
| Illuminator On/Off Control | Auto | ||||||||||
| Illuminator Number | 4 (Warm light) | ||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 4°–90° Rotation: 0°–360° | ||||||||||
| Lens | |||||||||||
| Lens Type | Fixed-focal | ||||||||||
| Lens Mount | M16 | ||||||||||
| Focal Length | 3.6 mm | ||||||||||
| Field of View | H: 180°±10° V: 48° | ||||||||||
| Max. Aperture | F1.0 | ||||||||||
| Iris Control | Fixed | ||||||||||
| Close Focus Distance | 3.6 m (11.81 ft) | ||||||||||
| DORI Distance |
| ||||||||||
| Intelligence | |||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||
| Heat Map | Yes | ||||||||||
| Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. | ||||||||||
| Video | |||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||||
| AI Coding | AI H.265; AI H.264 | ||||||||||
| Video Frame Rate | WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) Sub stream: 1024 × 452 @ (1–25 fps) Third stream: 1920 × 832 @ (1–25 fps) WDR On: Main stream: 4096 × 1800 @ (1–20 fps) Sub stream: 1024 × 452 @ (1–20 fps) Third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||||||
| Stream Capability | 3 streams | ||||||||||
| Resolution | 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452) | ||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||
| Video Bit Rate | H.264: 9 kbps–8192 kbps H.265: 9 kbps–8192 kbps | ||||||||||
| Day/Night | Color/B/W | ||||||||||
| BLC | Yes | ||||||||||
| HLC | Yes | ||||||||||
| WDR | 140 dB | ||||||||||
| Scene Self-adaptation (SSA) | Yes | ||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||||||
| Gain Control | Auto | ||||||||||
| Noise Reduction | 3D NR | ||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||||
| Privacy Masking | 4 areas | ||||||||||
| Defog | Yes | ||||||||||
| Audio | |||||||||||
| Built-in MIC | Yes | ||||||||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||||||||
| Alarm | |||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception | ||||||||||
| Network | |||||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||||
| SDK and API | Yes | ||||||||||
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade | ||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour | ||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone | ||||||||||
| User/Host | 20 (Total bandwidth: 80 M) | ||||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||||||||
| Browser | IE: IE 11 and later Chrome Firefox | ||||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||||
| Mobile Client | iOS; Android | ||||||||||
| Certification | |||||||||||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | ||||||||||
| Port | |||||||||||
| Audio Input | 1 channel (RCA port) | ||||||||||
| Audio Output | 1 channel (RCA port) | ||||||||||
| Alarm Input | 1 channel in: 5 mA 3 V–5 VDC | ||||||||||
| Alarm Output | 1 channel out: 300 mA 12 VDC | ||||||||||
| Power | |||||||||||
| Power Supply | 12 VDC (±30%)/PoE+ (802.3at)/ePoE | ||||||||||
| Power Consumption | Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5 W (12 VDC); 11.8 W (PoE) | ||||||||||
| Environment | |||||||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||
| Operating Humidity | ≤95% | ||||||||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||
| Protection | IP67 | ||||||||||
| Structure | |||||||||||
| Casing | Metal | ||||||||||
| Product Dimensions | Φ122 mm × 131.9 mm (Φ4.80" × 5.19") | ||||||||||
| Net Weight | 990 g (2.18 lb) | ||||||||||
| Gross Weight | 1150 g (2.54 lb) | ||||||||||
