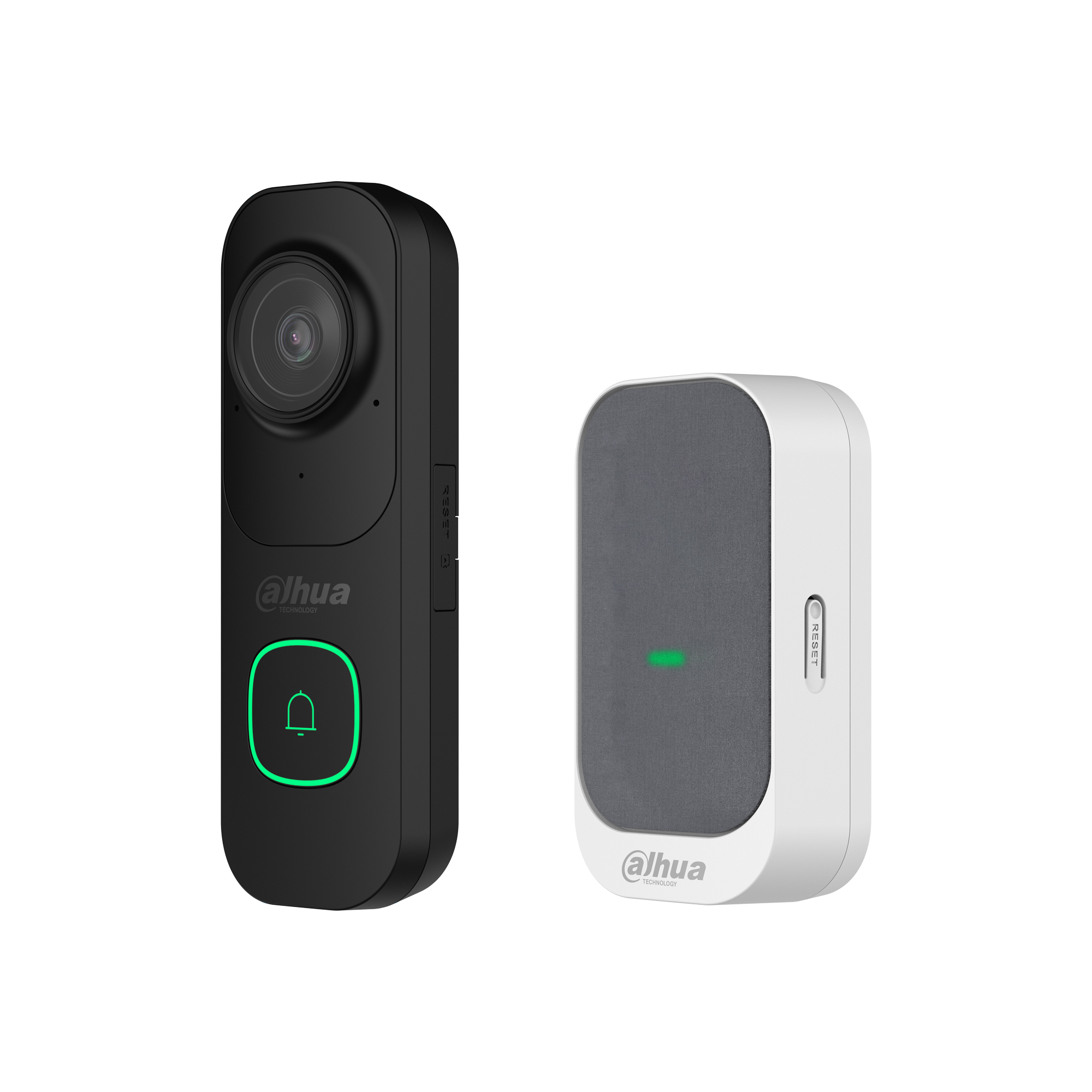

Stock Code: VDKP01-BG
| Camera & Video Features (Doorbell) | |
|---|---|
| Image Sensor / Max. Resolution | 1/3" CMOS / 2560 (H) × 1440 (V), 15 fps |
| Lens / Focal Length / Max. Aperture | Fixed-focal / 2.3 mm / F2.2 |
| Field of View / Night Vision | H: 120°; V: 66°; D: 143° / Up to 10 m IR distance (2 IR LED) |
| AI Detection | Human Detection and Vehicle Detection supported |
| Network & Audio Features | |
| Wireless / Pairing | Wi-Fi IEEE 802.11b/g/n/ax (2.4 GHz); Bluetooth pairing |
| Audio / Compression | Built-in mic & speaker; two-way audio / G.711a; G.711Mu; PCM |
| Video Compression | H.265; H.264; H.264H; H.264B |
| Management Software | DMSS App (Android & iOS) |
| Physical & Technical Parameters | |
| Power Supply (Doorbell / Chime) | Doorbell: USB (5 VDC ±5%, 2 A) or binding post (10–24 VDC / 14–24 VAC) | Chime: 100–240 VAC 50/60 Hz |
| Ingress Protection / Material | IP65 (Doorbell) / Plastic |
| Dimensions (Doorbell) | 135 mm × 45 mm × 24.2 mm |
| Storage / Operating Temperature | Micro SD card (max. 256 GB) / –20 °C to +55 °C |
