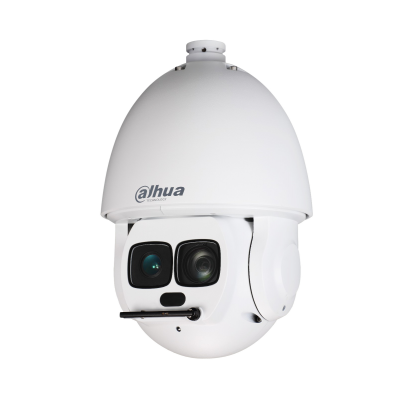

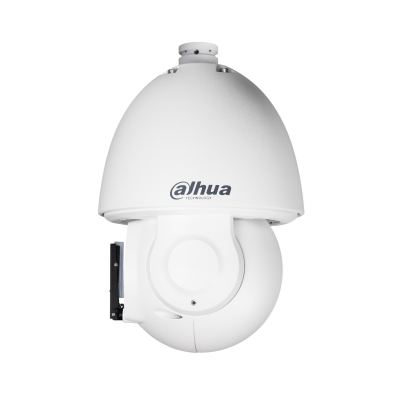

Lights distant ground with a laser and follows the target on its own

A 2 MP laser-illuminated PTZ camera for wide, dark sites. The 45x optical zoom pulls in distant points and the laser illuminator opens up the scene at up to 550 m.

2 MPResolution

45xOptical zoom

550 mIllumination distance

120 dBWDR

IP67Protection Grade

Key features

45x

Reaches the far scene

Focuses between 3.95 mm and 177.7 mm.

550m

Laser illumination

1 laser and 2 infrared illuminators light the scene at up to 550 m.

120dB

Backlight balance

Balances bright and dark areas in the same frame.

300presets

Ready positions

8 tours and 5 patterns define the patrol route.

512GB

Edge recording

Records onto a Micro SD card.

IN DAILY USE

Auto trackingFollows a moving target and keeps it in the middle of the frame.

Face and vehicle analyticsDetects faces and vehicles separately and extracts their attributes.

Built-in wiperWipes rain and dust off the front glass and keeps the view clear.

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1 s – 1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR/laser light on)

Illumination Distance

550 m (1804.46 ft)

Illuminator On/Off Control

Zoom prio; Manual; Auto; Off

Illuminator Number

2 (IR); 1 (laser)

Wiper

Yes

Lens

Focal Length

3.95 mm – 177.7 mm

Max. Aperture

F1.6 – F4.95

Field of View

H: 68° – 2.3°; V: 41.7° – 1.2°; D: 75.1° – 2.4°

Optical Zoom

45×

Focus Control

Auto; Semi-auto; Manual

Close Focus Distance

0.1 m – 1 m (0.33 ft – 3.28 ft)

Iris Control

Auto; Manual; Iris prio

DORI Distance

Detect	Observe	Recognize	Identify
2451.7 m (8043.64 ft)	968.4 m (3177.16 ft)	490.3 m (1608.60 ft)	245.2 m (804.46 ft)

PTZ

Pan/Tilt Range

Pan: 0° – 360° endless; Tilt: –20° – +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s – 200°/s; Tilt: 0.1°/s – 120°/s

Preset Speed

Pan: 240°/s; Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

PTZ Protocol

DH-SD; Pelco-P/D (Auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality face snapshots. Attribute extraction of motor vehicle is also supported, where 10 attributes can be detected

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

Face Detection

Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cut out one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots

Auto Tracking

Yes

SMD

SMD4.0

Quick Pick

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p@(1-50/60 fps); Sub stream 1: D1/VGA/CIF@(1-25/30 fps); Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 184 Kbps – 9472 Kbps; H.265: 73 Kbps – 5632 Kbps

Day/Night

Color; B/W; Auto; Electronic

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto; Indoor; Outdoor; Tracking; Manual; Sodium lamp; Natural light; Street lamp

Gain Control

Auto; Manual; Gain prio

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: CN211FB1 001 and 4789976478-2.5-1; FCC: 4790130386-2

Port

Alarm I/O

7/2

Audio I/O

1/1

RS-485

1 (baud rate: 1200 bps – 115200 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; Recording; Send email; Preset; Tour; Pattern; Alarm digital input

Alarm Event

Motion/tampering detection; Audio detection; Network disconnection detection; IP conflict detection; Memory card state detection; Memory space detection

Power

Power Supply

36 V DC, 2.23 A ± 25%; HI-PoE

Power Consumption

Basic: 15 W; Max.: 45 W (illuminator + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Protection

TVS 6000 V lightning proof; surge protection; voltage transient protection; IP67

Structure

Product Dimensions

382 mm × Φ239.8 mm (15.04" × Φ9.44")

Net Weight

6.8 kg (14.99 lb)

Gross Weight

9.2 kg (20.28 lb)
