Name: 2MP H.265 WDR Starlight Bullet IP Kamera
Brand: ORing
SKU: OR-D2025FD-A-IR

Camera
Image Sensor	1/2.8" 2 Megapixel Progressive Scan CMOS
Effective Pixels	1920(H) x 1080(V)
RAM/ROM	256MB/32MB
Scanning System	Progressive
Electronic Shutter Speed	Auto / Manual, 1/3(4)~1/100000 s
Minimum Illumination	0.009 Lux/F2.0 (Color, 1/3 s, 30IRE); 0.07 Lux/F2.0 (Color, 1/30 s, 30IRE); 0 Lux/F2.0 (IR on)
S/N Ratio	More than 50 dB
IR Distance	Up to 80 m (262 ft)
IR On/Off Control	Auto / Manual
IR LED Number	2
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	3.6 mm (6 mm optional)
Max. Aperture	F2.0 (F2.0)
Angle of View	H: 87° (51°), V: 48° (30°)
Optical Zoom	N/A
Focus Control	Fixed
Close Focus Distance	N/A
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan: 0°~360°; Tilt: 0°~87°; Rotation: 0°~360°
Intelligence
IVS	Tripwire, Intrusion, Abandoned/Missing Object
Advanced Intelligent Functions	Face Detection
Video
Compression	H.265+/H.265/H.264+/H.264
Streaming Capability	3 Streams
Resolution	1080P (1920×1080)/1.3M (1280×960)/720P (1280×720)/D1 (704×576/704×480)/VGA (640×480)/CIF (352×288/352×240)
Frame Rate	Main Stream: 1080P (1~50/60 fps)
	Sub Stream: D1 (1~50/60 fps)
	Third Stream: 1080P (1~25/30 fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24~9472 Kbps; H.265: 14~5632 Kbps
Day/Night	Auto (ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR (120dB)
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zones, Rectangle)
Region of Interest (ROI)	Off / On (4 Zones)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Defog	N/A
Digital Zoom	16x
Flip	0°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Areas, Rectangle)
Audio
Compression	G.711a / G.711Mu / AAC / G.726
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Compatibility	ONVIF, PSIA, CGI
Streaming Management	Unicast / Multicast
Max. User Access	10 users / 20 users
Storage	NAS; local PC; Micro SD card 128GB for instant recording
Web Interface	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smartphone	iOS, Android
Certifications
Certifications	CE (EN 60950:2000); UL: UL60950-1; FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	1/1 Channel in/out
RS485	N/A
Alarm	1 Channel In: 5mA 5VDC; 1 Channel Out: 300mA 12VDC
Power
Power Supply	DC12V, PoE (802.3af) (Class 0)
Power Consumption	<7.5W
Environmental
Operating Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / less than 95% relative humidity
Storage Conditions	-30°C ~ +60°C (-22°F ~ +140°F) / less than 95% relative humidity
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal
Dimensions	241.8mm×90.4mm×90.3mm (9.52"×3.56"×3.56")
Net Weight	0.61 kg (1.35 lb)
Gross Weight	0.8 kg (1.77 lb)
Gross Weight	0.8 kg (1.77 lb)

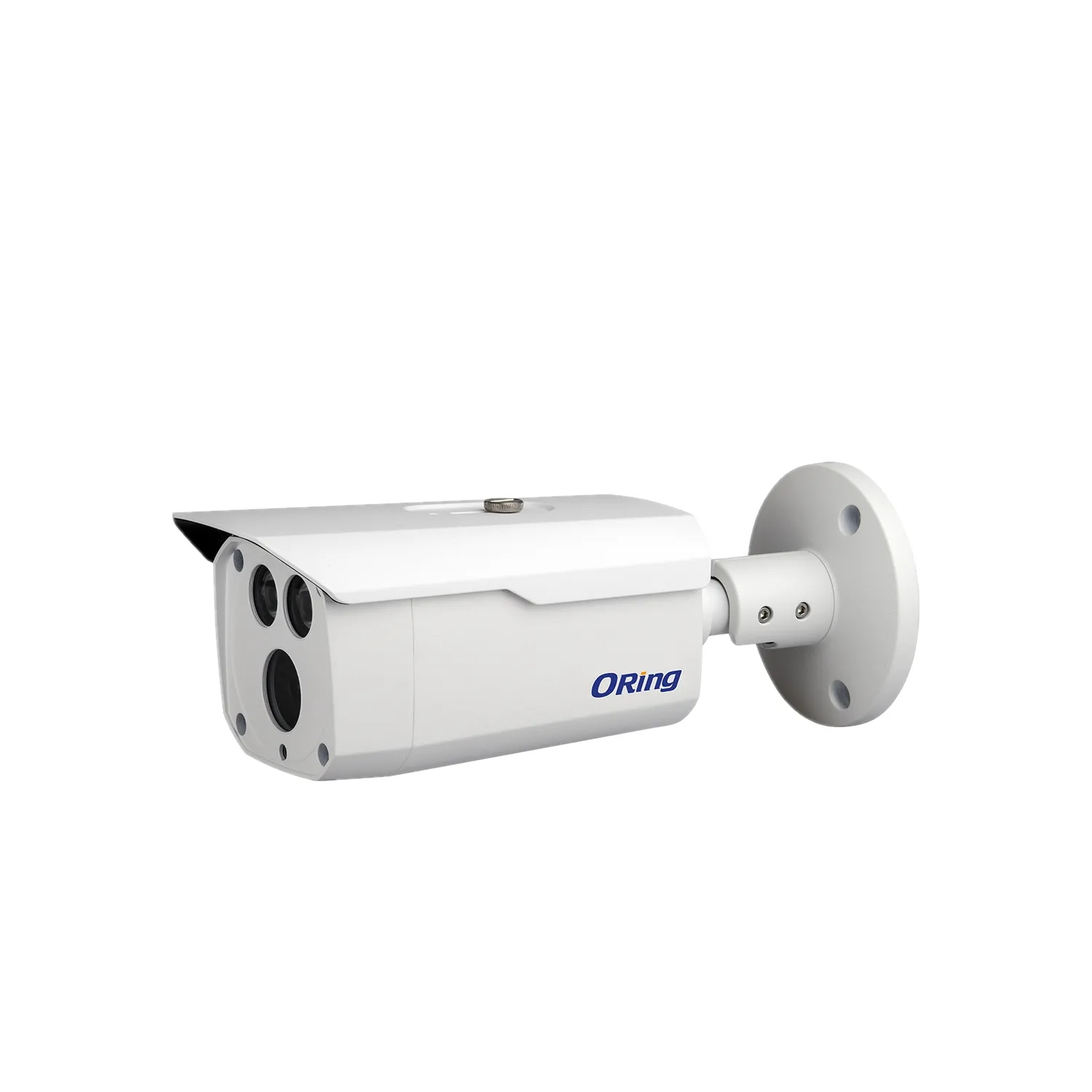

An outdoor bullet camera that keeps color detail even in darkness.

A 2 MP fixed-lens bullet IP camera for outdoor surveillance. The Starlight sensor, wide dynamic range and intelligent video analytics produce clear images under difficult lighting conditions.

1920×1080Max. Resolution

1/2.8" CMOSSensor

3.6 mmFocal Length

80 mIR LED Distance

H.265+/H.265/H.264+/H.264Video Compression

IP67Protection Grade

Key features

0.009lux

Starlight low-light performance

The sensor keeps color detail in near-dark scenes.

120dB

Wide dynamic range

It balances the bright and dark areas of the same frame.

80m

Smart IR illumination

Infrared illumination makes distant scenes visible at night.

16x

Digital zoom

The operator moves in on scene detail from the live image.

128GB

Local recording

A micro SD card keeps footage in the camera during a network outage.

7.5W

PoE input power

A single Ethernet cable carries both data and power to the camera.

DAILY USE IN THE FIELD

Intelligent video analyticsTripwire, intrusion and abandoned-object rules alert the operator.

Face detectionThe camera flags faces in the scene as a separate event.

Outdoor housingThe metal casing seals out water and dust and runs outdoors all year.

Usage AreasOutdoor surveillance systems·Perimeter security·Field monitoring points

Camera

Image Sensor

1/2.8" 2 Megapixel Progressive Scan CMOS

Effective Pixels

1920(H) x 1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual, 1/3(4)~1/100000 s

Minimum Illumination

0.009 Lux/F2.0 (Color, 1/3 s, 30IRE); 0.07 Lux/F2.0 (Color, 1/30 s, 30IRE); 0 Lux/F2.0 (IR on)

S/N Ratio

More than 50 dB

IR Distance

Up to 80 m (262 ft)

IR On/Off Control

Auto / Manual

IR LED Number

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6 mm (6 mm optional)

Max. Aperture

F2.0 (F2.0)

Angle of View

H: 87° (51°), V: 48° (30°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0°~360°; Tilt: 0°~87°; Rotation: 0°~360°

Intelligence

IVS

Tripwire, Intrusion, Abandoned/Missing Object

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P (1920×1080)/1.3M (1280×960)/720P (1280×720)/D1 (704×576/704×480)/VGA (640×480)/CIF (352×288/352×240)

Frame Rate

Main Stream: 1080P (1~50/60 fps)

Sub Stream: D1 (1~50/60 fps)

Third Stream: 1080P (1~25/30 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~9472 Kbps; H.265: 14~5632 Kbps

Day/Night

Auto (ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR (120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zones, Rectangle)

Region of Interest (ROI)

Off / On (4 Zones)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Areas, Rectangle)

Audio

Compression

G.711a / G.711Mu / AAC / G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Compatibility

ONVIF, PSIA, CGI

Streaming Management

Unicast / Multicast

Max. User Access

10 users / 20 users

Storage

NAS; local PC; Micro SD card 128GB for instant recording

Web Interface

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smartphone

iOS, Android

Certifications

CE (EN 60950:2000); UL: UL60950-1; FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 Channel in/out

RS485

N/A

Alarm

1 Channel In: 5mA 5VDC; 1 Channel Out: 300mA 12VDC

Power

Power Supply

DC12V, PoE (802.3af) (Class 0)

Power Consumption

<7.5W

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / less than 95% relative humidity

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / less than 95% relative humidity

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

241.8mm×90.4mm×90.3mm (9.52"×3.56"×3.56")

Net Weight

0.61 kg (1.35 lb)

Gross Weight

0.8 kg (1.77 lb)

Gross Weight

0.8 kg (1.77 lb)

2MP H.265 WDR Starlight Bullet IP Kamera

Datasheet

OR-D2025FD-A-IR

TR

Similar Products

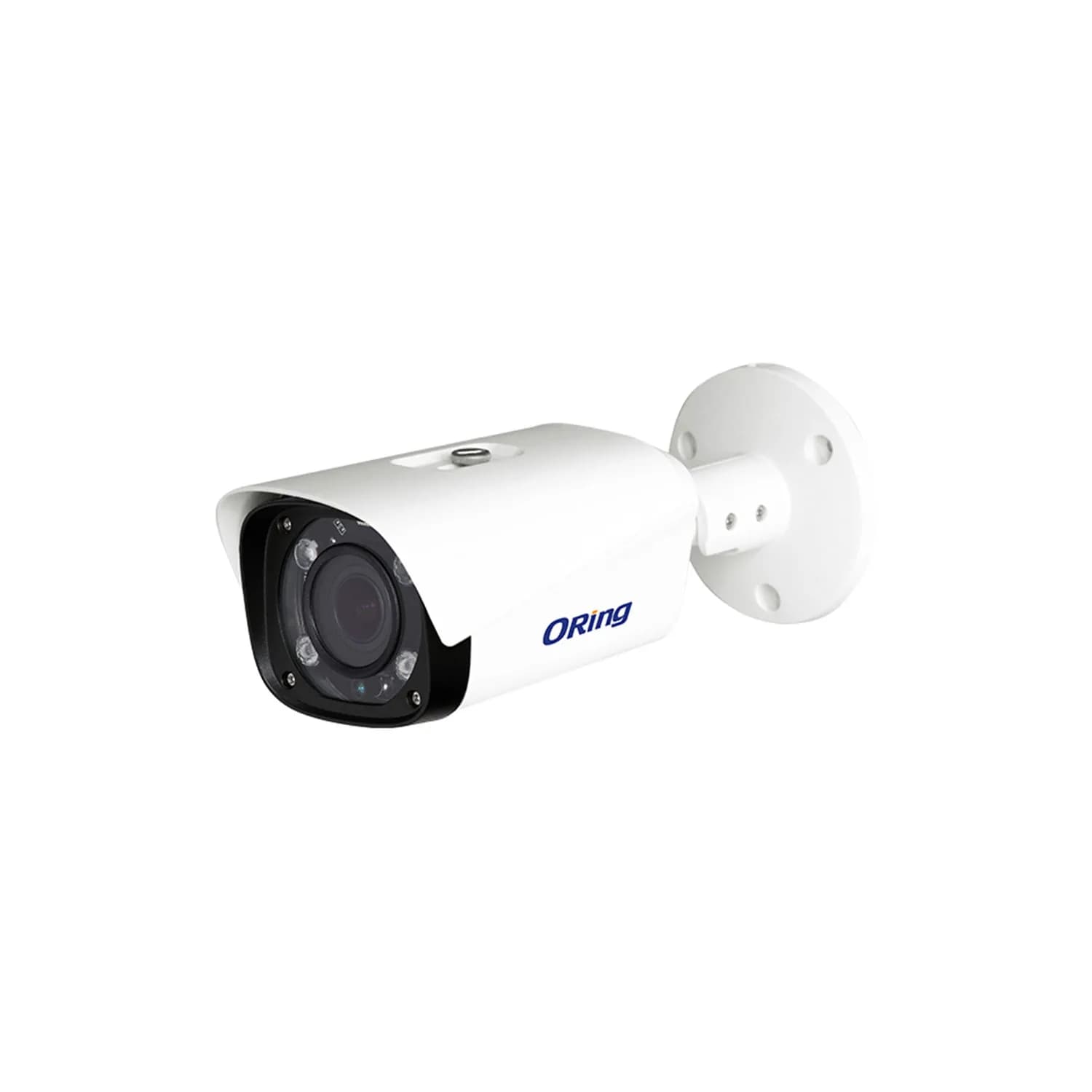

2MP WDR IR Mini Bullet IP Kamera

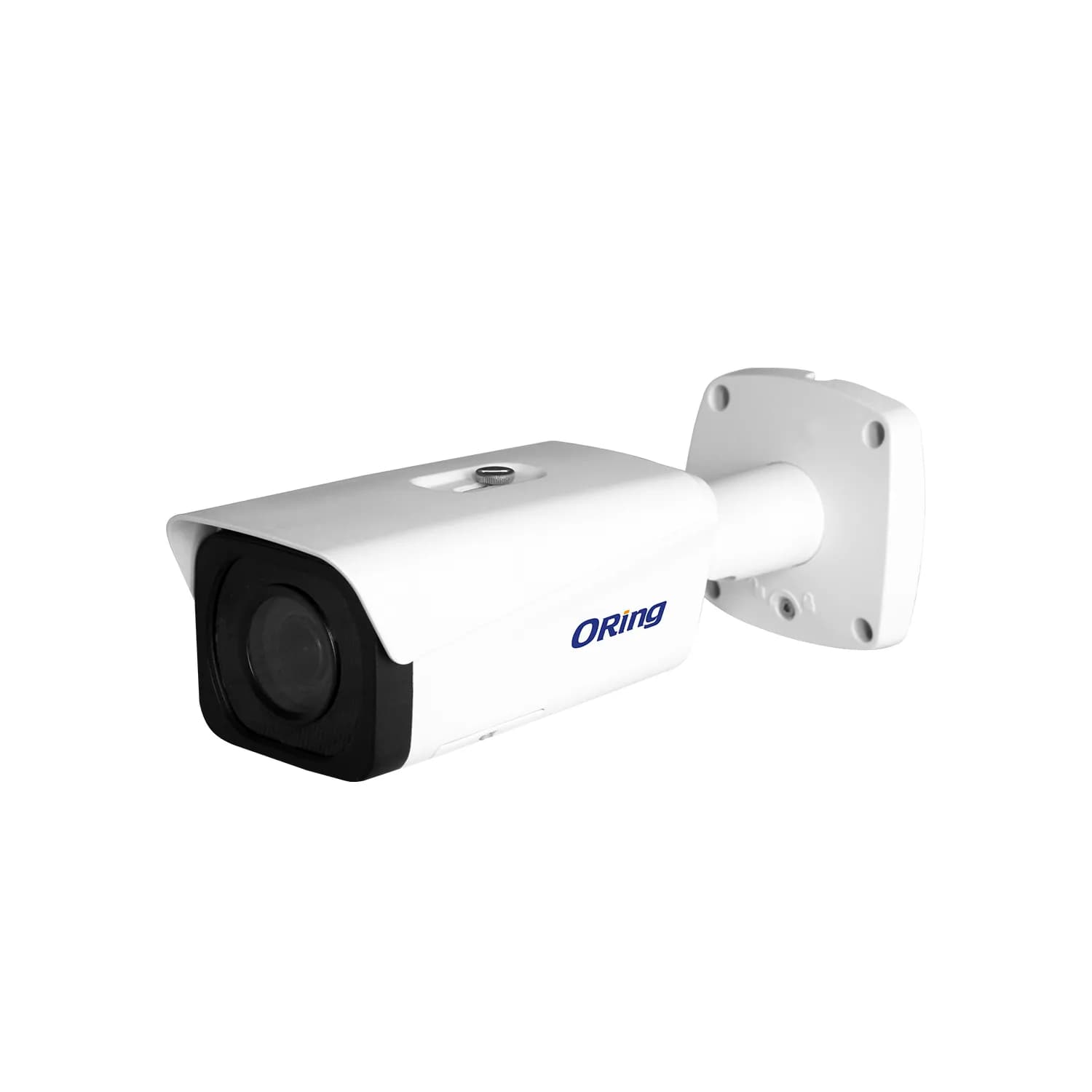

2MP WDR IR Bullet Motorize IP Kamera
