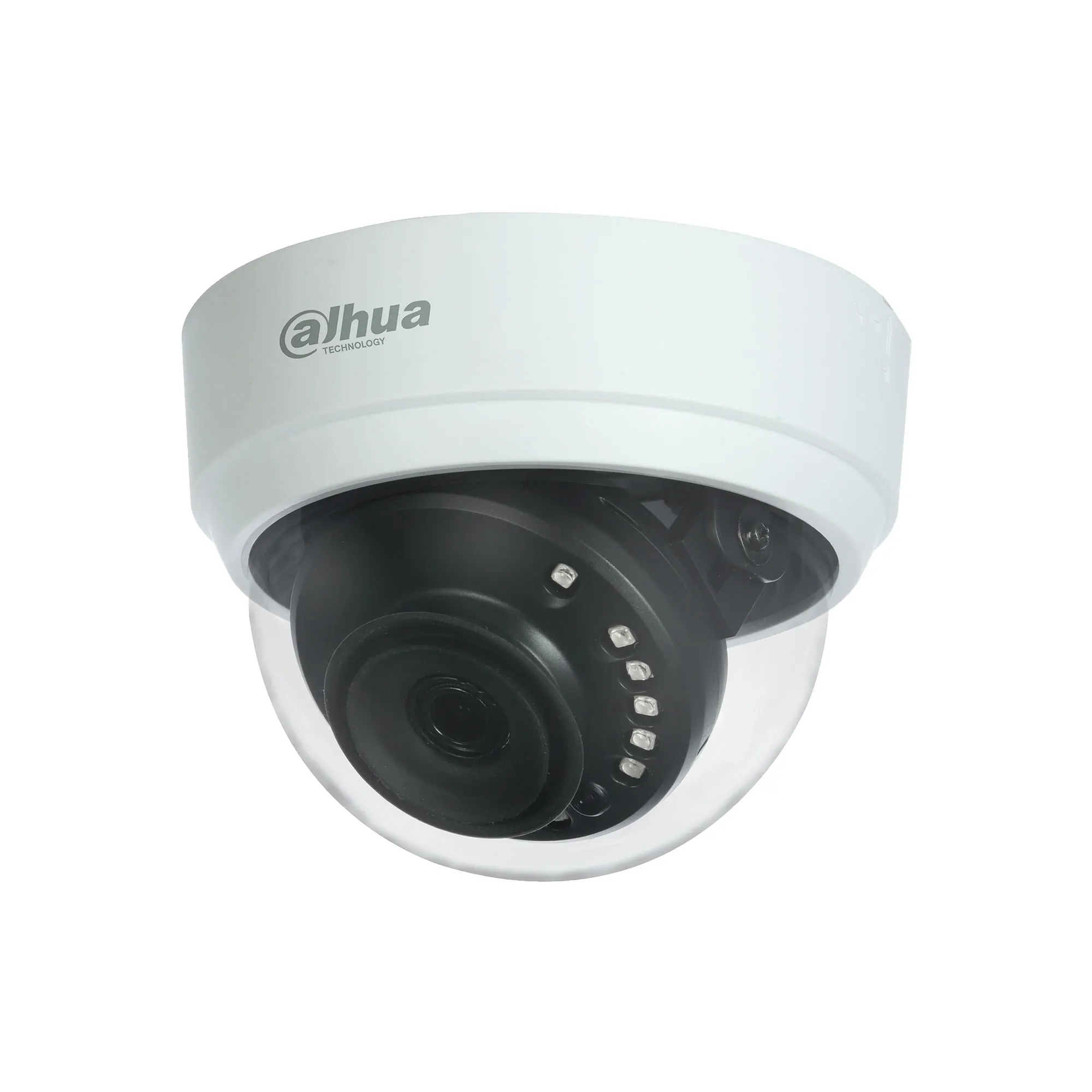

Stock Code: HAC-D1A21P
| Camera | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.7" CMOS | |||||||||||||||
| Effective Pixels | 1920(H)×1080(V), 2MP | |||||||||||||||
| Scanning System | Progressive | |||||||||||||||
| Electronic Shutter Speed | PAL: 1/25~1/100000 s; NTSC: 1/30~1/100000 s | |||||||||||||||
| Minimum Illumination | 0.04 Lux/F1.85, 30 IRE; 0 Lux IR on | |||||||||||||||
| S/N Ratio | More than 65 dB | |||||||||||||||
| IR Distance | Up to 20 m (66 ft) | |||||||||||||||
| IR On/Off Control | Auto / Manual | |||||||||||||||
| Illuminator Number | 12 | |||||||||||||||
| Lens | ||||||||||||||||
| Lens Type | Fixed lens / Fixed iris | |||||||||||||||
| Mount Type | Board-in | |||||||||||||||
| Focal Length | 3.6 mm (2.8 mm optional) | |||||||||||||||
| Max. Aperture | F1.85 | |||||||||||||||
| Angle of View | H: 93° (103°) | |||||||||||||||
| Focus Control | N/A | |||||||||||||||
| Close Focus Distance | 800 mm (500 mm); 31.50" (19.69") | |||||||||||||||
| DORI Distance | ||||||||||||||||
| Note: DORI distance is a "general distance" that makes it easy to identify the right camera for your needs. DORI distance is calculated based on the sensor specification and laboratory test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize, and Identify, respectively. | ||||||||||||||||
| DORI |
| |||||||||||||||
| Pan / Tilt / Rotation | ||||||||||||||||
| Pan / Tilt / Rotation | Pan: 0° ~ 355°; Tilt: 0° ~ 75°; Rotation: 0° ~ 355° | |||||||||||||||
| Video | ||||||||||||||||
| Resolution | 1080P (1920×1080) | |||||||||||||||
| Frame Rate | 25/30 fps@1080P, 25/30/50/60 fps@720P | |||||||||||||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (switchable) | |||||||||||||||
| Day/Night | Auto (ICR) / Manual | |||||||||||||||
| OSD Menu | Multi-language | |||||||||||||||
| BLC Mode | BLC / HLC / DWDR | |||||||||||||||
| WDR | DWDR | |||||||||||||||
| Gain Control | AGC | |||||||||||||||
| Noise Reduction | 2D | |||||||||||||||
| White Balance | Auto / Manual | |||||||||||||||
| Smart IR | Auto / Manual | |||||||||||||||
| Certifications | |
|---|---|
| Certifications | CE (EN55032, EN55024, EN50130-4); FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014); UL (UL60950-1 + CAN/CSA C22.2 No.60950-1) |
| Interface | |
| Audio Interface | N/A |
| Power | |
| Power Supply | 12 V DC ±30% |
| Power Consumption | Max. 3 W (12 V DC, IR on) |
| Environmental | |
| Operating Conditions | -40°C ~ +45°C (-40°F ~ +104°F) / Less than 95% RH * Must be able to start up at -40°C (-40°F) |
| Storage Conditions | -40°C ~ +45°C (-40°F ~ +104°F) / Less than 95% RH |
| Ingress Protection and Vandal Resistance | N/A |
| Construction | |
| Casing | Plastic |
| Dimensions | Φ100 mm×74.3 mm (Φ3.9"×2.9") |
| Net Weight | 0.14 kg (0.31 lb) |
| Gross Weight | 0.24 kg (0.53 lb) |
