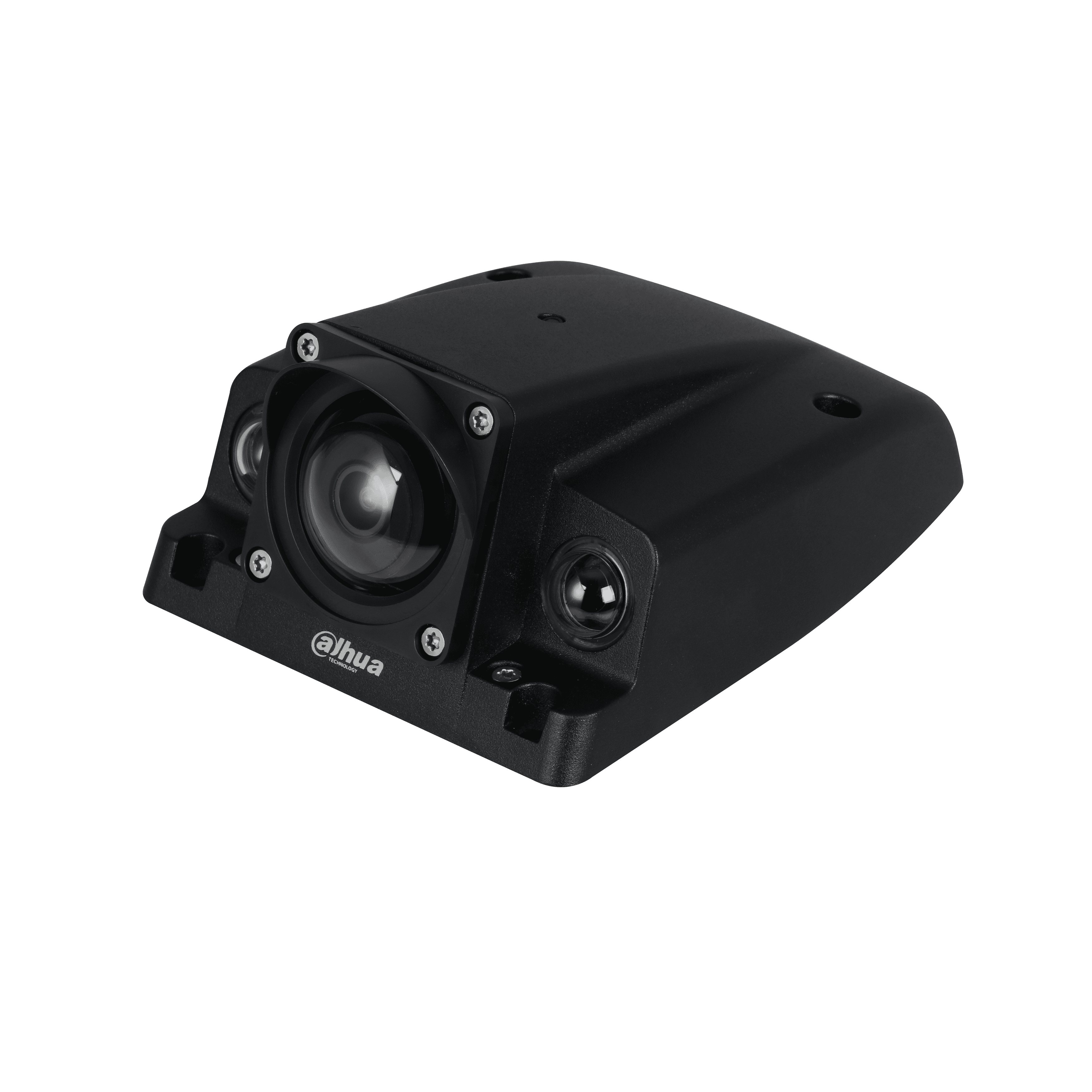

| Camera |
| Image Sensor | 1/2.8" 2 Megapixel progressive scan CMOS |
| Effective Pixels | 1920 (H) × 1080 (V) |
| RAM/ROM | 256 MB / 32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual, 1/3 ~ 1/100000 s |
| Minimum Illumination | 0.009 Lux/F2.0 (Color, 1/3 s, 30 IRE); 0.07 Lux/F2.0 (Color, 1/30 s, 30 IRE); 0 Lux/F2.0 (IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 30 m (98 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8 mm (3.6 mm, 6 mm optional) |
| Max. Aperture | F2.0 (F2.0, F2.0) |
| Angle of View | 2.8 mm: Horizontal: 110°; Vertical: 58°; Diagonal: 131°; 3.6 mm: Horizontal: 87°; Vertical: 46°; Diagonal: 105°; 6.0 mm: Horizontal: 52°; Vertical: 30°; Diagonal: 60° |
| Optical Zoom | N/A |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| DORI Distance |
| Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 44 m (144 ft) | 17 m (52 ft) | 9 m (30 ft) | 4 m (13 ft) |
| 3.6 mm | 55 m (180 ft) | 22 m (72 ft) | 11 m (36 ft) | 6 m (20 ft) |
| 6.0 mm | 81 m (266 ft) | 32 m (105 ft) | 16 m (52 ft) | 8 m (26 ft) |
|
| Pan/Tilt/Rotation |
| Pan/Tilt/Rotation Range | Pan: 0° ~ 20°; Tilt: ±15°; Rotation: 0° ~ 360° |
| Intelligence |
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection |
| Video |
| Compression | H.265+/H.265/H.264+/H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 1080P (1920×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576 / 704×480) / VGA (640×480) / CIF (352×288 / 352×240) |
| Frame Rate | Main Stream: 1080P (1 ~ 50/60 fps); Sub Stream: D1 (1 ~ 50/60 fps); Third Stream: 1080P (1 ~ 25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24 ~ 10240 Kbps; H.265: 14 ~ 9984 Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR (120 dB) |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | Support |
| Defog | N/A |
| Digital Zoom | 16× |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio |
| Compression | N/A |
| Network |
| Ethernet | -AS: RJ45 (10/100Base-T); -M12: M12 D-Coding (10/100Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users / 20 Users |
| Edge Storage | NAS; Local PC for instant recording; Micro SD card 128 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, Easy4ip |
| Smart Phone | iOS, Android |
| Certifications |
| Certifications | CE (EN 60950:2000); UL: UL60950-1; FCC: FCC Part 15 Subpart B; E-mark (ECE-Regulation No.10); EN50155 (Environment) |
| Interface |
| Video Interface | N/A |
| Audio Interface | 1/1 channel In/Out (-AS Model) |
| RS485 | N/A |
| Alarm | 1 channel In: 5 mA 5 V DC; 1 channel Out: 300 mA 12 V DC (-AS Model) |
| Electrical |
| Power Supply | -AS: DC 12 V, PoE (802.3af) (Class 0); -M12: PoE (802.3af) (Class 0) |
| Power Consumption | <6.5 W |
| Environmental |
| Operating Conditions | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH |
| Storage Conditions | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH |
| Ingress Protection | IP67, IP6K9K |
| Vandal Resistance | IK10 |
| Construction |
| Casing | Metal |
| Dimensions | 140.6 mm × 112.9 mm × 69.4 mm (5.53" × 4.44" × 2.73") |
| Net Weight | 0.59 kg (1.3 lb) |
| Gross Weight | 0.8 kg (1.76 lb) |
