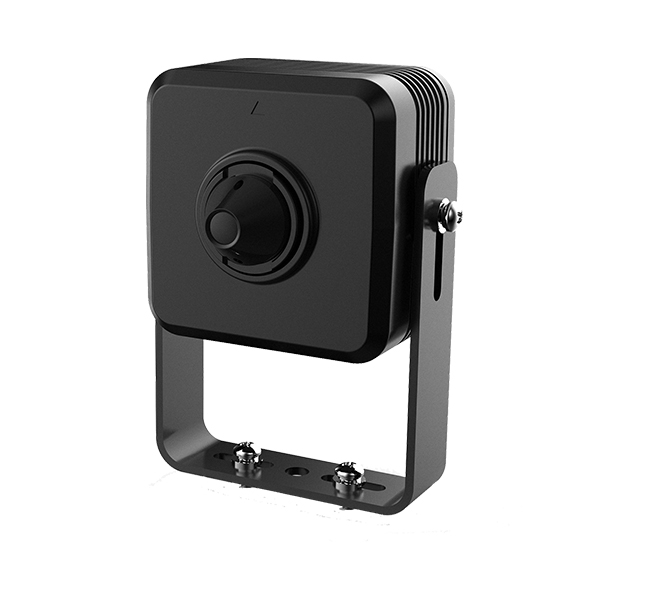

A pinhole camera that delivers 1080P video without drawing attention

The body stays 44.9 mm long and hides inside a counter, a panel or an ATM. The 2.8 mm fixed lens covers a 105° horizontal angle, and 120 dB WDR balances backlight in front of a glass door. The camera sends three streams to the network with H.265 encoding.

1920 × 1080Resolution

1/2.7" CMOSSensor

2.8 mmFocal Length

F2.4Maximum Aperture

12 V DCPower Supply

Key features

Concealed mountingThe metal body measures 44.9 mm x 57.7 mm x 34.35 mm and fits into tight spaces.

Wide dynamic range120 dB WDR keeps a face in the foreground from going dark against bright backlight.

Three streamsH.265 and H.264 encoding feed recording, live viewing and mobile access on separate streams.

On-camera analyticsIt runs tripwire, intrusion, abandoned and missing object rules on the camera and also supports face detection.

Low drawIt takes 1.5 W from a 12 V DC line.

Recognition distanceThe 2.8 mm lens detects up to 63 m and recognizes up to 13 m.

The source table lists no Protection Grade or vandal resistance rating.

Camera

Image Sensor

1/2.7" 2 Megapixel progressive CMOS

Effective Pixels

1920(H) x 1080(V)

RAM / ROM

256MB / 128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual, 1/3 - 100000 s

Minimum Illumination

0.007 Lux/F2.4 (Color, 1/3s, 30 IRE)
0.04 Lux/F2.4 (Color, 1/30s, 30 IRE)
0.004 Lux/F2.4 (B/W, 1/3s, 30 IRE)
0.02 Lux/F2.4 (B/W, 1/30s, 30 IRE)

S/N Ratio

More than 50 dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm

Max. Aperture

F2.4

Angle of View

H:105°, V:60°

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	63 m (207 ft)	25 m (82 ft)	13 m (43 ft)	6 m (20 ft)

Pan / Tilt / Rotation

Pan / Tilt / Rotation Range

N/A

Intelligence

Event Trigger

Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, storage anomaly

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265 / H.264 / H.264B / H.264H / MJPEG (Sub Stream)

Smart Codec

Support H.265+ / H.264+

Streaming Capability

3 streams

Resolution

1080P (1920x1080) / 960P (1280x960) / 720P (1280x720) / D1 (704x576 / 704x480) / VGA (640x480) /
CIF (352x288 / 352x240)

Frame Rate

Main Stream: 1080p (1-25/30 fps)
Sub Stream: D1 (1-25/30 fps)
Third Stream: 1080P (1-14/9 fps)

Bit Rate Control

CBR / VBR

Bit Rate

H.265: 12K - 6400 Kbps
H.264: 32K - 8192 Kbps

Day/Night

Auto (Electronic) Color / B/W

BLC Mode

BLC / HLC / WDR (120 dB)

White Balance

Auto / Natural / Street / Lamp / Outdoor / Manual

Gain Control

Auto / Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 zone, rectangle)

Region of Interest

Off / On (4 zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Digital Zoom

16x

Flip

0° / 90° / 180° / 270°

Mirror

Off / On

Privacy Masking

Off / On (4 area rectangle)

Audio

Compression

G.711a / G.711Mu / AAC / G.726

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPV4/V6; QoS; UPnP; NTP; Bonjour; IEEE 802.1X; Multicast; ICMP; IGMP; TLS

Interoperability

ONVIF Profile S, API

Streaming Method

Unicast / Multicast

Max. User Access

10 users / 20 users

Edge Storage

NAS
Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

CE (EN 60950:2000)
UL: UL60950-1
FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

N/A

Electrical

Power Supply

12 V DC

Power Consumption

< 1.5 W

Environmental

Operating Conditions

-30°C - +60°C (-22°F - +140°F) / Less than 95% RH

Storage Conditions

-30°C - +60°C (-22°F - +140°F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

44.9 mm x 57.7 mm x 34.35 mm (1.77" x 2.27" x 1.35")

Net Weight

0.102 kg (0.225 lb)

Gross Weight

0.145 kg (0.319 lb)
