Splits one video source across four displays to form a single wide picture.

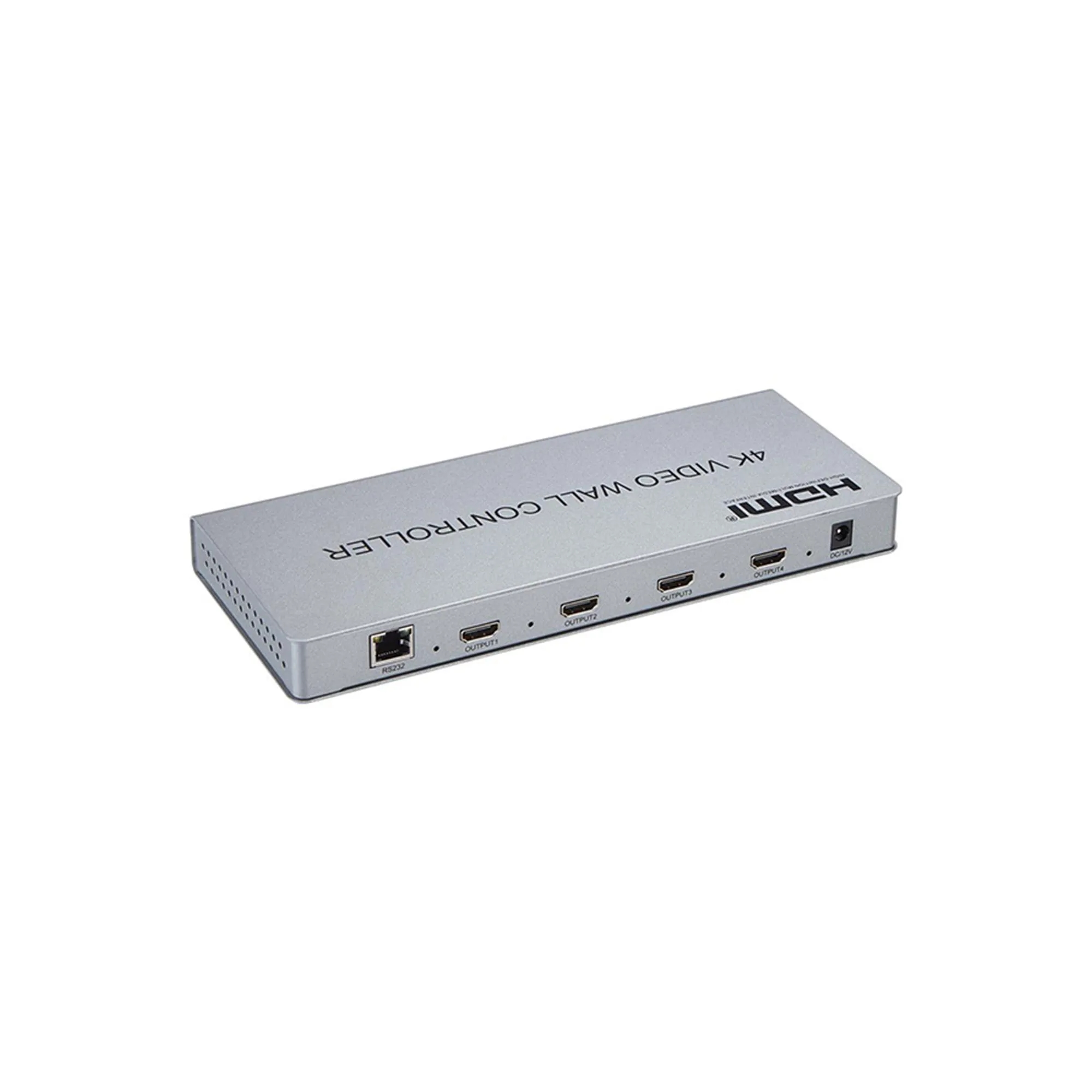

A video wall controller that turns four displays in a 2x2 layout into one picture surface. It distributes a single DVI or HDMI input to four HDMI outputs, accepts a 4K source and sends 1920x1080P video to each display.

2x2Display array

1DVI or HDMI input

4HDMI outputs

3840x2160PMax. input resolution

1920x1080POutput resolution

Key features

Input supportAccepts one DVI or HDMI input and stays compatible with HDMI 1.4 and HDCP 1.4.

Output supportDrives four HDMI outputs and one 3.5 mm audio output.

ResolutionAccepts 1920x1080P 25/30/50/60Hz and 3840x2160P 25/30Hz at the input and delivers 1920x1080P at the output.

Color formatHandles YUV422 16 bit and RGB444 24 bit at the input and RGB444 24 bit at the output.

Control and powerSupports the RS232 protocol (RJ45 net port) and runs from a DC 12V / 2A adapter.

DVI / HDMI Splitter / Extender - Technical Specifications

Input Support

1 x DVI or HDMI input, compatible with HDMI 1.4 and HDCP 1.4

Output Support

4 x HDMI outputs, 1 x 3.5mm audio output

Input Resolution

1920x1080P @ 25/30/50/60Hz, 3840x2160P @ 25/30Hz

Output Resolution

1920x1080P @ 25/30/50/60Hz

Input / Output Format

Input: YUV422 16bit, RGB444 24bit | Output: RGB444 24bit

Control

Supports RS232 protocol (Net port RJ45)

Usage

Plug and play, easy to use

Power Adapter

DC 12V / 2A
