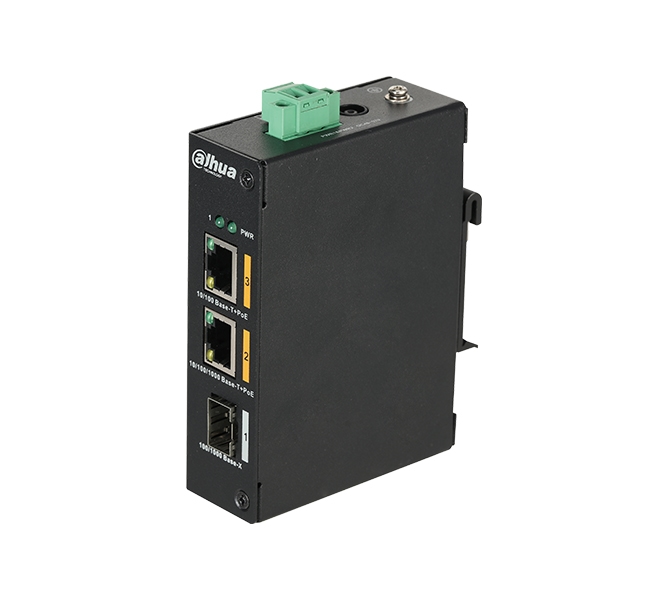

Name: 3-Port Switch with 2-Port PoE
Brand: Dahua
SKU: PFS3103-1GT1ET-60

Powers two PoE devices and carries their traffic over a fiber uplink.

This is an unmanaged Layer 2 PoE switch with three ports. It distributes up to 60 W in total across two PoE ports and links to the fiber backbone through the SFP uplink port. It operates across -30°C ~ 65°C.

2PoE ports

≤ 60 WPoE Budget

6.8 GbpsSwitching Capacity

1 × SFP 100/1000MUplink port

48 ~ 57 V DCPower Supply

-30°C ~ 65°COperating Temperature

Key features

60W

Hi-PoE Power

Feeds a single end device with a high power draw.

6.8Gbps

Switching Capacity

Handles the traffic of all three ports in a single switching fabric.

3.12Mpps

Packet Forwarding Rate

Keeps packet processing steady under heavy network traffic.

MAC Table

Learns device addresses on the network and ages out stale entries.

-30°C

Wide Temperature Range

Runs in unheated field cabinets.

4KV

Lightning Protection

Shields the line against common mode surges.

IN DAILY USE

Redundant power inputIt carries two supply inputs and keeps running when one of them drops.

Metal housingThe metal case suits direct mounting inside a field enclosure.

Fits small boxesThe 105 mm × 75 mm × 30 mm body settles into narrow field boxes.

Technical Specification

Model

DH-PFS3103-1GT1ET-60

Ethernet Port

1*RJ45 10/100M (PoE)
1*RJ45 10/100/1000M (PoE)
1*SFP 100/1000M (uplink)

PoE Power Consumption

Port 2 and port 3 support Hi-PoE 60W
Total ≤ 60W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

6.8Gbps

Packet Forwarding Rate

3.12Mpps

Packet Buffer Memory

1Mb

Application Humidity

10% ~ 90%

Power

DC48-57V

Lightning Protection

Common Mode 4KV
Differential Mode 2KV

Working Temperature

-30°C ~ 65°C

Dimension (W × D × H)

105mm x 75mm x 30mm

Accessories

PFT3950

1.25G 850nm, 500m, LC, Multi-mode

PFT3960

1.25G 1310/1550nm, 20km, LC, Single-mode

PFT3970

1.25G 1550/1310nm, 20km, LC, Single-mode
