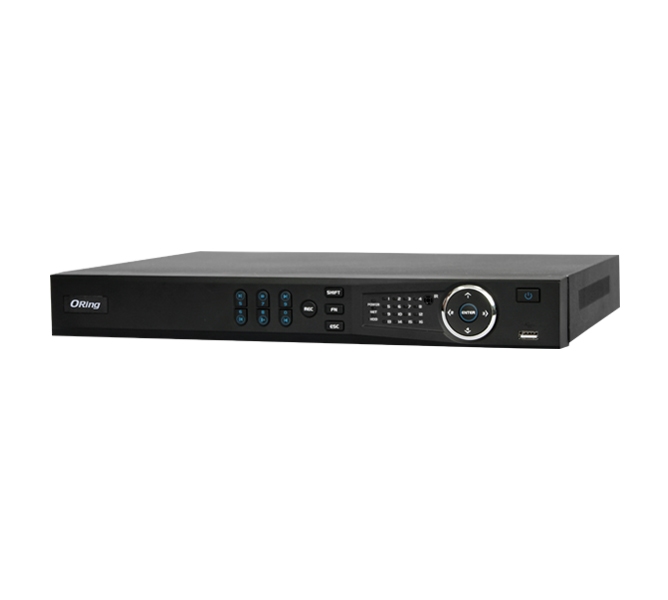

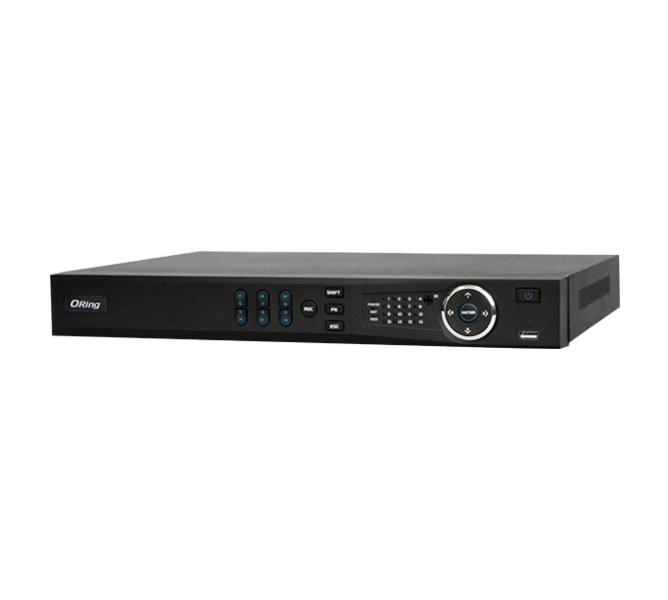

Stock Code: OR-NVR7732L-I4-4K
| Third-party Support | |
|---|---|
| Third-party Support | ORing, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
| Audio and Video | |
| IP Camera Input | 16/32/64 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Recording | |
| Compression | H.265/H.264/MJPEG/MPEG4 |
| Resolution | 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/720P/D1 & etc. |
| Record Rate | 320Mbps |
| Bit Rate | 16kbps~20Mbps per channel |
| Record Mode | Manual, Schedule (Regular (Continuous), MD, Alarm), Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Network | |
| Interface | 2 RJ-45 ports (10/100/1000Mbps) |
| Ethernet Port | 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports |
| PoE | N/A |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS and etc.), P2P |
| Optical Fiber Interface | N/A |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Electrical | |
| Power Supply | Single, AC 100~240V, 50/60 Hz |
| Power Consumption | <16.7W (without HDD) |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions (W×D×H) | 1.5U, 440mm×411.1mm×76mm (17.3" x 16.2" x 3.0") |
| Net Weight | 4.3kg (9.5 lb) (without HDD) |
| Gross Weight | 7kg (15.4 lb) (without HDD) |
| Certifications | |
| CE | EN55022, EN55024, EN50130-4, EN60950-1 |
| FCC | Part15 subpartB, ANSI C63.4-2014 |
| UL | UL60950-1+CAN/CSA C22.2 No.60950-1 |
| System | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| Display | |
| Interface | 2 HDMI (1 HDMI up to 3840x2160, Different Source), 1 VGA |
| Resolution | 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display | 1st screen: 16CH: 1/4/8/9/16 32CH: 1/4/8/9/16/25/36 64CH: 1/4/8/9/16/25/36 2nd screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm Input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 6 Channel, NO/NC Programmable, Green Terminal Interface |
| Tracking Trigger Event | N/A |
| Playback and Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
| Storage | |
| Internal HDD | 4 SATA III Ports, up to 8TB capacity for each HDD |
| HDD Mode | Single |
| eSATA | 1 eSATA port |
| SAS | N/A |
| Auxiliary Interface | |
| Front Cover | N/A |
| USB | 3 ports (2 Rear USB3.0, 1 Front USB2.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
