| Video and Audio |
|---|
| IP Camera Input | 4-ch connected via PoE interfaces; Total output power: 36 W; Max. output power of a single port: 25.4 W |
| Video Compression | H.265 / Smart H.265 / H.264 / Smart H.264 |
| Encoding Capacity | 1080P / 720P / 960H / D1 / CIF |
| Dual-stream | Support (up to D1 encoding for sub stream) |
| Video Frame Rate | PAL: 1–25 fps; NTSC: 1–30 fps |
| Video Output | 1-ch CVBS; 1-ch VGA; 1-ch HDMI; Output resolution: 800×600 / 1280×1024 |
| Display | 1 / 4 |
| Audio Compression | G.711A / G.711U / PCM |
| Network |
|---|
| Band | | Eurasian Version | Latin American Version |
|---|
| LTE-FDD: B1/3/5/7/8/20; LTE-TDD: B38/40/41; WCDMA: B1/5/8; GSM/EDGE: B3/8 | LTE-FDD: B1/2/3/4/5/7/8/28; LTE-TDD: B40; WCDMA: B1/2/4/5/8; GSM/EDGE: B2/3/5/8 |
|
| Tx Power | | Frequency Bands | Max. Tx Power |
|---|
| GSM850/EGSM900 | 33 dBm ±2 dB | | DCS1800/PCS1900 | 30 dBm ±2 dB | | WCDMA bands | 23 dBm ±2 dB | | LTE bands | 23 dBm ±2 dB |
|
| Wi-Fi Frequency | 2.4 GHz |
| Wi-Fi Protocol | 802.11 b/g/n |
| Interoperability | ONVIF (Profile S / Profile G / Profile T) |
| AI |
|---|
| DSM | Supports drowsy driving, distracted driving, calling, no driver, wearing IR blocking sunglasses, smoking, lens tampering and unbelted alarms. |
| Face Recognition | Supports face attribute detection and face comparison. |
| ANPR | Supports recognition of license plate, vehicle color and vehicle brand. |
| Recording Playback |
|---|
| Recording Priority | Manual recording > alarm recording > motion detection recording > timed recording |
| Recording Playback | 1 / 4 channels |
| Backup | HDD/SSD, USB flash drive and network backup |
| Storage |
|---|
| HDD/SSD | 1 × 2.5-inch HDD/SSD (SATA), up to 2 TB |
| Heat Dissipation | Built-in fan cooling |
| SD card | 1 (up to 256 GB) |
| Alarm |
|---|
| General Alarm | Motion detection, video loss, video tampering, local alarm, camera offline |
| Abnormal Alarm | No HDD, HDD error, insufficient capacity, illegal login, battery low voltage, high temperature, rollover, collision, over speed, low speed, rapid turn, rapid speedup, sharp brake, network security exception, ACC off |
| Alarm Linkage | Log, record, snapshot, tour, buzzer, email, alarm output |
| Sensor |
|---|
| Gyroscope | Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn. |

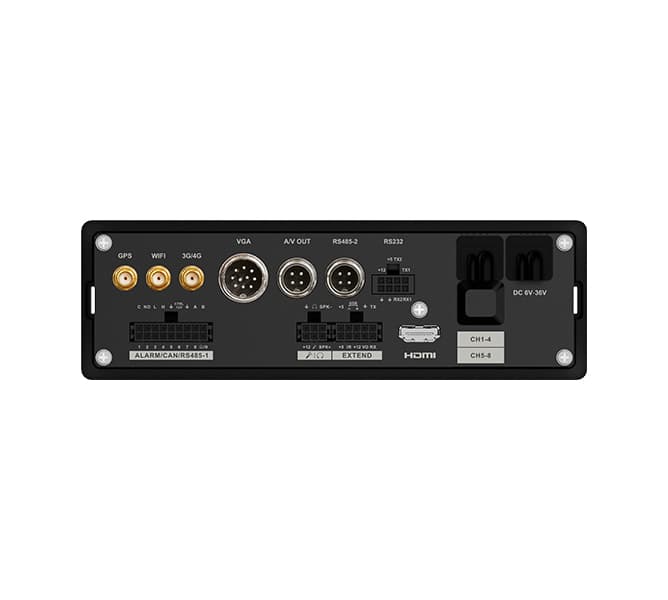

| External Port |
|---|
| Alarm Input | 9 channels (Alarm 1–8 are local alarm input, Alarm 9 is pulse input) |
| Alarm Output | 2 channels (1 relay out, 1 controllable 12VDC 0.5A out) |
| Audio Talk | Support |
| RS-232 | 4 |
| RS-485 | 2 |
| CAN | 1 |

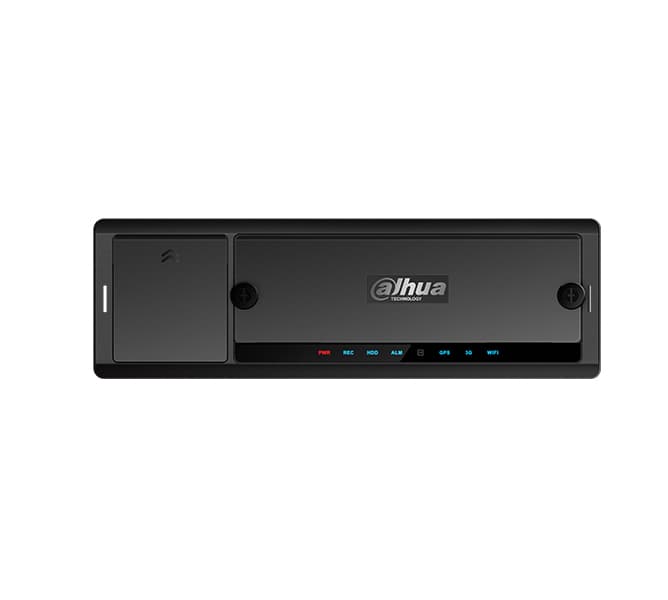

| USB | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0 from EXTEND port |
| Network Interface | 1 × 10M/100M RJ45 |
| Satellite Positioning | GPS / GLONASS |
| General |
|---|
| Power Supply | 6–36 VDC |
| Power Consumption | 11.1 W (without peripherals); Low power consumption: < 0.1 W |
| Gross Weight | 2.93 kg (6.50 lb) (with packages) |
| Product Dimensions | 180 mm × 190 mm × 50 mm (7.0" × 8.7" × 2.0") |
| Packaging Dimensions | 308 mm × 293 mm × 123 mm (12.1" × 11.5" × 4.8") |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | 10% – 90% |
| Operating Altitude | 5000 m |
| Installation | Embedded or bracket installation |
| Certifications | CE / FCC / E-mark / EN50155 |
