Active deterrence meets an intrusion as it happens, not after the footage is reviewed.

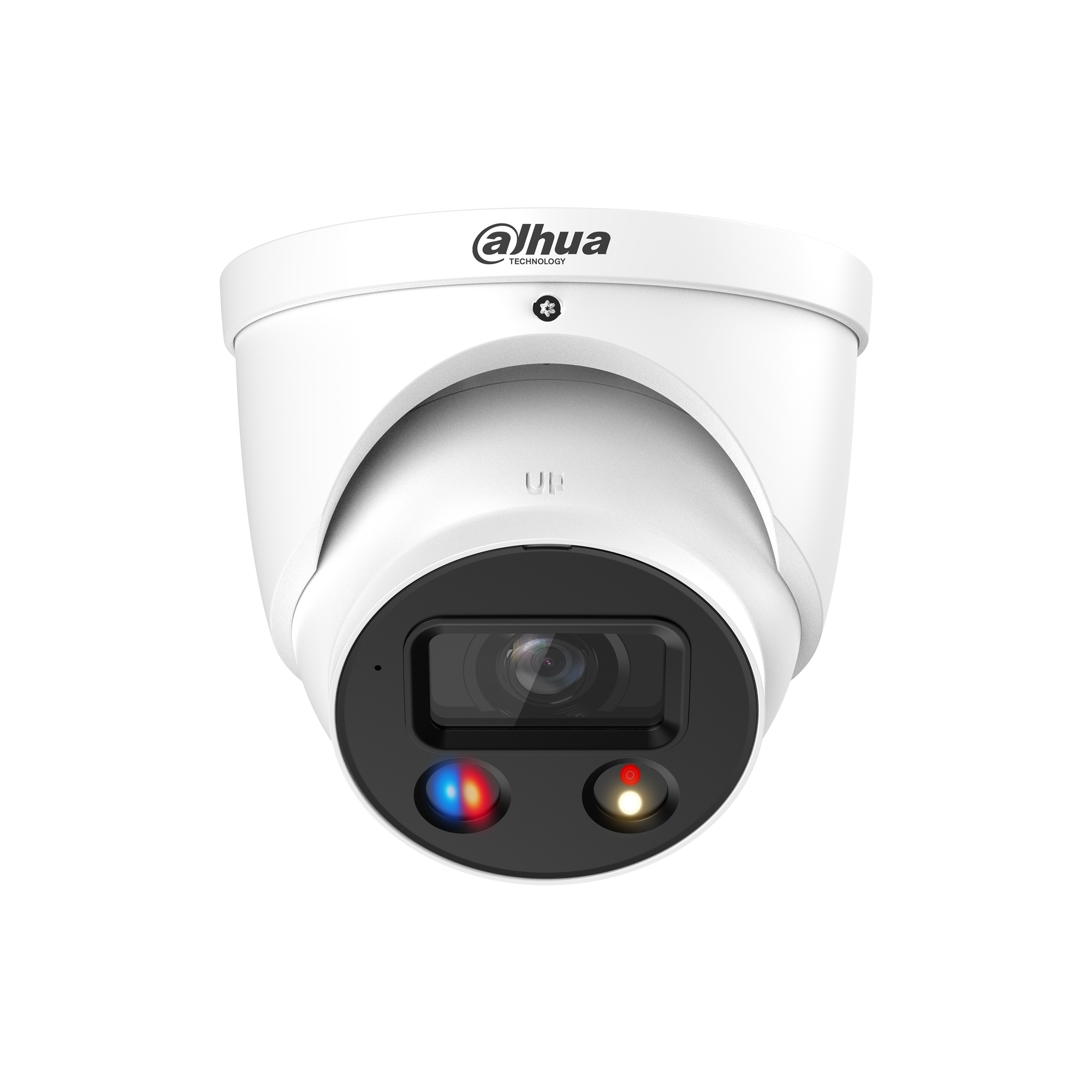

An eyeball network camera for close scenes such as doorways and corridors. The 1/2.7" CMOS sensor delivers 2688 × 1520 video, and the warm light illuminator holds color imaging up to 30 meters. Red and blue lights together with a sound alarm warn anyone in the area the moment an event starts.

2688 × 1520Max. Resolution

1/2.7" CMOSSensor

2.8 mm / 3.6 mmFocal Length

30 mIllumination Distance

IP67Protection Grade

12 VDC/PoEPower

Key features

4MP

Detailed image

2688 × 1520 resolution keeps faces legible in doorway and corridor scenes.

30m

Night vision

The warm light illuminator lights dark areas up to 30 meters.

120dB

Difficult lighting

WDR balances bright and dark zones within the same frame.

256GB

Onboard recording

A Micro SD card keeps recording on the device when the network drops.

11built-in sounds

Audio warning

On alarm it plays one of the built-in sounds, and custom audio can be imported as well.

12VDC

Single cable over PoE

The camera draws power and data from a PoE switch, or runs on a 12 VDC adapter.

IN DAILY USE

Instant warningRed and blue lights plus a siren alert anyone entering the area without waiting for review.

One-tap disarmingDuring working hours the alarm output, sound and light switch off in a single step.

Talk to the sceneThe built-in dual microphone and speaker carry the operator voice to the area.

Camera

Image Sensor

1/2.7" 4 Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s – 1/100,000 s

Min. Illumination

0.003 Lux @ F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°
3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.1 m (6.9 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	67.4 m (221.1 ft)	27 m (88.6 ft)	13.5 m (44.3 ft)	6.7 m (22.0 ft)
3.6 mm	80.0 m (262.5 ft)	32.0 m (105.0 ft)	16.0 m (52.5 ft)	8.0 m (26.2 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+ / Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 @ 1–25/30 fps
Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Third stream: 1920 × 1080 @ 1–25/30 fps

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (354 × 288 / 354 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps – 8192 kbps
H.265: 12 kbps – 8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3 V–5 V DC

Alarm Output

1 channel out: 300 mA 12 V DC

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 2.5 W (12 V DC); 3.0 W (PoE)
Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3 W (12 V DC); 8.0 W (PoE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F) / Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

Φ122.0 mm × 110.9 mm (Φ4.8" × 4.4")

Net Weight

754 g (1.7 lb)

Gross Weight

915 g (2.0 lb)

Active deterrence meets an intrusion as it happens, not after the footage is reviewed.

2688 × 1520Max. Resolution

1/2.7" CMOSSensor

2.8 mm / 3.6 mmFocal Length

30 mIllumination Distance

IP67Protection Grade

12 VDC/PoEPower

Key features

4MP

Detailed image

2688 × 1520 resolution keeps faces legible in doorway and corridor scenes.

30m

Night vision

The warm light illuminator lights dark areas up to 30 meters.

120dB

Difficult lighting

WDR balances bright and dark zones within the same frame.

256GB

Onboard recording

A Micro SD card keeps recording on the device when the network drops.

11built-in sounds

Audio warning

On alarm it plays one of the built-in sounds, and custom audio can be imported as well.

12VDC

Single cable over PoE

The camera draws power and data from a PoE switch, or runs on a 12 VDC adapter.

IN DAILY USE

Instant warningRed and blue lights plus a siren alert anyone entering the area without waiting for review.

One-tap disarmingDuring working hours the alarm output, sound and light switch off in a single step.

Talk to the sceneThe built-in dual microphone and speaker carry the operator voice to the area.

Camera

Image Sensor

1/2.7" 4 Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s – 1/100,000 s

Min. Illumination

0.003 Lux @ F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°
3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 1.2 m (3.9 ft)
3.6 mm: 2.1 m (6.9 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	67.4 m (221.1 ft)	27 m (88.6 ft)	13.5 m (44.3 ft)	6.7 m (22.0 ft)
3.6 mm	80.0 m (262.5 ft)	32.0 m (105.0 ft)	16.0 m (52.5 ft)	8.0 m (26.2 ft)

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion (support the classification and accurate detection of vehicle and human)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+ / Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 @ 1–25/30 fps
Sub stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Third stream: 1920 × 1080 @ 1–25/30 fps

Stream Capability

3 streams

Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (354 × 288 / 354 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps – 8192 kbps
H.265: 12 kbps – 8192 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

iOS; Android

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3 V–5 V DC

Alarm Output

1 channel out: 300 mA 12 V DC

Power

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 2.5 W (12 V DC); 3.0 W (PoE)
Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3 W (12 V DC); 8.0 W (PoE)

Environment

Operating Conditions

–40°C to +60°C (–40°F to +140°F) / Less than 95% RH

Storage Conditions

–40°C to +60°C (–40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

Φ122.0 mm × 110.9 mm (Φ4.8" × 4.4")

Net Weight

754 g (1.7 lb)

Gross Weight

915 g (2.0 lb)

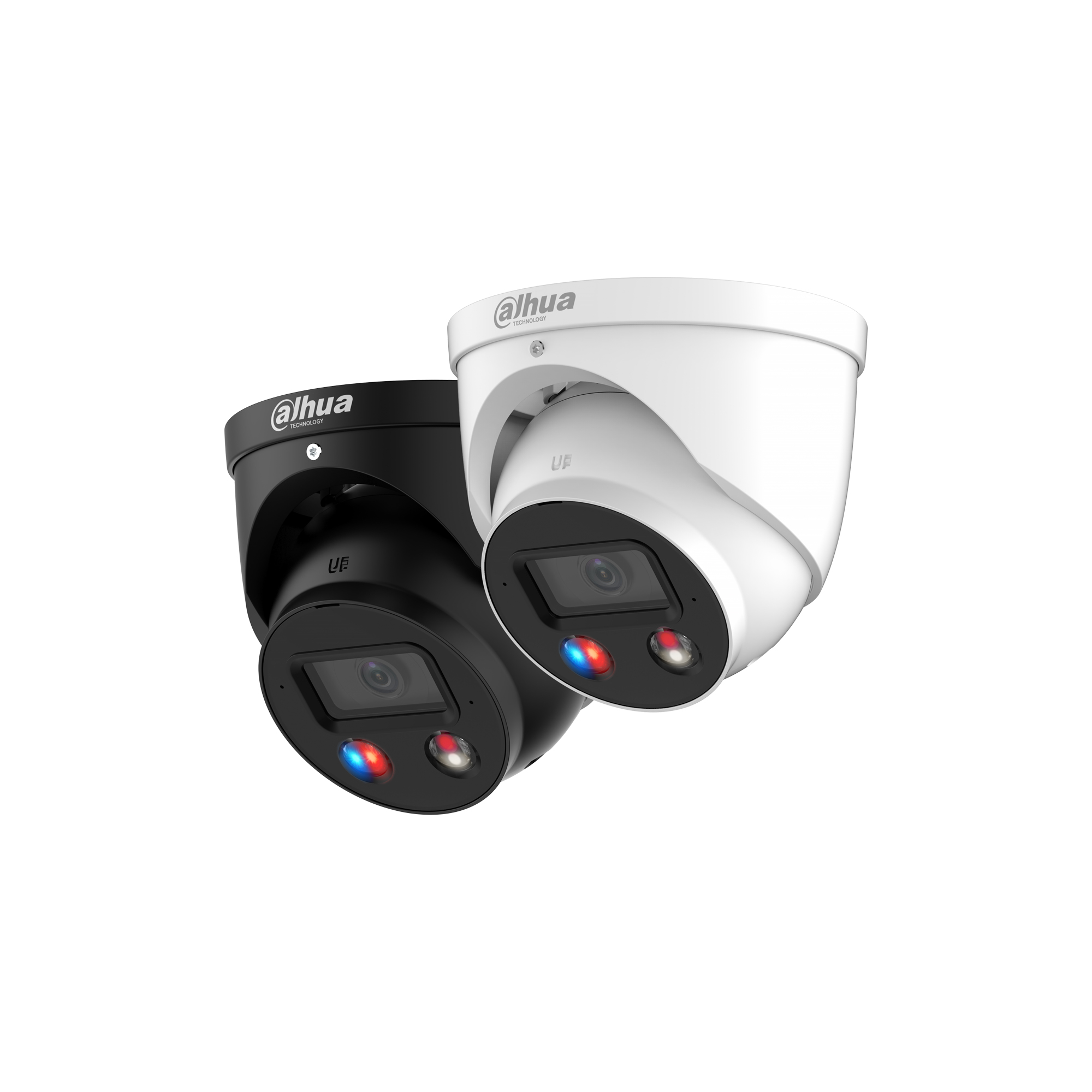

4 MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera
