Hardware Specifications
10/100Base-TX Ports	4
100Base-FX Port	1
Fiber Port Type	ISW-514PT: Multi-Mode ISW-514PT15: Single Mode ISW-514PTF: Vary on SFP
Connector Type	ISW-514PT: SC ISW-514PT15: SC ISW-514PTF: LC
Maximum Distance	ISW-514PT: 2 km ISW-514PT15: 15 km ISW-514PTF: Vary on SFP
Optical Wavelength	ISW-514PT: 1300 nm ISW-514PT15: 1310 nm ISW-514PTF: Vary on SFP
Launch Power (dBm)	ISW-514PT: Max.: -14 Min.: -20 ISW-514PT15: Max.: 0 Min.: -20 ISW-514PTF: Vary on SFP
Receive Sensitivity (dBm)	ISW-514PT: -32 ISW-514PT15: -32 ISW-514PTF: Vary on SFP
IEEE 802.3af PoE Ports	4
Dimensions (D × W × H)	135 × 87.8 × 56 mm
Weight	842 g
LED Indicators	Power1, Power2 and Fault Port 1~4: PoE in-use, LNK/ACT Port 5: LNK/ACT
Power Requirements	24 or 48 V DC, redundant power with polarity reverse protection function
Installation	DIN-rail kit and wall-mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 1A @ 24V DC

Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 48V DC, 350mA, max. 15.4 watts
Power Pin Assignment	1/2(+), 3/6(-)

Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	2K entries
Flow Control	Back pressure for half duplex IEEE 802.3x pause frame for full duplex
Switch Fabric	1 Gbps
Throughput (packet per second)	0.74 Mpps
Network Cables	10/100Base-TX: Cat. 3, 4, 5, 5e and 6 UTP cable (100 meters max.) EIA/TIA-568 100-ohm STP (100 meters max.)

Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet
Regulation Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)

Environment
Temperature	Operating: -40 ~ 75°C Storage: -40 ~ 85°C
Humidity	Operating: 5~90%, Storage: 5~90% (non-condensing)

Joins four PoE ports to a fiber uplink and runs in demanding field conditions.

An industrial Fast Ethernet switch with IEEE 802.3af PoE injector function. Four copper ports feed cameras and access points over a single cable, and the 100Base-FX fiber port reaches a remote backbone. It accepts a dual 24 or 48 V DC input and operates from -40 ~ 75 °C.

4 ports10/100 PoE copper ports

1 port100Base-FX fiber uplink

1 GbpsSwitching Capacity

15.4 WPoE power per port

24 / 48 V DCPower Requirements

-40 ~ 75 °COperating Temperature

Key features

15.4W

802.3af power per port

It delivers up to 48V DC and 350 mA to four compliant devices.

100m

Feeding distance over Cat 5/5e

It carries data and power on one cable and removes the need for a separate outlet.

2km

ISW-514PT multi-mode fiber

It reaches a remote point over multi-mode fiber with an SC connector.

15km

ISW-514PT15 single-mode fiber

Single-mode fiber with an SC connector covers longer runs.

1Gbps

Non-blocking switching

A throughput of 0.74 Mpps carries all five ports at wire speed.

IN DAILY USE

Model choiceThe ISW-514PTF works with an SFP module on an LC connector; the distance follows the module fitted.

Redundant supplyTwo DC inputs with reverse polarity protection keep operation running, and a relay output sends an alarm on power failure.

ApplicationsIndustrial workgroup networks·IP camera systems·Wireless access points·IP phone systems

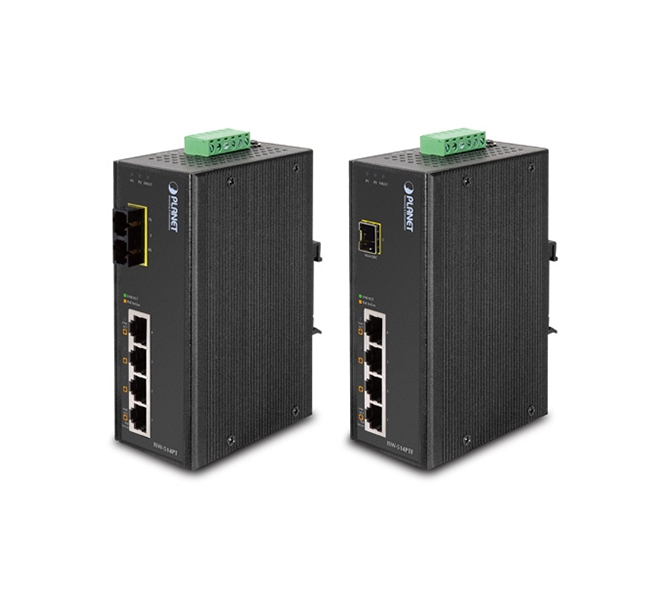

The three models share the same housing; fiber type, connector and distance vary by model.

Hardware Specifications

10/100Base-TX Ports

100Base-FX Port

Fiber Port Type

ISW-514PT: Multi-Mode
ISW-514PT15: Single Mode
ISW-514PTF: Vary on SFP

Connector Type

ISW-514PT: SC
ISW-514PT15: SC
ISW-514PTF: LC

Maximum Distance

ISW-514PT: 2 km
ISW-514PT15: 15 km
ISW-514PTF: Vary on SFP

Optical Wavelength

ISW-514PT: 1300 nm
ISW-514PT15: 1310 nm
ISW-514PTF: Vary on SFP

Launch Power (dBm)

ISW-514PT: Max.: -14 Min.: -20
ISW-514PT15: Max.: 0 Min.: -20
ISW-514PTF: Vary on SFP

Receive Sensitivity (dBm)

ISW-514PT: -32
ISW-514PT15: -32
ISW-514PTF: Vary on SFP

IEEE 802.3af PoE Ports

Dimensions (D × W × H)

135 × 87.8 × 56 mm

Weight

842 g

LED Indicators

Power1, Power2 and Fault
Port 1~4: PoE in-use, LNK/ACT
Port 5: LNK/ACT

Power Requirements

24 or 48 V DC, redundant power with polarity reverse protection function

Installation

DIN-rail kit and wall-mount ear

Alarm

Provides one relay output for power failure
Alarm relay current carry ability: 1A @ 24V DC

Power over Ethernet

PoE Standard

IEEE 802.3af Power over Ethernet / PSE

PoE Power Supply Type

End-Span

PoE Power Output

Per Port 48V DC, 350mA, max. 15.4 watts

Power Pin Assignment

1/2(+), 3/6(-)

Switch Specifications

Switch Processing Scheme

Store-and-Forward

Address Table

2K entries

Flow Control

Back pressure for half duplex
IEEE 802.3x pause frame for full duplex

Switch Fabric

1 Gbps

Throughput (packet per second)

0.74 Mpps

Network Cables

10/100Base-TX:
Cat. 3, 4, 5, 5e and 6 UTP cable (100 meters max.)
EIA/TIA-568 100-ohm STP (100 meters max.)

Standards Conformance

Standards Compliance

IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet

Regulation Compliance

FCC Part 15 Class A, CE

Stability Testing

IEC60068-2-32 (Free Fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)

Environment

Temperature

Operating: -40 ~ 75°C
Storage: -40 ~ 85°C

Humidity

Operating: 5~90%, Storage: 5~90% (non-condensing)

4-Port 10/100Mbps with PoE + 1-Port 100FX Industrial Ethernet Switch – Wide Temperature

Datasheet

ISW-514PT / ISW-514PT15 / ISW-514PTF

Kullanım Kılavuzu

ISW-514PT / ISW-514PT15 / ISW-514PTF
