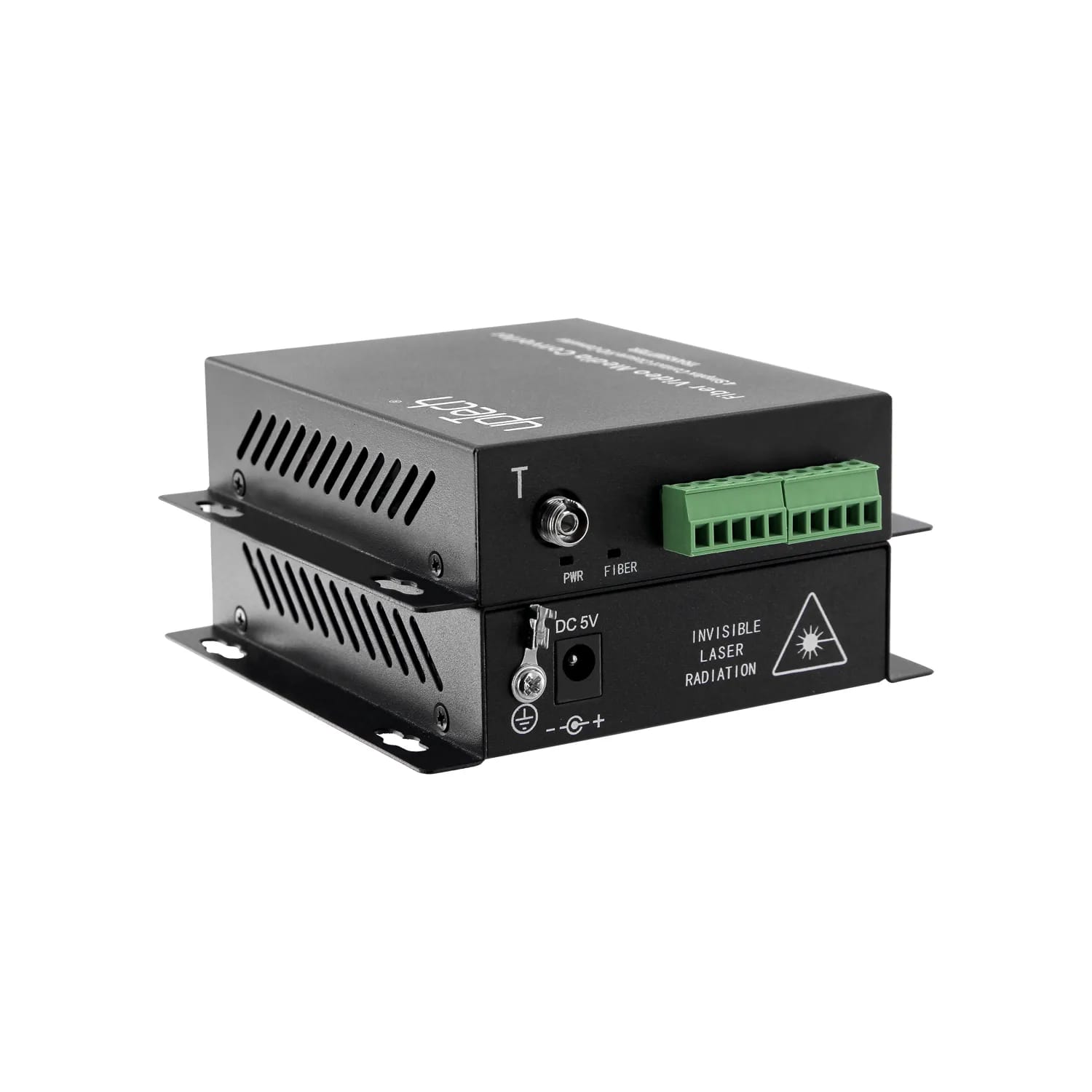

Carries four dry contact signals over a single fiber

It converts dry contact and TTL signals into an optical link and sends four channels one way over a single fiber. Since fiber replaces the copper run, EMI, RFI and ground loops do not corrupt the signal.

4x SimplexNumber of Channels

Simplex FCFiber connector

1310 nmOperating wavelength

2 / 20 kmMultimode / single mode distance

24 VAC / 200 mAContact signal voltage

-10 ~ 75 °COperating Temperature

Key features

Contact interfaceA 2x terminal block (5 pin, 3.5 mm) accepts TTL, dry contact and ON-OFF signals; the contacts are normally open.

Optical budgetThe transmitter sends -15 to -8 dBm and the receiver reads signals down to -35 dBm.

DistanceReaches 2 km over multimode fiber and 20 km over single mode fiber.

Interference immunityEMI, RFI and ground loops do not corrupt the signal, and LED indicators show live traffic.

MountingRuns as a stand-alone box or rack mounted, and supports the hot-swap function.

Housing and powerThe 102 x 108 x 27 mm housing runs on DC 5 V power.

The contact closure channels operate in one direction only, from Tx to Rx.

General Features

Dry Contact / TTL Data

Dry contact termination or TTL data transmission over a single fiber

Fiber Distance Support

2 km over multi-mode fiber, 20 km over single-mode fiber

LED Indicator

Real-time traffic monitoring via LED

Interference Immunity

Immune to EMI, RFI and ground loop

Mounting Type

Supports stand-alone and rack-mount

Hot-swap Support

Hot-swap function supported

Fiber Optic Specifications

F/O Connector

Simplex FC

Transmitter (Tx)

-15 ~ -8 dBm

Receiver Sensitivity

≤ -35 dBm

Wavelength

1310 nm

Distance

2 km (Multimode), 20 km (Singlemode)

Contact Closure Specifications

Number of Channels

4x Simplex (Tx → Rx direction)

Connector

2x Terminal block (5 pin, 3.5 mm)

Signal

TTL / Dry contact / ON-OFF

Voltage

24 VAC / 200 mA

Contact Type

NO (Normally Open)

Physical Specifications

Dimensions

102 (L) × 108 (W) × 27 (H) mm

Power Supply

DC 5V

MTBF

≥ 100,000 hours

Environmental Conditions

Operating Temperature

-10 °C ~ 75 °C

Humidity

0% ~ 95% (non-condensing)

Storage Temperature

-55 °C ~ +85 °C
