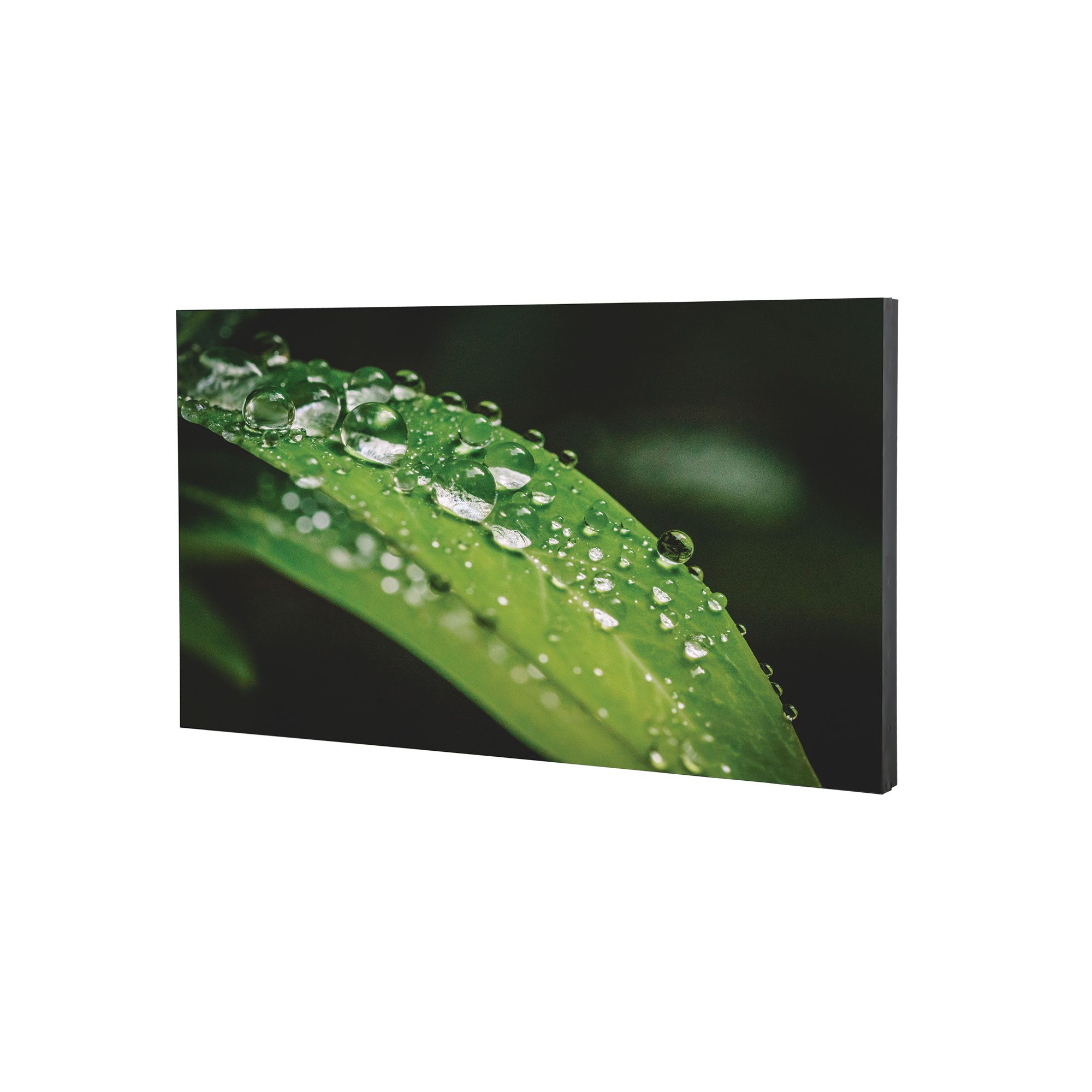

A 49 inch video wall display unit built on an ADS panel, forming a single module of the multi-screen walls used in surveillance and command centers. Factory calibration keeps colors consistent with neighboring units, and the anti-glare surface stays readable in bright rooms.
Bezel3.5 mm bezel to bezel, so the image runs on across neighboring units with almost no break.
PanelThe industrial-grade ADS panel targets continuous 24/7 duty and carries a 50,000 hour MTBF.
InputsIt carries HDMI, DVI-D, VGA, DP, RS232, audio and IR inputs, while the DP output daisy-chains the units.
SignalThe DP IN and HDMI 1 inputs take 4K at 60 Hz, and the DP OUT port passes on 4K at 30 Hz.

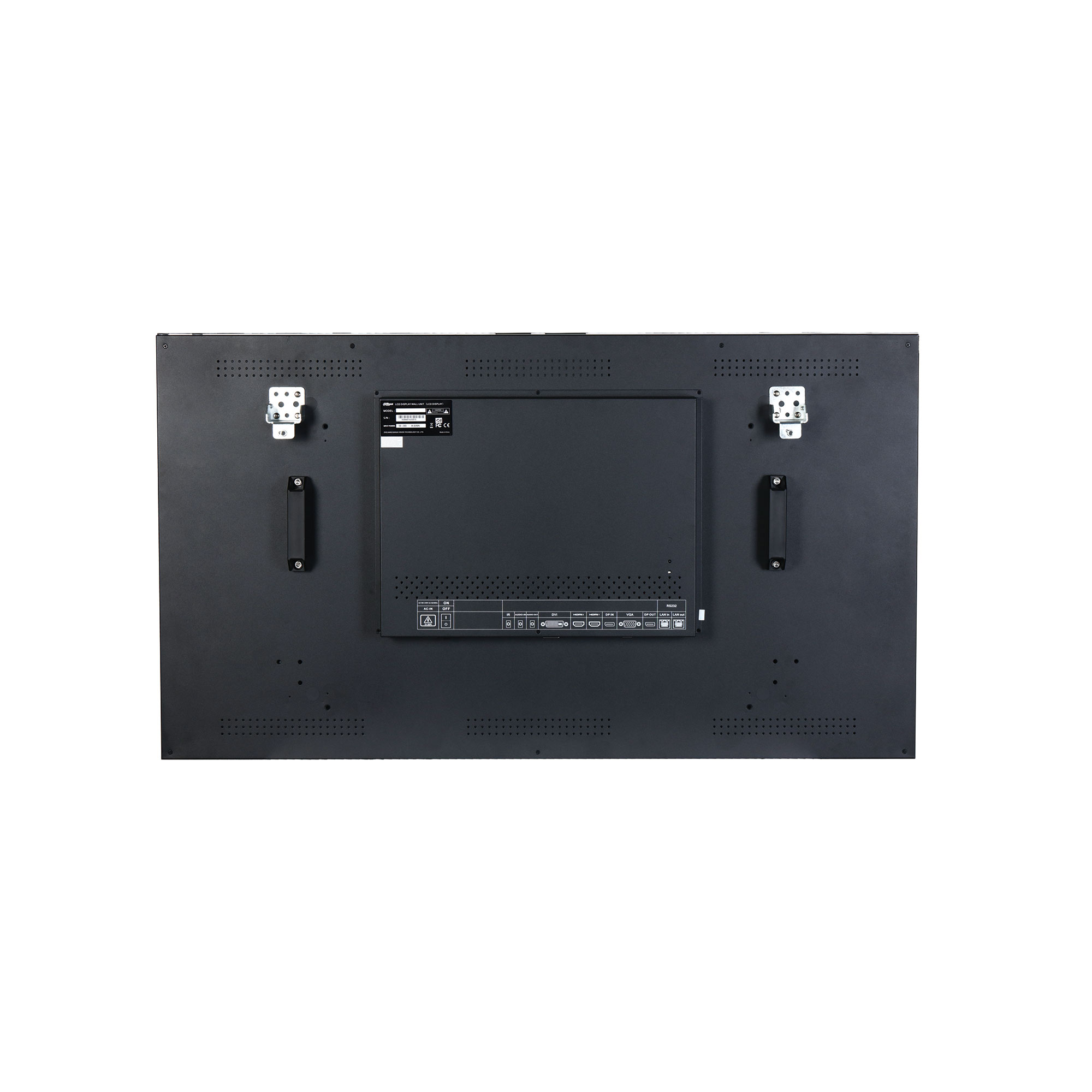

InstallationIt supports floor-standing and wall mounting; the VESA pattern is 600×400 mm with M6 screws.
Power and heatThe internal supply runs on 100 V to 240 V and draws 0.5 W in standby, while a dedicated thermal design extends service life.
