Stock Code: LCH86-MC410-B-S2
| General | |
|---|---|

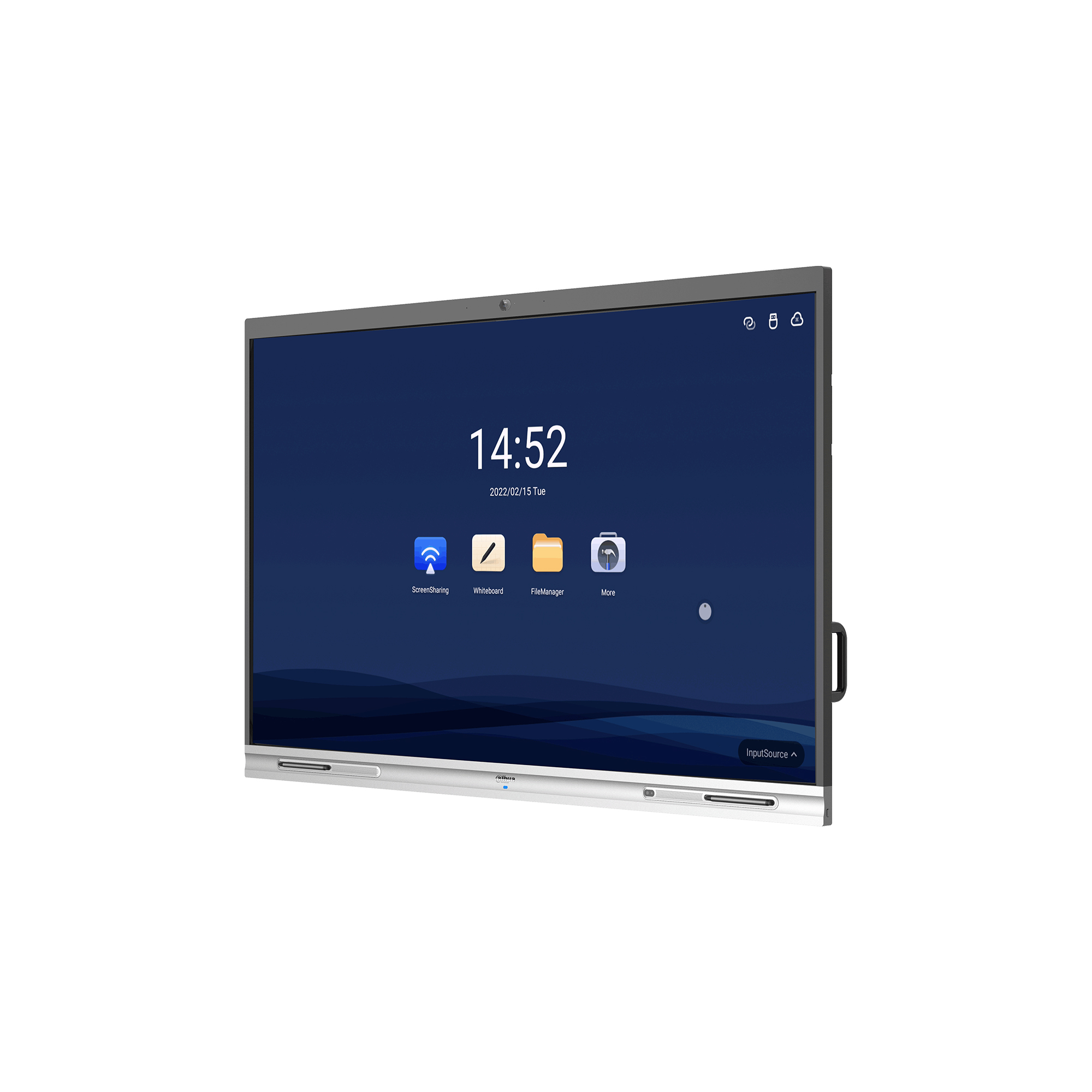

| Product Type | Smart Interactive Whiteboard |
| Model | LCH86-MC410-B |
| Series | MC410-B Series |
| Screen Size | 86 inches |
| Built-in System | |
| Operating System | Android 9.0 |
| Processor | Quad-core Cortex-A55 |
| CPU Frequency | 1.9 GHz |
| Graphics Processor | Mali-G31 MP2 |
| RAM | 4 GB |
| Internal Storage | 32 GB |
| Functions | |
| Supported Operating Systems | Windows 7 / 8 / 10 and Android |
| Wireless Screen Sharing | Wireless screen sharing from phones, computers and tablets |
| Office Applications | Supports Office software and playback of video and audio files |
| Startup Channel | Customizable startup channel support |
| Wireless Connectivity | |
| Wi-Fi | Dual-band 2.4 GHz / 5 GHz |
| Wi-Fi Hotspot | 2.4 GHz / 5 GHz; hotspot and Wi-Fi can operate simultaneously |
| LCD Panel | |
| Panel Size | 86 inches |
| Backlight | DLED |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Screen Resolution | 3840 × 2160, 4K UHD |
| User Interface Resolution | 1920 × 1080 |
| Viewing Angle | Horizontal: 178° / Vertical: 178° |
| Panel Lifespan | 50,000 hours |
| Refresh Rate | 60 Hz |
| Static Contrast Ratio | 1200:1 |
| Built-in Camera | |
| Camera Resolution | 5 MP |
| Automatic Control | Automatic white balance |
| Distortion | ≤5% |
| Maximum Camera Resolution | Android: 1080p@30fps / OPS: 2560 × 1440@30fps |
| Camera Field of View | Horizontal: 84.5° / Vertical: 54.0° / Diagonal: 93.1° |
| Connections and Ports | |
| Light Sensor | 1 |
| Power Button | 1, located on the right side |
| Front USB Port | 1 × USB 3.0, located on the left side |
| Network Port | 1 × RJ-45 |
| USB Ports | 3 × USB 3.0 / 1 × Micro USB |
| RS-232 | 1 × RS-232 |
| Video Input | 1 × HDMI IN |
| Audio Output | 1 × 3.5 mm Line Out |
| Touch Port | 1 × Touch |
| Infrared Receiver | 1 × IrDA |
| Touchscreen | |
| Touch Technology | Infrared IR touch technology |
| Response Time | <10 ms |
| Touch Points | 20 points |
| Minimum Touch Size | 2 mm |
| Writing Mode | Finger and stylus pen |
| Touch Resolution | 32767 × 32767 |
| Simultaneous Multi-user Writing | 2 writing points |
| Audio and Microphone | |
| Speaker Power | 2 × 15 W full-range speakers |
| Number of Built-in Speakers | 2 |
| Number of Microphones | 2 |
| Voice Pickup Distance | 6 m–8 m far-field voice pickup |
| AGC | Yes |
| Echo Cancellation | Yes |
| Microphone Polar Pattern | Omnidirectional |
| Intelligent Noise Filtering | Yes |
| Power | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Maximum Power Consumption | 400 W |
| Standby Power Consumption | 0.5 W |
| Environmental | |
| Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | -10 °C to +50 °C |
| Operating Humidity | 10%–90% RH |
| Storage Humidity | 10%–90% RH |
| Construction | |
| Casing Material | Metal casing |
| Protective Glass | Anti-glare tempered glass with 7 Mohs hardness |
| Casing Color | Silver bottom section; black top, left and right sections |
| Dimensions and Installation | |
| Product Dimensions | 1953.0 × 87.1 × 1188.6 mm |
| VESA Mounting Pattern | 400 × 750 mm |
| Installation Type | Wall mounting or mobile stand |
| Package Contents | |
| Smart Interactive Whiteboard | 1 unit |
| Power Cord | 3 units |
| Stylus Pen | 2 units |
| Quick Start Guide | 1 unit |
| Wall Mount Bracket | 1 unit, pre-installed on the whiteboard |
| Accessory Package | 1 unit |
