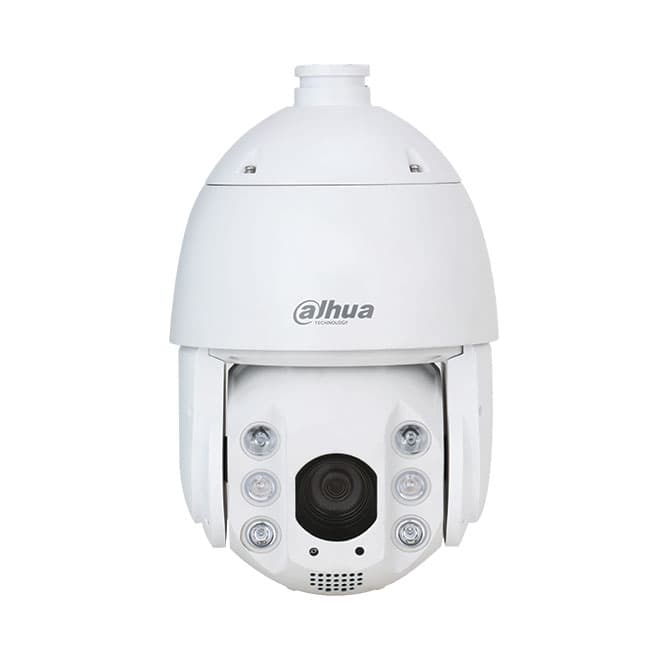

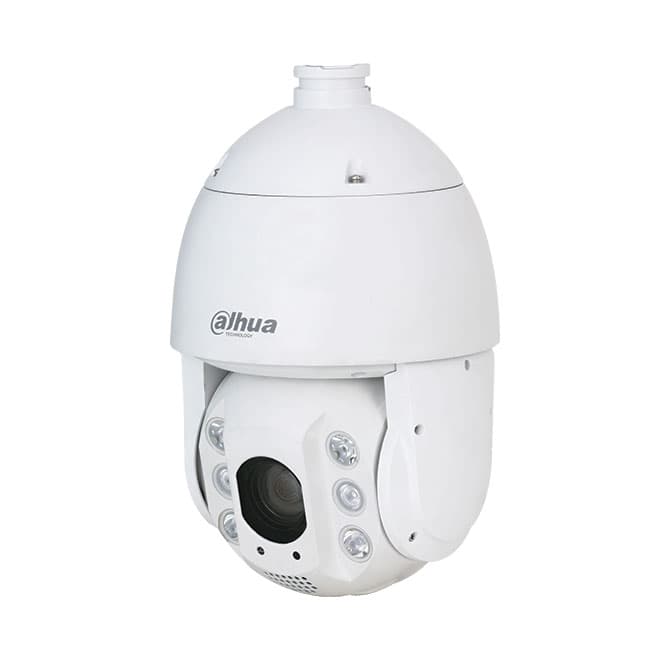

Stock Code: SD6C3425XB-HNR-A-PV1
| Camera | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8" CMOS | ||||||||
| Pixel | 4 MP | ||||||||
| Max. Resolution | 2560 (H) × 1440 (V) | ||||||||
| Electronic Shutter Speed | 1/1 s – 1/30,000 s | ||||||||
| ROM | 4 GB | ||||||||
| RAM | 1 GB | ||||||||
| Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) | ||||||||
| Illumination Distance | 150 m (492.13 ft) (IR) 50 m (164.04 ft) (white light) | ||||||||
| Illuminator Number | 2 (IR light) 2 (dual light fusion) | ||||||||
| Lens | |||||||||
| Focal Length | 4.8 mm – 120 mm | ||||||||
| Max. Aperture | F1.6 – F3.5 | ||||||||
| Field of View | H: 55.8°–2.9° V: 31.6°–1.6° D: 63.7°–3.3° | ||||||||
| Optical Zoom | 25× | ||||||||
| Focus Control | Auto; semi-auto; manual | ||||||||
| Close Focus Distance | 0.8 m – 5.0 m (2.62 ft – 16.40 ft) | ||||||||
| Iris Control | Auto; manual | ||||||||
| DORI Distance | |||||||||
| DORI Distance |
| ||||||||
| PTZ | |||||||||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° | ||||||||
| Manual Control Speed | Pan: 0.1°/s – 160°/s Tilt: 0.1°/s – 60°/s | ||||||||
| Preset Speed | Pan: 240°/s Tilt: 150°/s | ||||||||
| Preset | 300 | ||||||||
| Tour | 8 (up to 32 presets per tour) | ||||||||
| Pattern | 5 | ||||||||
| Scan | 5 | ||||||||
| Power-off Memory | Yes | ||||||||
| Idle Motion | Preset; Tour; Pattern; Scanning | ||||||||
| PTZ Protocol | DH-SD Pelco-P/D (auto recognition) | ||||||||
| Intelligence | |||||||||
| Video Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction | ||||||||
| IVS (Perimeter Protection) | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | ||||||||
| Face Detection | Yes | ||||||||
| SMD | Yes | ||||||||
| Auto Tracking | Yes | ||||||||
| Active Deterrence | |||||||||
| Light Warning | Red and blue warning light Flash duration: 5 s – 30 s Flash frequency: High, medium, low | ||||||||
| Sound Warning | Sound warning alarm: Customizable | ||||||||
| Video | |||||||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264H; MJPEG | ||||||||
| Streaming Capability | 3 streams | ||||||||
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) | ||||||||
| Video Frame Rate | Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) | ||||||||
| Bit Rate Control | CBR; VBR | ||||||||
| Video Bit Rate | Default resolution of the main stream: H264: 2816 kbps – 8192 kbps H265: 1024 kbps – 7936 kbps | ||||||||
| Day/Night | Auto (ICR); Color; B/W | ||||||||
| BLC | Yes | ||||||||
| WDR | 120 dB | ||||||||
| HLC | Yes | ||||||||
| White Balance | Auto; manual; tracking; indoor; outdoor; outdoor auto; sodium lamp; sodium lamp auto | ||||||||
| Gain Control | Auto; manual | ||||||||
| Noise Reduction | 2D NR; 3D NR | ||||||||
| Motion Detection | Yes | ||||||||
| Region of Interest (RoI) | Yes | ||||||||
| Image Stabilization | EIS | ||||||||
| Defog | Electric | ||||||||
| Digital Zoom | 16× | ||||||||
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; supports multiple colors and mosaic blocks | ||||||||
| S/N Ratio | ≥ 55 dB | ||||||||
| Audio | |||||||||
| Audio Compression | G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2-Layer2; G723; PCM | ||||||||
| Network | |||||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS | ||||||||
| User/Host | 20 (total bandwidth: 64 M) | ||||||||
| Interoperability | ONVIF (Profile S&G&T) | ||||||||
| Storage | FTP; Micro SD card (256 GB); NAS | ||||||||
| Browser | IE 7 and later versions Chrome 42 and earlier versions Firefox 52 and earlier versions Safari | ||||||||
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS; player; configtool; NVR; Smart Player | ||||||||
| Mobile Client | iOS; Android; iPhone; iPad; Windows Phone | ||||||||
| Certification | |||||||||
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 | ||||||||
| Port | |||||||||
| Audio Input | 1 (LINE IN, bare wire) | ||||||||
| Audio Output | 1 channel (LINE OUT, bare wire); built-in speaker (mutually exclusive) | ||||||||
| Alarm Input | 2-ch, digital input (0–5 VDC) | ||||||||
| Alarm Output | 1-ch | ||||||||
| Alarm Linkage | Capture; preset; tour; pattern; recording; alarm digital input; send email | ||||||||
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection | ||||||||
| Power | |||||||||
| Power Supply | 24 VDC, 2.5 A (± 25%) (included) PoE+ (802.3at) | ||||||||
| Power Consumption | Basic: 13 W Max.: 23 W (illuminator + red and blue warning light + speaker + PTZ working) | ||||||||
| Environment | |||||||||
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||
| Operating Humidity | ≤ 95% | ||||||||
| Protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection | ||||||||
| Structure | |||||||||
| Casing | ADC12 | ||||||||
| Product Dimensions | 325.3 mm × Φ202.0 mm (12.81" × Φ7.95") (H × D) | ||||||||
| Net Weight | 4.6 kg (10.14 lb) | ||||||||
| Gross Weight | 9.1 kg (20.06 lb) | ||||||||
