Covers entry points day and night from a fixed-focal housing.

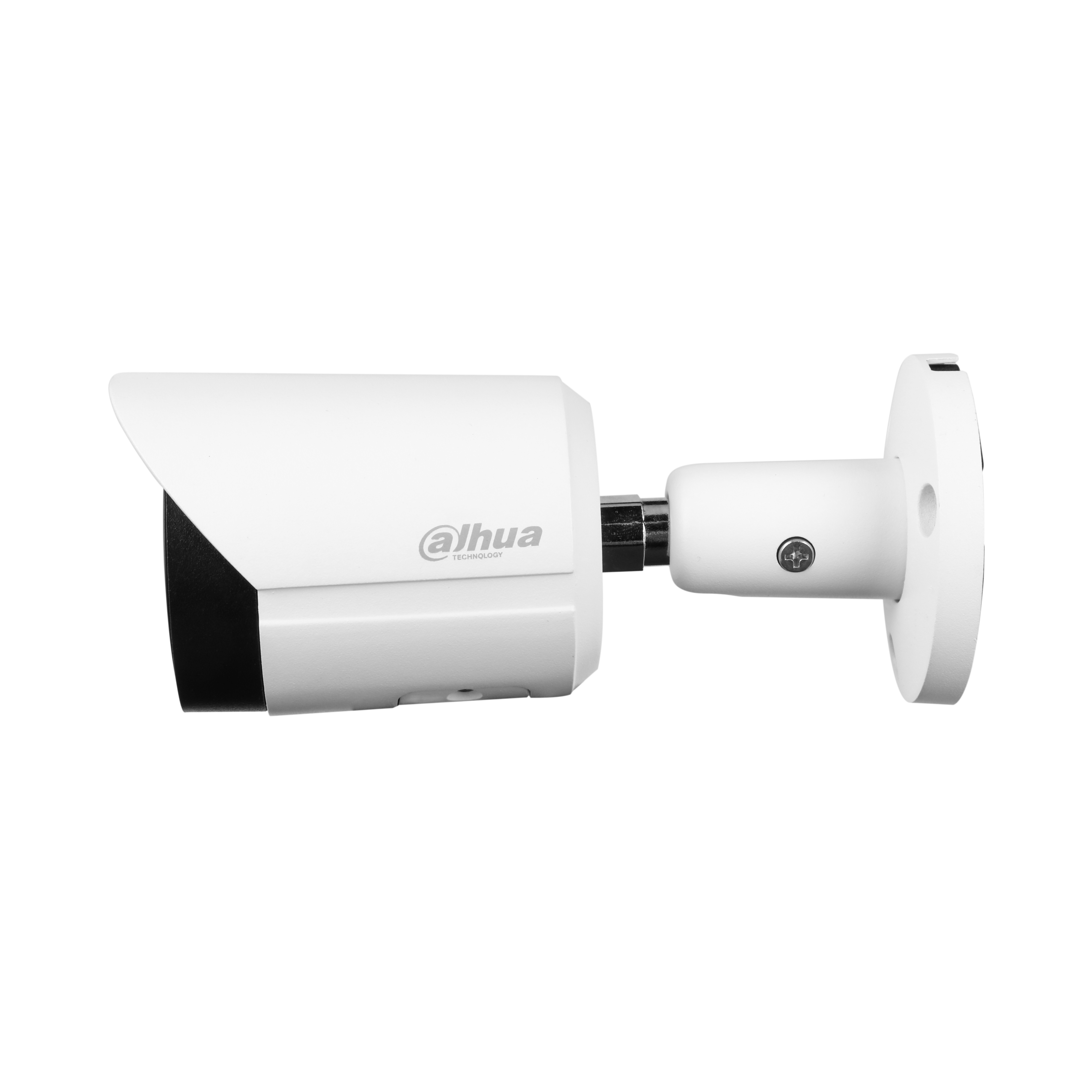

A fixed-focal bullet camera for outdoor monitoring. The 2.8 mm and 3.6 mm lens options give different fields of view, and the built-in infrared LED opens up the night to 30 m. On intrusion and tripwire events it classifies people and vehicles.

4 MPResolution

2688 × 1520Max. Resolution

2.8 mm; 3.6 mmFocal Length

30 mIllumination Distance

IP67Protection Grade

12 VDC / PoEPower Supply

Key features

30m

Infrared illumination

Opens up the scene with no ambient light.

120dB

Wide dynamic range

Opens up dark areas against backlight.

256GB

Micro SD recording

Keeps footage on the card when the network drops.

4areas

Privacy masking

Blanks out the regions that must stay off the recording.

2.5W

Basic power draw

Runs on low power from a 12 VDC supply.

IN THE FIELD

Fixed-focal setupNeeds no lens adjustment and delivers video right after mounting.

SMD PlusSeparates people and vehicles from other motion and cuts false alarms.

Built-in microphoneRecords ambient audio alongside the video.

ApplicationsOutdoor perimeter protection·Intrusion detection·Tripwire monitoring

Camera

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto / Manual 1/3 s – 1/100,000 s

Minimum Illumination

0.006 Lux@F1.6 (Color, 30 IRE); 0.0006 Lux@F1.6 (B/W, 30 IRE); 0 Lux (Illuminator on)

S/N Ratio

> 56 dB

IR Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° – 360°; Tilt: 0° – 90°; Rotation: 0° – 360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 95°; V: 52°; D: 114°. 3.6 mm: H: 78°; V: 41°; D: 94°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft); 3.6 mm: 1.6 m (5.25 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	63.6 m (208.66 ft)	25.4 m (83.33 ft)	12.7 m (41.67 ft)	6.4 m (20.99 ft)
3.6 mm	85.4 m (280.18 ft)	34.2 m (112.20 ft)	17.1 m (56.10 ft)	8.5 m (27.89 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system that defines the ability to distinguish persons or objects within an area (EN-62676-4). The figures in this table do not reflect the smart function distances. For smart function distances, refer to the installation and commissioning manual / project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (both functions support classification and accurate detection of vehicles and humans)

Smart Search

Works with Smart NVR to perform advanced search, event extraction and merging of recorded footage

Video

Video Compression

H.264H; H.265; H.264; H.264B; MJPEG (supported by sub stream only)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps) / 2560 × 1440@(1–25/30 fps). Sub stream: 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)

Stream Capability

2 streams

Resolution

4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576 / 704 × 480); VGA (640 × 480); CIF (352 × 288 / 352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps – 6144 kbps; H.265: 12 kbps – 6144 kbps

Day/Night

Auto (ICR) / Color / B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Rotation

0°/90°/180°/270° (supports 2688 × 1520 resolution and below)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detection; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36 M)

Storage

FTP; SFTP; Micro SD card (supports max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Cybersecurity

Configuration encryption; Trusted process; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; X.509 certificate generation and import

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: 2014/30/EU EMC Directive; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC / PoE (802.3af)

Power Consumption

Basic: 2.5 W (12 VDC); 3.3 W (PoE). Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Construction

Casing

Metal

Dimensions

166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H)

Net Weight

0.48 kg (1.06 lb)

Gross Weight

0.59 kg (1.30 lb)
