Watches the doorway in 2K and connects the visitor to a mobile device.

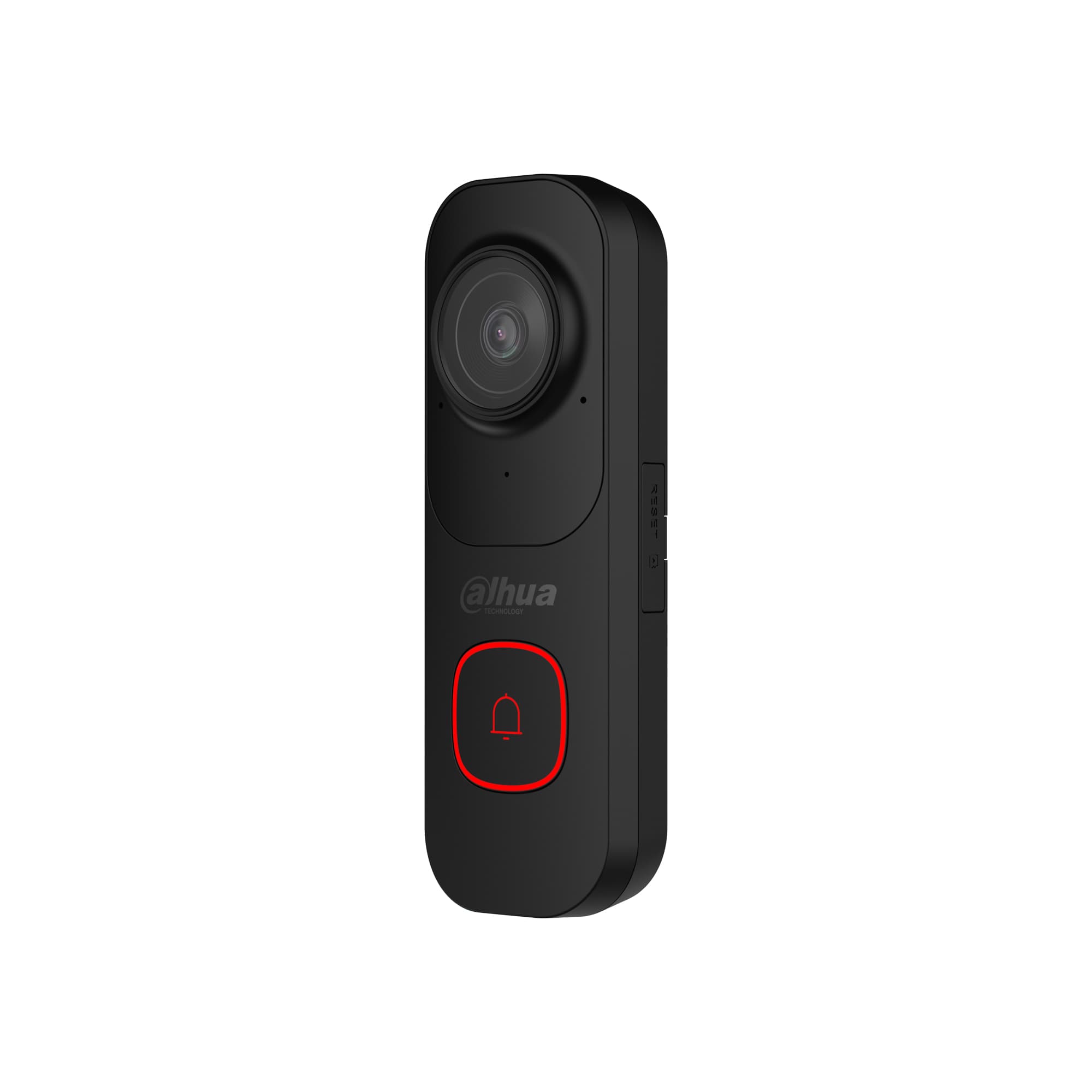

A Wi-Fi doorbell that watches the doorway at 2560 × 1440 through an ultra-wide fisheye lens. A passive infrared sensor picks up motion and sends video and audio to a mobile device. The IP65-rated housing works on an exterior door.

2560 × 1440Resolution

10 mIR LED Distance

IP65Protection Grade

256 GBMemory Card Support

10–24 V DCPower Options

Key features

4MP

2K resolution imaging

Records doorway detail at 15 fps.

143°

Wide fisheye coverage

A 143-degree diagonal field covers the doorway end to end.

10m

Night vision

Two infrared LEDs light the scene up to 10 m in the dark.

IP65rated

Weatherproof housing

Runs on an exterior door through rain and dust.

256GB

Local recording

A micro SD card keeps footage on the device.

IN DAILY USE

Sees the visitor at onceWhen the bell is pressed, video and audio go to the mobile device.

Catches motion on its ownThe passive infrared sensor tells doorway movement apart.

Short setupBluetooth pairing puts the device on the home network quickly.

Camera & Video Features

Image Sensor / Resolution

1/3" CMOS / 4MP (2560 × 1440) @15fps

Field of View / Night Vision

H: 120°, V: 66°, D: 143° / 10 m IR Distance (2 IR LEDs)

Compression / WDR

H.265; H.264 / DWDR & 3D NR Supported

Intelligence & Functions

Smart Detection

Human Detection & Vehicle Detection (AI Powered)

Audio Interface

Built-in Mic & Speaker; Two-way Audio Communication

Connectivity

Wi-Fi 6 (IEEE 802.11b/g/n/ax, 2.4 GHz); Bluetooth pairing for easy setup

General Parameters

Storage / Protection

Micro SD (Max. 256 GB) / IP65 Weatherproof

Power Input

5 VDC (USB) or 10–24 VDC / 14–24 VAC

Dimensions / Weight

135 mm × 45 mm × 24.2 mm / 0.11 kg
