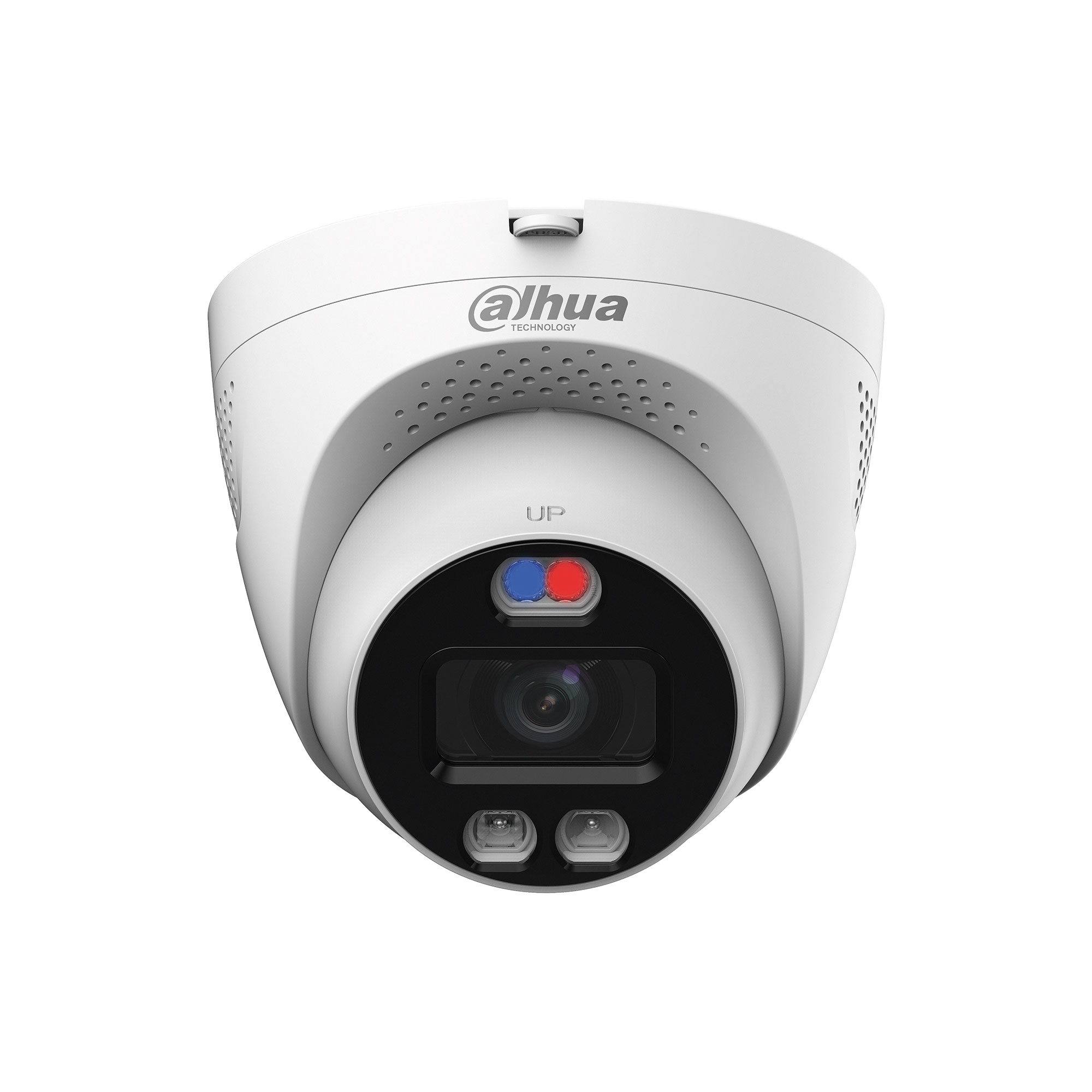

It produces color 5 MP video at night and sounds a warning on intrusion.

A 5 MP HDCVI camera built around Smart Dual Light. It runs active deterrence with red-blue light, a siren and an alarm output, and its quick-to-install body shortens setup time.

2880 × 1620Max. Resolution

5 MP CMOSSensor

F1.0Maximum Aperture

40 mIllumination distance

120 dBWDR

IP67Protection Grade

Key features

120dB

A readable image in harsh light

True WDR balances bright and dark areas within one frame.

40m

Dual light illumination

The IR and warm light illuminators light the scene up to 40 m.

110dB

Sound deterrence

The camera plays the selected warning at 110 dB, for a duration between 5 s and 60 s.

25fps

Smooth 5 MP video

The camera delivers 25 frames per second at 5 MP.

0.001lux

Color in the dark

The camera produces a color image at 0.001 lux, and it still sees at 0 lux with the illuminator on.

IN DAILY USE

One cable, four formatsIt switches between CVI, CVBS, AHD and TVI output; a single BNC port carries the link to the recorder.

It records sound tooThe built-in microphone carries ambient audio alongside the picture.

Quick mountingThe quick-to-install body shortens setup time and supports wall, ceiling and vertical pole mounting.

The 3.6 mm fixed lens is standard; the 2.8 mm lens is optional.

Camera

Pixel

5 MP

Image Sensor

5 MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100000 s; NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.0 (Color, 30 IRE)
0.0001 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2 (IR light)
2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 111°; V: 57°; D: 131°
3.6 mm: H: 89°; V: 47°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 2 m (6.56 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	66.0 m (216.54 ft)	26.4 m (86.61 ft)	13.2 m (43.31 ft)	6.6 m (21.65 ft)
3.6 mm	78.0 m (255.91 ft)	31.2 m (102.36 ft)	15.6 m (51.18 ft)	7.8 m (25.59 ft)

Video

Video Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@30 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120dB

White Balance

Auto; Area white balance

Gain Control

Auto; manual

Noise Reduction

3D NR

Illumination Mode

Smart IR&WL; WL Mode; IR Mode

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Active Deterrence

Sound Warning

Audio 1: Alarm
Audio 2: No parking here
Audio 3: Private land no entry.
Audio 4: Warning zone keep off
Audio 5: Welcome
Volume: high/medium/low;
duration: 5 s–60 s; 110 dB

Red/Blue Light Warning

Flash: 5 s–60 s; frequency: high/medium/low

Certification

Certifications

CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC

Alarm Output

1 channel

Power

Power Supply

12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max. 10.5 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP67

Structure

Casing Material

Dome (metal + plastic) + plastic enclosure

Product Dimensions

Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97")

Packaging Dimensions

148 mm × 139 mm × 137 mm (5.83" × 5.47" × 5.39")

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.53 kg (1.17 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
