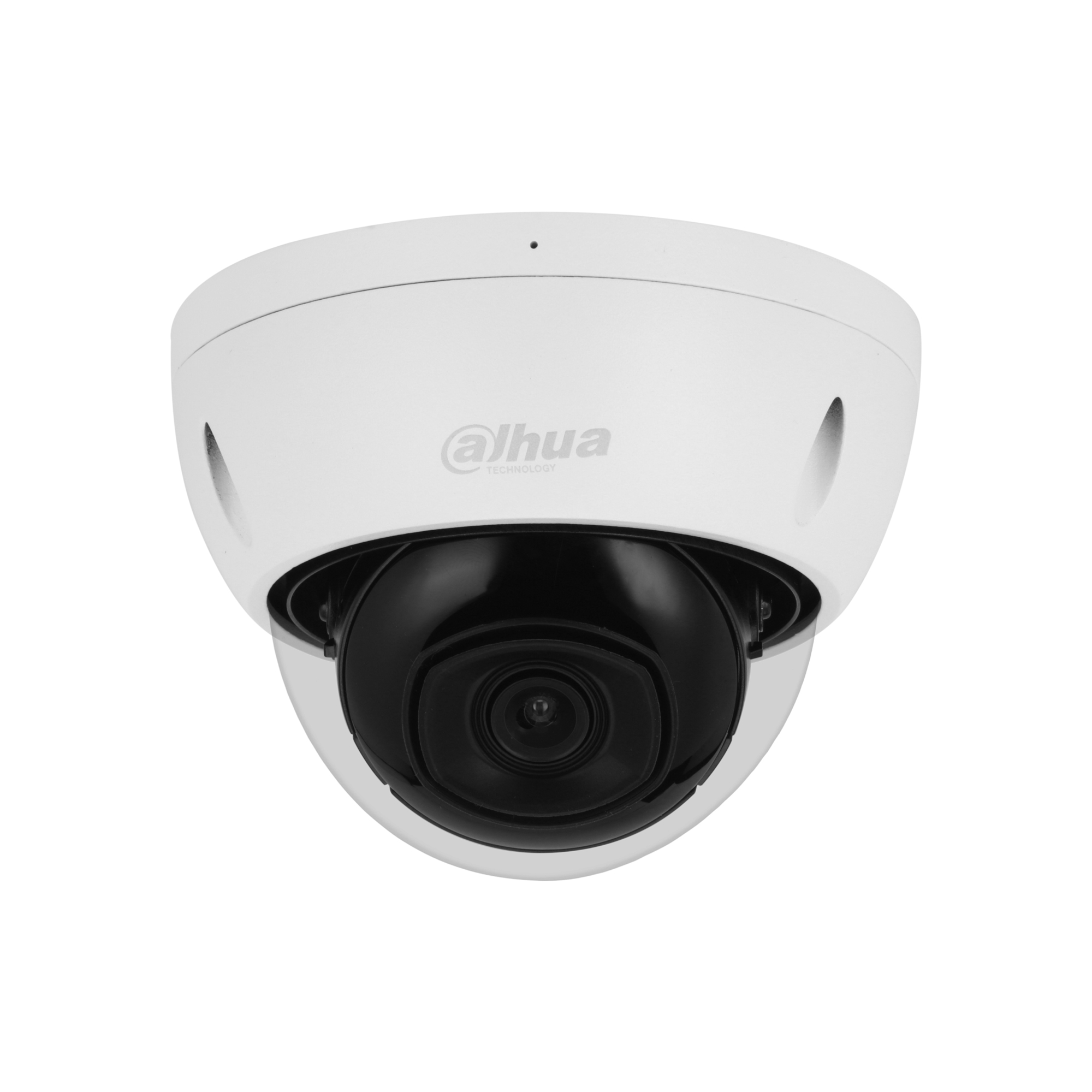

Stock Code: IPC-HDBW2541E-S
| Camera | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.7" CMOS | |||||||||||||||
| Max. Resolution | 2960 (H) × 1668 (V) | |||||||||||||||
| ROM | 128 MB | |||||||||||||||
| RAM | 256 MB | |||||||||||||||
| Scanning System | Progressive | |||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s – 1/100,000 s | |||||||||||||||
| Min. Illumination | 0.007 Lux@F1.6 (Color, 30 IRE); 0.0007 Lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) | |||||||||||||||
| S/N Ratio | > 56 dB | |||||||||||||||
| Illumination Distance | Up to 30 m (98.43 ft) (IR) | |||||||||||||||
| Illuminator On/Off Control | Auto; Manual | |||||||||||||||
| Illuminator Number | 3 (IR LED) | |||||||||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355° | |||||||||||||||
| Lens | ||||||||||||||||
| Lens Type | Fixed-focal | |||||||||||||||
| Lens Mount | M12 | |||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm | |||||||||||||||
| Max. Aperture | F1.6 | |||||||||||||||
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° 3.6 mm: H: 92°; V: 45°; D: 110° | |||||||||||||||
| Iris Control | Fixed | |||||||||||||||
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft); 3.6 mm: 1.7 m (5.58 ft) | |||||||||||||||
| DORI Distance |
| |||||||||||||||
| Intelligence | ||||||||||||||||
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | |||||||||||||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | |||||||||||||||
| Video | ||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | |||||||||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | |||||||||||||||
| Video Frame Rate | Main stream: 2960×1668@(1–20 fps) / 2688×1520@(1–25/30 fps) Sub stream: 704×576@(1–25 fps) / 704×480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |||||||||||||||
| Stream Capability | 2 streams | |||||||||||||||
| Resolution | 5M (2960×1668/2880×1620); 4M (2688×1520); 3M (2048×1536/2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240) | |||||||||||||||
| Bit Rate Control | CBR/VBR | |||||||||||||||
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps | |||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | |||||||||||||||
| BLC | Yes | |||||||||||||||
| HLC | Yes | |||||||||||||||
| WDR | 120 dB | |||||||||||||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | |||||||||||||||
| Gain Control | Auto; Manual | |||||||||||||||
| Noise Reduction | 3D NR | |||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | |||||||||||||||
| Region of Interest (RoI) | Yes (4 areas) | |||||||||||||||
| Smart Illumination | Yes | |||||||||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) | |||||||||||||||
| Mirror | Yes | |||||||||||||||
| Privacy Masking | 4 areas | |||||||||||||||
| Audio | ||||||||||||||||
| Built-in MIC | Yes | |||||||||||||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726 | |||||||||||||||
| Alarm | ||||||||||||||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception | |||||||||||||||
| Network | ||||||||||||||||
| Network Port | RJ-45 (10/100 Base-T) | |||||||||||||||
| SDK and API | Yes | |||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour; P2P | |||||||||||||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | |||||||||||||||
| User/Host | 20 (Total bandwidth: 48 M) | |||||||||||||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS | |||||||||||||||
| Browser | IE, Chrome, Firefox | |||||||||||||||
| Management Software | SmartPSS Lite; DSS; DMSS | |||||||||||||||
| Mobile Client | iOS; Android | |||||||||||||||
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | |||||||||||||||
| Certification | ||||||||||||||||
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | |||||||||||||||
| Power | ||||||||||||||||
| Power Supply | 12 VDC / PoE (802.3af) | |||||||||||||||
| Power Consumption | Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (H.265+ max. resolution + max. stream + WDR + IR intensity + IVS): 5 W (12 VDC); 6.1 W (PoE) | |||||||||||||||
| Environment | ||||||||||||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |||||||||||||||
| Operating Humidity | ≤ 95% | |||||||||||||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | |||||||||||||||
| Storage Humidity | ≤ 95% | |||||||||||||||
| Protection | IP67; IK10 | |||||||||||||||
| Structure | ||||||||||||||||
| Casing Material | Metal | |||||||||||||||
| Product Dimensions | 81.0 mm × Φ109.9 mm (3.19" × Φ4.33") | |||||||||||||||
| Net Weight | 0.34 kg (0.75 lb) | |||||||||||||||
| Gross Weight | 0.49 kg (1.08 lb) | |||||||||||||||
