Watches from a vandal-resistant housing and sets its framing remotely.

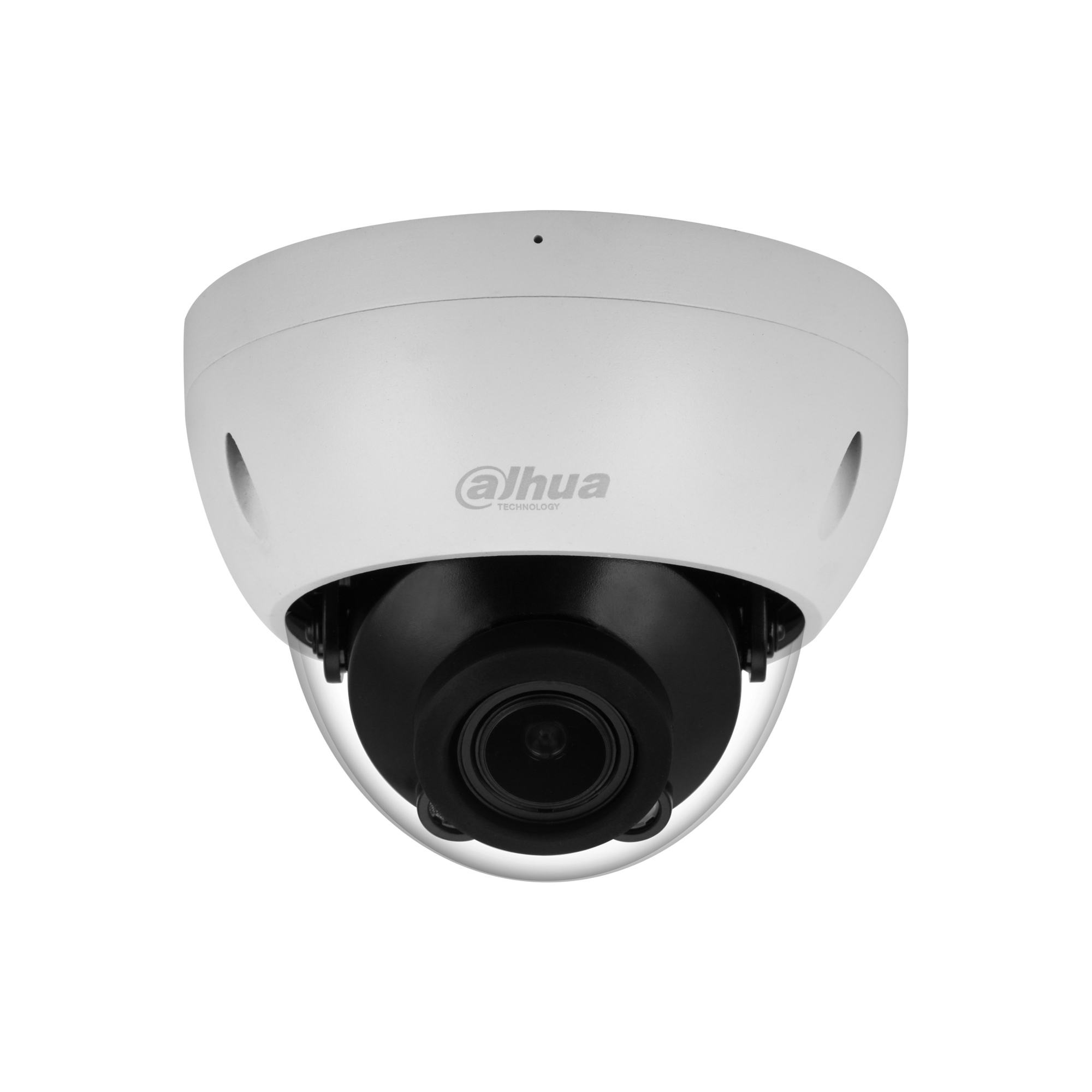

A dome network camera with a motorized vari-focal lens that shifts the field of view between 2.7 mm and 13.5 mm. WizSense analytics separate people from vehicles and raise tripwire and intrusion alarms on that distinction. The metal housing carries IP67 and IK10 ratings against water and impact.

5 MPResolution

2960 × 1668Max. resolution

2.7 – 13.5 mmFocal length

40 mIllumination distance

IP67 / IK10Protection grade

12 VDC / PoEPower supply

Key features

5MP

Detail that holds up

A 1/2.7 inch CMOS sensor records at 2960 × 1668 pixels.

120dB

Balances harsh contrast

Wide dynamic range keeps facial detail in backlit scenes.

40m

Vision after dark

In darkness two infrared LEDs light the scene up to 40 meters.

2.7 – 13.5mm

Framing set from the desk

The motorized lens changes angle and focus from the management interface.

256GB

Recording on board

The Micro SD card slot takes cards of up to 256 GB.

IN DAILY USE

Cuts down false alarmsSMD Plus filters out shadows and foliage and reports only human and vehicle events.

Fine-tuning after installThe motorized lens corrects the framing without a ladder.

Recording survives an outageThe built-in microphone captures audio, and the camera keeps video on the card when the network drops.

ApplicationsIndoor and sheltered outdoor monitoring·Perimeter protection lines·Crossings that need vehicle and human separation

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s – 1/100,000 s

Min. Illumination

0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

40 m (131.23 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7 mm – 13.5 mm

Max. Aperture

F1.5

Field of View

H: 113°–31°; V: 58°–18°; D: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W	64.0 m (210.00 ft)	25.6 m (84.00 ft)	12.8 m (42.00 ft)	6.4 m (21.00 ft)
T	210.0 m (689.00 ft)	84.0 m (275.60 ft)	42.0 m (137.80 ft)	21.0 m (68.90 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2960 × 1668 @(1–20 fps)/2688 × 1520 @(1–25/30 fps)
Sub stream: 704 × 576 @(1–25 fps)/704 × 480 @(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps – 8192 kbps
H.265: 12 kbps – 8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only -ZAS supports); SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port) (Only -ZAS supports)

Audio Output

1 channel (RCA port) (Only -ZAS supports)

Alarm Input

1 channel in: 5mA 3V–5V DC (Only -ZAS supports)

Alarm Output

1 channel out: 300mA 12V DC (Only -ZAS supports)

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

-ZS:
Basic: 2.4 W (12 VDC); 3 W (PoE)
Max. (H.265+ max. resolution + max. stream + WDR + IR intensity + IVS): 6.1 W (12 VDC); 7.3 W (PoE)
-ZAS:
Basic: 2.4 W (12 VDC); 3 W (PoE)
Max. (H.265+ max. resolution + max. stream + WDR + IR intensity + IVS): 6.2 W (12 VDC); 7.4 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

93.4 mm × Φ122 mm (3.68" × Φ4.80")

Net Weight

-ZS: 0.50 kg (1.10 lb)
-ZAS: 0.51 kg (1.12 lb)

Gross Weight

-ZS: 0.66 kg (1.46 lb)
-ZAS: 0.67 kg (1.48 lb)
