Sets its framing remotely and sees up to 40 meters in the dark.

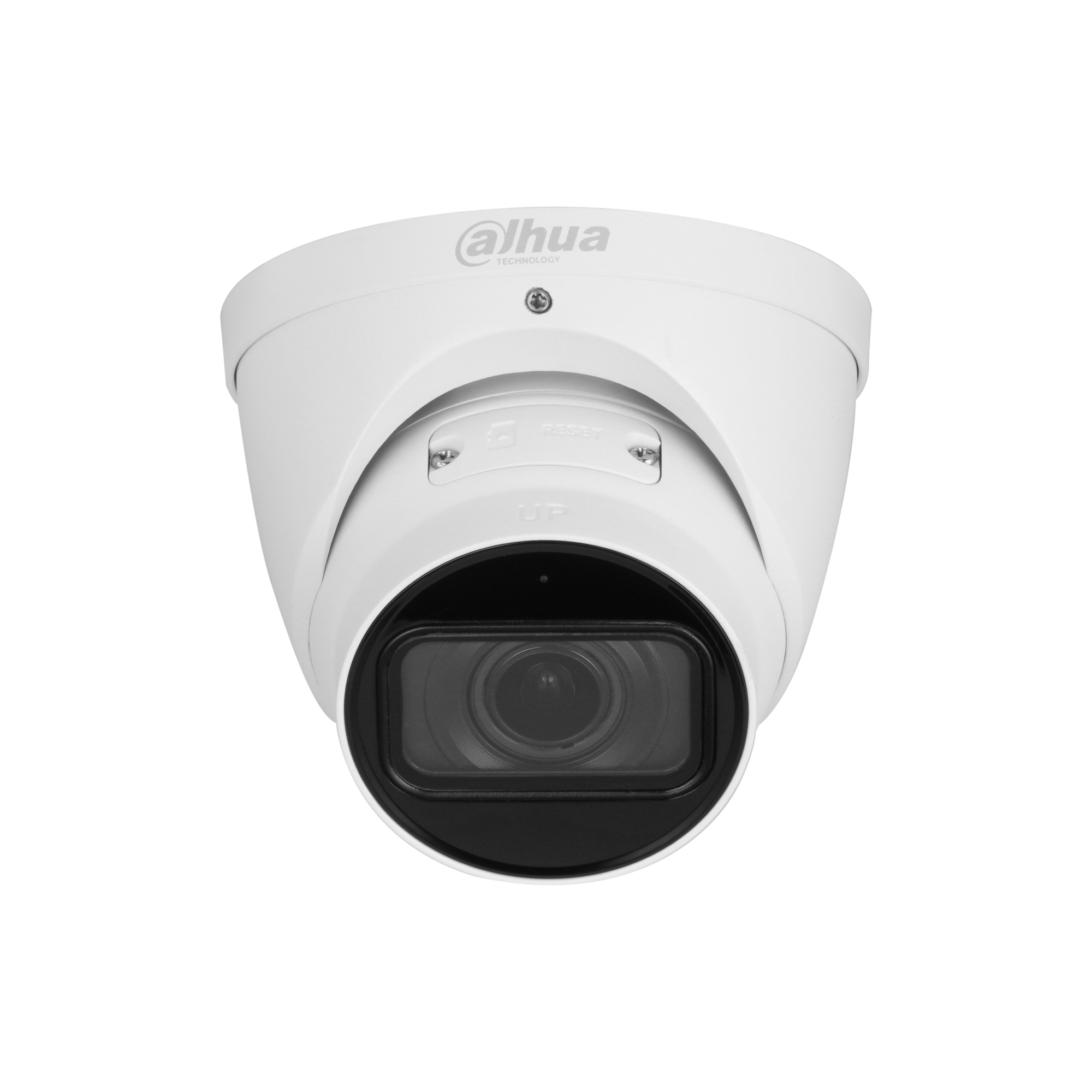

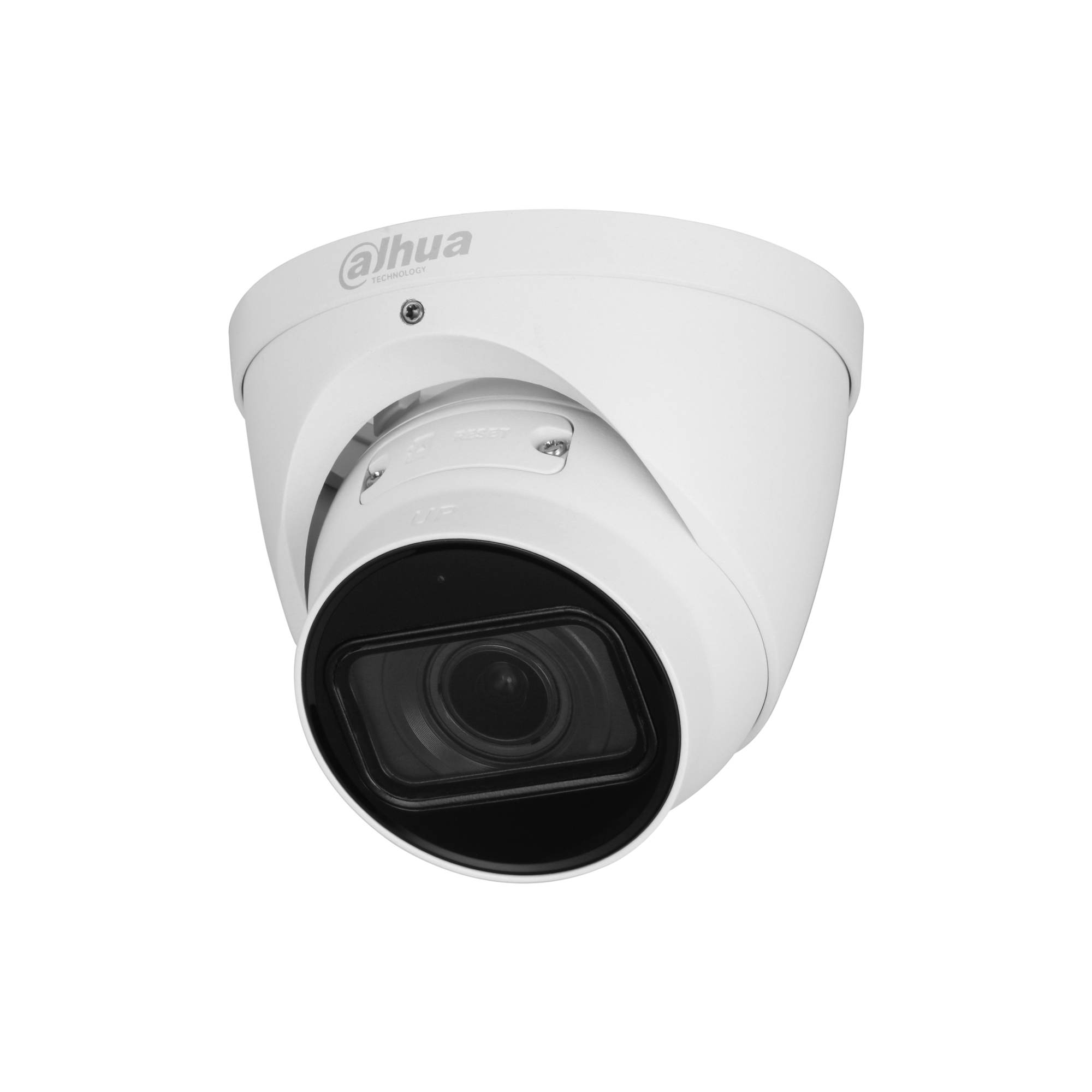

An eyeball network camera with a motorized vari-focal lens that shifts the field of view between 2.7 mm and 13.5 mm. WizSense analytics separate people from vehicles and raise motion alarms on that distinction. The IP67-rated metal housing seals the camera against rain and dust.

5 MPResolution

2960 × 1668Max. resolution

2.7 – 13.5 mmFocal length

40 mIllumination distance

IP67Protection grade

12 VDC / PoEPower supply

Key features

5MP

Detail that holds up

A 1/2.7 inch CMOS sensor records at 2960 × 1668 pixels.

120dB

Balances harsh contrast

Wide dynamic range keeps facial detail in front of a bright window.

40m

Vision after dark

In darkness two infrared LEDs light the scene up to 40 meters.

2.7 – 13.5mm

Framing set from the desk

The motorized lens changes angle and focus from the management interface.

256GB

Recording on board

The Micro SD card slot takes cards of up to 256 GB.

IN DAILY USE

Cuts down false alarmsSMD 4.0 and AI SSA filter out shadows and foliage and report human and vehicle events.

Fine-tuning after installThe motorized lens corrects the framing without a ladder.

Recording survives an outageThe camera keeps video on the card when the network drops and resumes when the link returns.

ApplicationsIndoor and sheltered outdoor monitoring·Perimeter protection lines·Crossings that need vehicle and human separation

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination

0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (IR on)

S/N Ratio

> 56 dB

IR Distance

40 m (131.23 ft)

IR On/Off Control

Auto / Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Angle of View

Horizontal: 99°–28°; Vertical: 71°–21°; Diagonal: 134°–35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
Wide	64 m	25.6 m	12.8 m	6.4 m
Tele	210 m	84 m	42 m	21 m

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion (supports vehicle and human classification)

AI SSA

Yes

Quick Pick

Quickly locate target of interest with AI NVR

Smart Search

Detailed search within event videos with smart NVR

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2960×1668 @ (1–20 fps), 2688×1520 @ (1–25/30 fps); Sub stream: 704×576 @ (1–25 fps), 704×480 @ (1–30 fps); Third stream: 1920×1080 @ (1–25/30 fps)

Stream Capability

3 streams

Resolution

5M, 4M, 3.6M, 3M, 1080p, 1.3M, 720p, D1, CIF, VGA

Bit Rate Control

CBR / VBR

Video Bit Rate

H.264/H.265: 3 kbps–8192 kbps

Day/Night

Auto (ICR) / Color / B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-Adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

On / Off (4 rectangular zones)

Image Stabilization

Electronic (EIS)

Region of Interest (RoI)

Yes (4 zones)

Defog

Yes

AFSA

Yes

Image Rotation

0°/90°/180°/270° (90°/270° supported at 2688×1520 and lower resolution)

Mirror

Yes

Privacy Masking

4 zones

Audio

Built-in Mic

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Events

No SD card/SD card full/SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, scene changing, audio detection, voltage detection, defocus, SMD, security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP

Cybersecurity

Video/firmware/configuration encryption, IP/MAC filtering, X.509 certificate, HTTPS, syslog, 802.1x, secure boot/operation/upgrade

Interoperability

ONVIF (Profile S/G/T), CGI, P2P, Milestone, Genetec

User/Host

20 users (total bandwidth: 64 Mbps)

Storage

FTP, SFTP, Micro SD card (max. 256 GB), NAS

Browser

IE11, Chrome, Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile App

iOS, Android

Certifications

CE-LVD: EN62368-1; CE-EMC: 2014/30/EU; FCC Part 15; UL/CSA 62368-1

Power

Power Supply

12 VDC / PoE (802.3af)

Power Consumption

Basic: 5.7 W (12 VDC), 6.4 W (PoE); Max: 8.9 W (12 VDC), 10.2 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C

Storage Temperature

–40 °C to +60 °C

Ingress Protection

IP67

Structure

Casing

Metal

Dimensions

108.3 mm × Φ122 mm

Net Weight

715 g (1.58 lb)

Gross Weight

915 g (2.02 lb)
