Ports
RJ-45 10/100/1000BASE-T Ports	6
100/1000BASE-X SFP Slots	2 (each supporting 1G or 100M; with Digital Diagnostic Monitoring, DDM)
10/100/1000 Combo Ports	0
SFP+ 10 Gigabit Uplink Ports	0
RJ-45 Console Port	1
Top Panel Connectors	1 × RJ-45 serial console, 2 × DC power input, 1 × alarm port
Performance (Switching)
Switch Architecture	L2 wire-speed / non-blocking switching engine
Switching Capacity	16 Gbps
Forwarding Rate	17.9 Mpps
Throughput (packets per second)	14.8 Mpps
MAC Address Table	8K
VLAN IDs	4096
Jumbo Frames	9 KB
Flash Memory	16 MB
DRAM	128 MB
Auto-negotiation / Auto-MDI/MDI-X	Yes
Layer 2 Features
Flow Control	IEEE 802.3x for full-duplex mode, Back-Pressure for half-duplex mode
Storm Control	Broadcast, Multicast, Flooding
Spanning Tree Protocol	IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP
Ring Redundancy	E-Ring fast ring fail-over protection, recovery time < 20 ms
VLAN	4096 VLANs; port-based VLANs, IEEE 802.1Q tag-based VLANs, RADIUS-assigned VLANs, GVRP VLAN, IEEE 802.1ad Double Tagging (Q-in-Q)
Link Aggregation	Static trunk, IEEE 802.3ad dynamic LACP; up to 8 ports per trunk group, 6 trunk groups (2 ports per group)
Multicast Protocols	255 multicast groups, IGMP v1/v2 Snooping, IGMP querying, IGMP immediate leave and leave proxy, IGMP Filtering/Throttling
Quality of Service (QoS)
Priority Queues	8 priority queues per port
Traffic Scheduling	SPQ (Strict Priority Queuing), WRR (Weighted Round Robin)
Traffic Classification (CoS)	802.1p based CoS / port
Traffic Shaper	Port-based shaping
Dynamic QoS Assignment	Yes
Security
Port Security	Yes; limits the number of devices using a switch port and protects against MAC flooding attacks
Network Access Control	IEEE 802.1X IP-based authentication, IEEE 802.1X MAC-based authentication
Authentication Methods	Username/password, local database authentication, remote authentication via RADIUS, remote authentication via TACACS+
AAA	RADIUS / TACACS+; RADIUS client for management
Secure Access	HTTPS and SSL (secured web), SSH (secured Telnet session)
Access Control List (ACL)	Yes
Management
Management Level	Managed Layer 2 (Web, CLI, SNMP)
Management Interfaces	Cisco-like CLI via console port, web-based management, SNMP v1, v2c, v3
Terminal Setting	5 sessions
Software / Configuration Upgrade	Firmware and configuration upgrade/restore by TFTP
RMON	RMON1 (1, 2, 3, 9 group)
DHCP	Client, Relay, Server, Snooping, Option 82
Port Mirroring	Per VLAN mirroring, port mirroring
Diagnostics	Ethernet copper connection diagnostic tool, remote Ping
Event / Error Logging	Syslog (local Flash)
Other Management Features	NTP, LLDP (IEEE 802.1ab), LLDP-MED, system status (device info/status, Ethernet port status)
Power
Power Input	Redundant input terminals (dual DC input)
Input Voltage Range	12–58 VDC
Reverse Power Protection	Yes
Transient Protection	> 15,000 watts peak
Power Consumption	9.96 W @ 12 VDC, 10.1 W @ 48 VDC
Note	The switch does not include a PSU (power supply unit); the PSU must be purchased separately.
Alarm
Alarm Relay Output Carrying Capacity	Max. 0.5 A @ 24 VDC
System Alarm Notification	Configurable alarm profile: Alarm LED, alarm relay, SNMP Traps
Physical
Dimensions (W × D × H)	154 × 109 × 60 mm (6.09 × 4.29 × 2.36")
Weight	1.1 kg (2.42 lb)
Installation Options	DIN-rail mounting, wall mounting
Enclosure / Ingress Protection	IP30 metal case
Environmental
Operating Temperature	-40°C ~ +75°C (-40°F ~ 167°F); cold startup at -40°C
Storage Temperature	-40°C ~ +85°C (-40°F ~ 185°F)
Operating Humidity	5% to 95% (non-condensing)
MTBF	> 25 years
Shock / Freefall / Vibration	IEC 60068-2-27 / IEC 60068-2-32 / IEC 60068-2-6
Standards and Compliance
Ethernet Standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3x Flow Control, IEEE 802.3az EEE, IEEE 802.1ab LLDP, IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1ad Double Tagging (Q-in-Q), IEEE 802.1x Authentication, IEEE 802.3ad LACP
Supported RFC / MIB	RFC 2863, RFC 2233, RFC 1213 MIB II, RFC 2819, RFC 1215, RFC 2674, RFC 3635, RFC 2236 (IGMPv2), RFC 3376 (IGMPv3), RFC 2710 (MLD), RFC 2464, RFC 4291, RFC 4884
EMC	CE/FCC Part 15 Class A, CISPR 22 Class A, EN 61000-6-2:2005+AC:2005, EN 61000-6-4:2007+A1:2011, IEC 61000-4-2 ESD (Contact: 6 kV, Air: 8 kV), IEC 61000-4-3 RS (80 MHz to 2700 MHz: 20 V/m), IEC 61000-4-4 EFT (Power: 4 kV, Signal: 4 kV), IEC 61000-4-5 Surge (Power: 2 kV, Signal: 2 kV), IEC 61000-4-6 CS (Signal: 10 V), IEC 61000-4-8:2009, IEC 61000-4-9:1993+A1:2000
Safety	UL-60950
Railway Traffic	EN 50121-4 compliance
Environmental Regulation	RoHS (Pb free) and WEEE compliant
Certifications	FCC Class A, CE, CB, UL

Builds a managed network in a field panel with six Gigabit ports and two SFP slots.

The fanless IP30 metal case clips onto a DIN rail inside an automation cabinet and cold-starts at -40°C. Layer 2 management, ring redundancy and QoS prioritization run in the same body, while two SFP slots carry an uplink to a remote point.

6RJ-45 Ethernet ports

2SFP slots

16 GbpsSwitching capacity

-40°C ~ +75°COperating temperature

IP30Protection grade

Key features

16Gbps

Non-blocking switching

Every port runs at wire speed at the same time.

20ms

E-Ring path protection

Moves traffic to the backup path when a link breaks.

4096VLAN

Large VLAN pool

Defines port, tag, RADIUS and GVRP based groups.

255groups

Multicast control

IGMP snooping forwards a stream only to the ports that ask for it.

25years

Calculated MTBF

The fanless metal case holds no moving parts.

IN THE FIELD

DIN-rail and wall mountingClips onto the DIN rail in a cabinet and uses the wall plate in tight enclosures.

Redundant DC inputTakes two separate supply terminals and protects against reverse connection.

Alarm relay and LED warningPulls the relay on a supply or port fault and carries the warning to the panel.

ApplicationsRailway applications·Industrial field cabinets·Upgrading Fast Ethernet networks to Gigabit

The switch does not include a power supply unit; order the PSU separately.

Ports

RJ-45 10/100/1000BASE-T Ports

100/1000BASE-X SFP Slots

2 (each supporting 1G or 100M; with Digital Diagnostic Monitoring, DDM)

10/100/1000 Combo Ports

SFP+ 10 Gigabit Uplink Ports

RJ-45 Console Port

Top Panel Connectors

1 × RJ-45 serial console, 2 × DC power input, 1 × alarm port

Performance (Switching)

Switch Architecture

L2 wire-speed / non-blocking switching engine

Switching Capacity

16 Gbps

Forwarding Rate

17.9 Mpps

Throughput (packets per second)

14.8 Mpps

MAC Address Table

VLAN IDs

4096

Jumbo Frames

9 KB

Flash Memory

16 MB

DRAM

128 MB

Auto-negotiation / Auto-MDI/MDI-X

Yes

Layer 2 Features

Flow Control

IEEE 802.3x for full-duplex mode, Back-Pressure for half-duplex mode

Storm Control

Broadcast, Multicast, Flooding

Spanning Tree Protocol

IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP

Ring Redundancy

E-Ring fast ring fail-over protection, recovery time < 20 ms

VLAN

4096 VLANs; port-based VLANs, IEEE 802.1Q tag-based VLANs, RADIUS-assigned VLANs, GVRP VLAN, IEEE 802.1ad Double Tagging (Q-in-Q)

Link Aggregation

Static trunk, IEEE 802.3ad dynamic LACP; up to 8 ports per trunk group, 6 trunk groups (2 ports per group)

Multicast Protocols

255 multicast groups, IGMP v1/v2 Snooping, IGMP querying, IGMP immediate leave and leave proxy, IGMP Filtering/Throttling

Quality of Service (QoS)

Priority Queues

8 priority queues per port

Traffic Scheduling

SPQ (Strict Priority Queuing), WRR (Weighted Round Robin)

Traffic Classification (CoS)

802.1p based CoS / port

Traffic Shaper

Port-based shaping

Dynamic QoS Assignment

Yes

Security

Port Security

Yes; limits the number of devices using a switch port and protects against MAC flooding attacks

Network Access Control

IEEE 802.1X IP-based authentication, IEEE 802.1X MAC-based authentication

Authentication Methods

Username/password, local database authentication, remote authentication via RADIUS, remote authentication via TACACS+

AAA

RADIUS / TACACS+; RADIUS client for management

Secure Access

HTTPS and SSL (secured web), SSH (secured Telnet session)

Access Control List (ACL)

Yes

Management

Management Level

Managed Layer 2 (Web, CLI, SNMP)

Management Interfaces

Cisco-like CLI via console port, web-based management, SNMP v1, v2c, v3

Terminal Setting

5 sessions

Software / Configuration Upgrade

Firmware and configuration upgrade/restore by TFTP

RMON

RMON1 (1, 2, 3, 9 group)

DHCP

Client, Relay, Server, Snooping, Option 82

Port Mirroring

Per VLAN mirroring, port mirroring

Diagnostics

Ethernet copper connection diagnostic tool, remote Ping

Event / Error Logging

Syslog (local Flash)

Other Management Features

NTP, LLDP (IEEE 802.1ab), LLDP-MED, system status (device info/status, Ethernet port status)

Power

Power Input

Redundant input terminals (dual DC input)

Input Voltage Range

12–58 VDC

Reverse Power Protection

Yes

Transient Protection

> 15,000 watts peak

Power Consumption

9.96 W @ 12 VDC, 10.1 W @ 48 VDC

Note

The switch does not include a PSU (power supply unit); the PSU must be purchased separately.

Alarm

Alarm Relay Output Carrying Capacity

Max. 0.5 A @ 24 VDC

System Alarm Notification

Configurable alarm profile: Alarm LED, alarm relay, SNMP Traps

Physical

Dimensions (W × D × H)

154 × 109 × 60 mm (6.09 × 4.29 × 2.36")

Weight

1.1 kg (2.42 lb)

Installation Options

DIN-rail mounting, wall mounting

Enclosure / Ingress Protection

IP30 metal case

Environmental

Operating Temperature

-40°C ~ +75°C (-40°F ~ 167°F); cold startup at -40°C

Storage Temperature

-40°C ~ +85°C (-40°F ~ 185°F)

Operating Humidity

5% to 95% (non-condensing)

MTBF

> 25 years

Shock / Freefall / Vibration

IEC 60068-2-27 / IEC 60068-2-32 / IEC 60068-2-6

Standards and Compliance

Ethernet Standards

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X, IEEE 802.3x Flow Control, IEEE 802.3az EEE, IEEE 802.1ab LLDP, IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1ad Double Tagging (Q-in-Q), IEEE 802.1x Authentication, IEEE 802.3ad LACP

Supported RFC / MIB

RFC 2863, RFC 2233, RFC 1213 MIB II, RFC 2819, RFC 1215, RFC 2674, RFC 3635, RFC 2236 (IGMPv2), RFC 3376 (IGMPv3), RFC 2710 (MLD), RFC 2464, RFC 4291, RFC 4884

EMC

CE/FCC Part 15 Class A, CISPR 22 Class A, EN 61000-6-2:2005+AC:2005, EN 61000-6-4:2007+A1:2011, IEC 61000-4-2 ESD (Contact: 6 kV, Air: 8 kV), IEC 61000-4-3 RS (80 MHz to 2700 MHz: 20 V/m), IEC 61000-4-4 EFT (Power: 4 kV, Signal: 4 kV), IEC 61000-4-5 Surge (Power: 2 kV, Signal: 2 kV), IEC 61000-4-6 CS (Signal: 10 V), IEC 61000-4-8:2009, IEC 61000-4-9:1993+A1:2000

Safety

UL-60950

Railway Traffic

EN 50121-4 compliance

Environmental Regulation

RoHS (Pb free) and WEEE compliant

Certifications

FCC Class A, CE, CB, UL

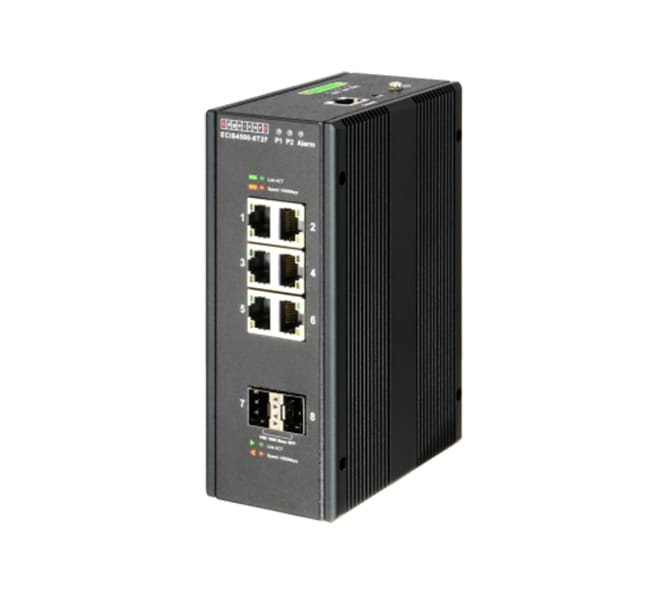

Industrial Gigabit Ethernet Switch with 6 x 10/100/1000BASE-T Ports, 2 x 10/100/1000BASE-X SFP Slots
