Stock Code: NVR5864-EI
| System | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| AcuPick (AI by Camera + Recorder) | Max. 16-channel, 1 combined event per channel/s |
| Perimeter Protection | |
| Perimeter Performance, AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance, AI by Camera (Number of Channels) | 16 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance, AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance, AI by Camera (Number of Channels) | 16 channels |
| Face Recognition | |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance, AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance, AI by Camera (Number of Channels) | 16 channels |
| SMD Plus | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| Video Metadata | |
| Metadata Performance, AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| Vehicle License Plate Comparison | |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
| Audio and Video | |
| Access Channel | 64 |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Video Output | 2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| RAID | RAID 0/1/5/6/10 |
| Alarm | |
| General Alarm | Motion detection; privacy masking; local alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |

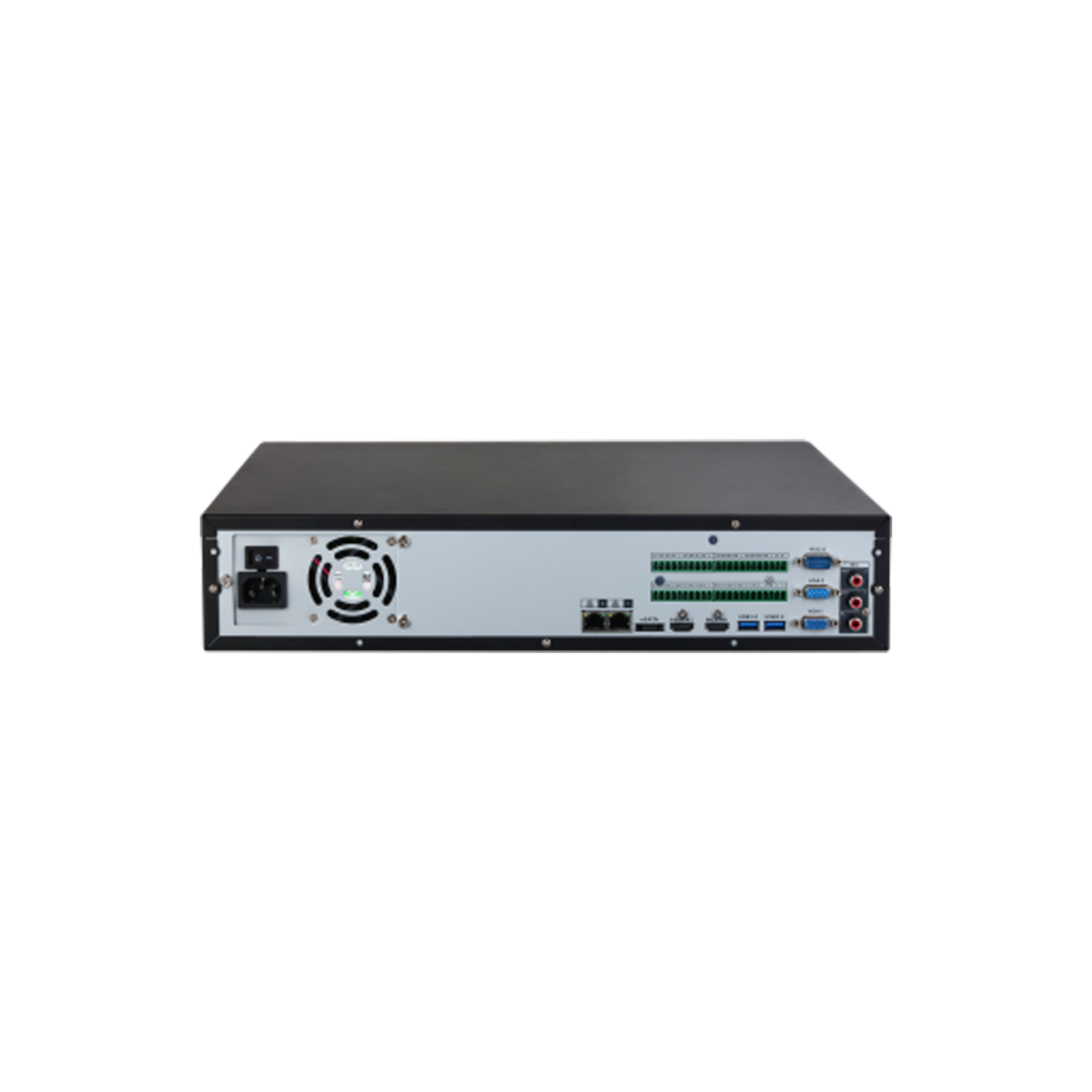

| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 8 channels (1-channel 12 V 1 A output) |
| HDD Interface | 8 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 6.4 kg (14.11 lb) |
| Gross Weight | 9.01 kg (19.86 lb) |
| Product Dimensions | 439.9 mm × 457.9 mm × 89.0 mm (17.32" × 18.03" × 3.50") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014 |
