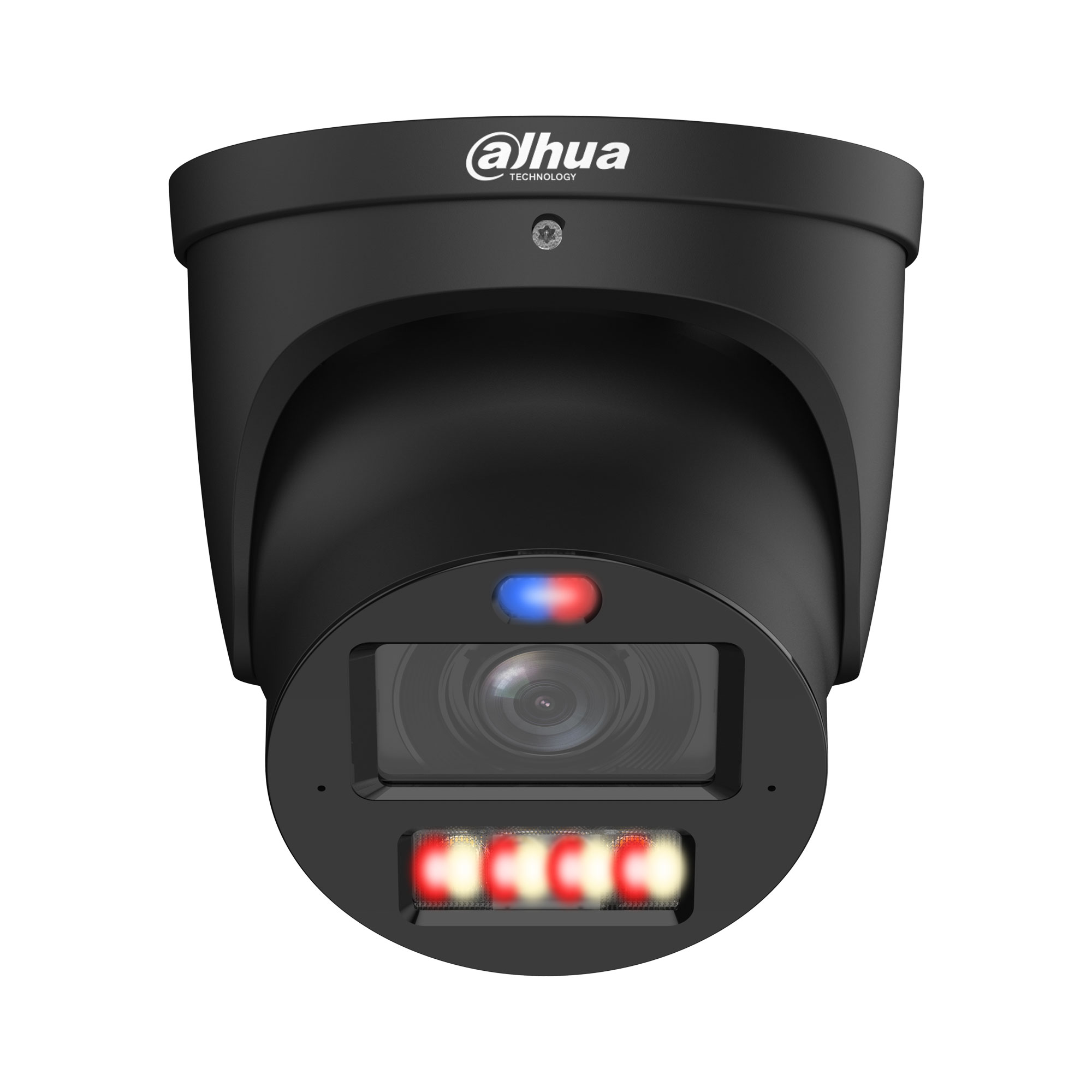

Stock Code: IPC-HDWN649H3-ZAS-PV-PRO-Black
| Camera | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3288 (H) × 1850 (V) - 6MP |
| ROM / RAM | 256 MB / 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 50 m (164.04 ft) (IR) / Up to 50 m (164.04 ft) (Warm Light) |
| Illuminator Control / Number | Auto; Manual; Zoomprio / 4 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens & DORI | |
| Lens Type / Mount | Motorized vari-focal / φ16 |
| Focal Length | 2.7 mm–12 mm |
| Field of View (FoV) | H: 112°–48°; V: 58°–27°; D: 137°–55° |
| Close Focus Distance | W: 1.75 m (5.74 ft) / T: 5.21 m (17.09 ft) |
| DORI Distance (Wide - W) | Detect: 74.9 m; Observe: 29.9 m; Recognize: 15.0 m; Identify: 7.5 m |
| DORI Distance (Tele - T) | Detect: 150.5 m; Observe: 63.8 m; Recognize: 31.9 m; Identify: 15.9 m |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay, loitering, helmet and vest detection |
| Face Detection (Full Image) | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| AcuPick & SMD | AcuPick: uses deep learning algorithms and works with back-end devices to accurately match targets such as people and motor vehicles, and searches live and recorded video to quickly locate targets; Smart Motion Detection (SMD 4.0) |
| AI SSA / Smart Search | AI SSA: adopts deep learning algorithms to adjust the image parameters to suit the conditions; Smart Search: works together with Smart NVR to perform refined intelligent search, event extraction and merging to event videos |
| Video & Audio | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream); AI Coding (AI H.265; AI H.264) |
| Resolution Options | 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Bit Rate Control | CBR/VBR/ABR; H.264/H.265: 3 kbps–16384 kbps |
| Day/Night & WDR | Auto (ICR)/Color/B/W; Wide Dynamic Range (WDR): 130 dB |
| Image Enhancement & Stabilization | Electronic Image Stabilization (EIS), BLC, HLC, 3D NR, Defog, Mirror, Privacy Masking (8 areas) |
| Image Rotation | 0°/90°/180°/270° (90°/270° rotation is supported with 2688 × 1520 resolution and lower) |
| Audio Features | Built-in dual Mic; Built-in speaker (Max. power consumption: 2 W; max. sound level at 10 cm: 110 dB) |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| General | |
| Smart Illumination / Dual Light | Yes / Yes (Smart Dual Light System) |
| Motion / Region of Interest (RoI) | OFF/ON (4 rectangular areas); RoI (4 areas) |
