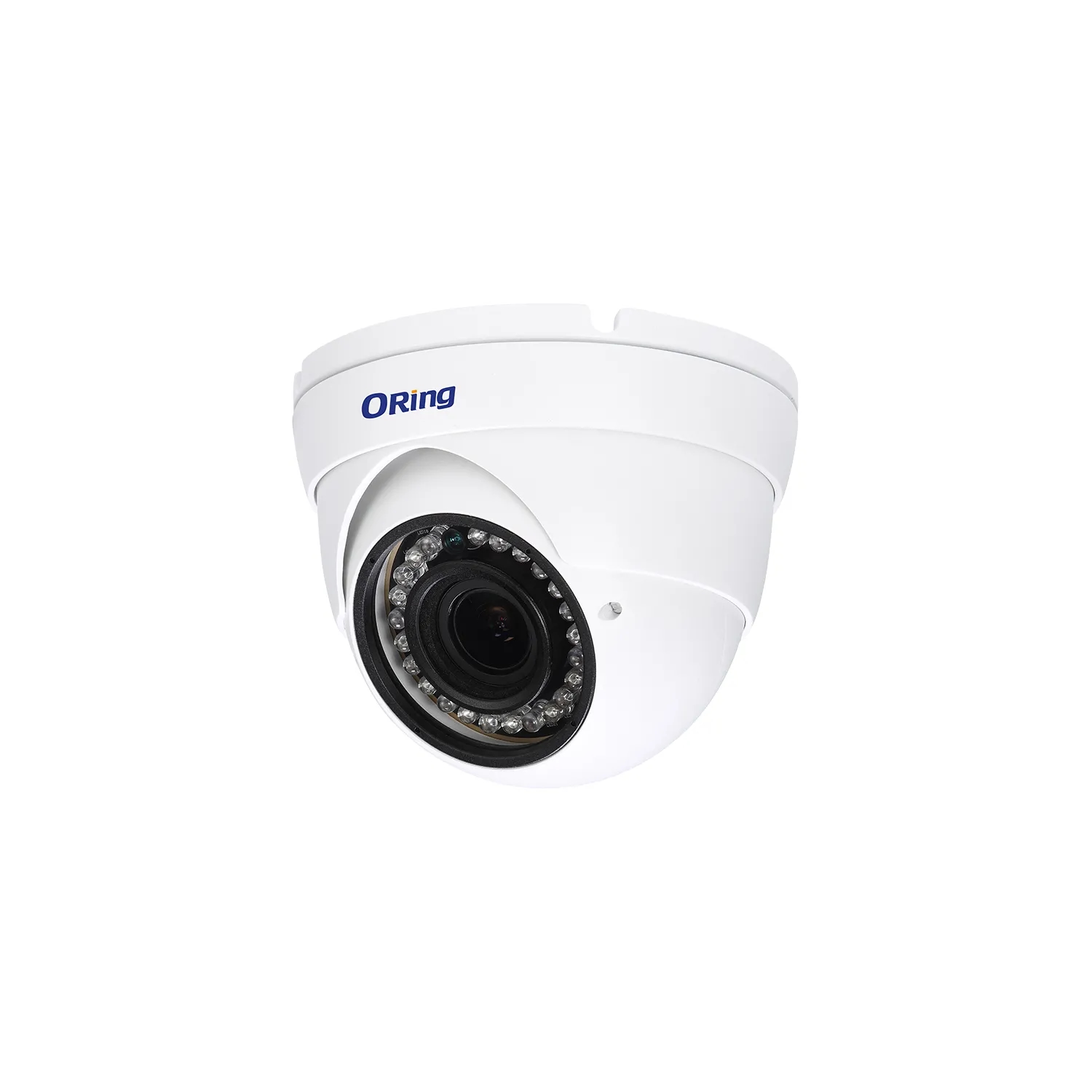

    720p HDCVI IR Eyeball Dome Kamera
    ORing

    720p HDCVI IR Eyeball Dome Kamera

    Stock Code: OR-HAC-HDW1100R-VF

    720P HD
    CMOS
    DWDR
    IP CODE 67
    Carries 720p HD video over existing coaxial cabling.
    A varifocal dome camera running on HDCVI technology. It combines video, audio, data and power on a single coaxial cable and asks for no new network infrastructure. The IP67 housing operates between -40°C and +60°C.
    1280×720Max. Resolution
    1/3" CMOSSensor
    IP67Protection Grade
    DC12VPower supply
    Key features
    Varifocal lensThe lens adjusts manually during installation and narrows the frame to fit the scene.
    Smart IRIt balances brightness in black-and-white images at night and keeps nearby objects from overexposing.
    Frame rateRecords 30 frames per second at 720P.
    Angle of viewThe horizontal angle ranges from 91° to 25°.
    Operating TemperatureWorks between -40°C and +60°C.
    Power consumptionDraws at most 3 W on a DC12V supply.
    Technical Specifications
    Image Sensor 1/3” CMOS
    Min. Illumination 0.05 Lux/F1.3 (Color)
    0 Lux/F1.3 (IR on)
    Lens 2.7–12 mm vari-focal (manual)
    Angle of View (Horizontal) 91° ~ 25°
    Day/Night ICR
    Max. IR Distance 30 m (98 ft), Smart IR
    OSD Menu Multi-language
    WDR DWDR
    Noise Reduction 2D
    Frame Rate 30 fps@720P
    Video Output HD/SD Switchable
    Audio Input --
    Alarm Input/Output --
    Pan/Tilt/Rotation Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~ 360°
    Ingress Protection IP67
    Operating Temperature -40°C ~ +60°C (-40°F ~ +140°F)
    Power Supply DC12V ±25%
    Max. 3W

    Datasheet

    OR-HAC-HDW1100R-VF

    1.0pdf3/1/2018
