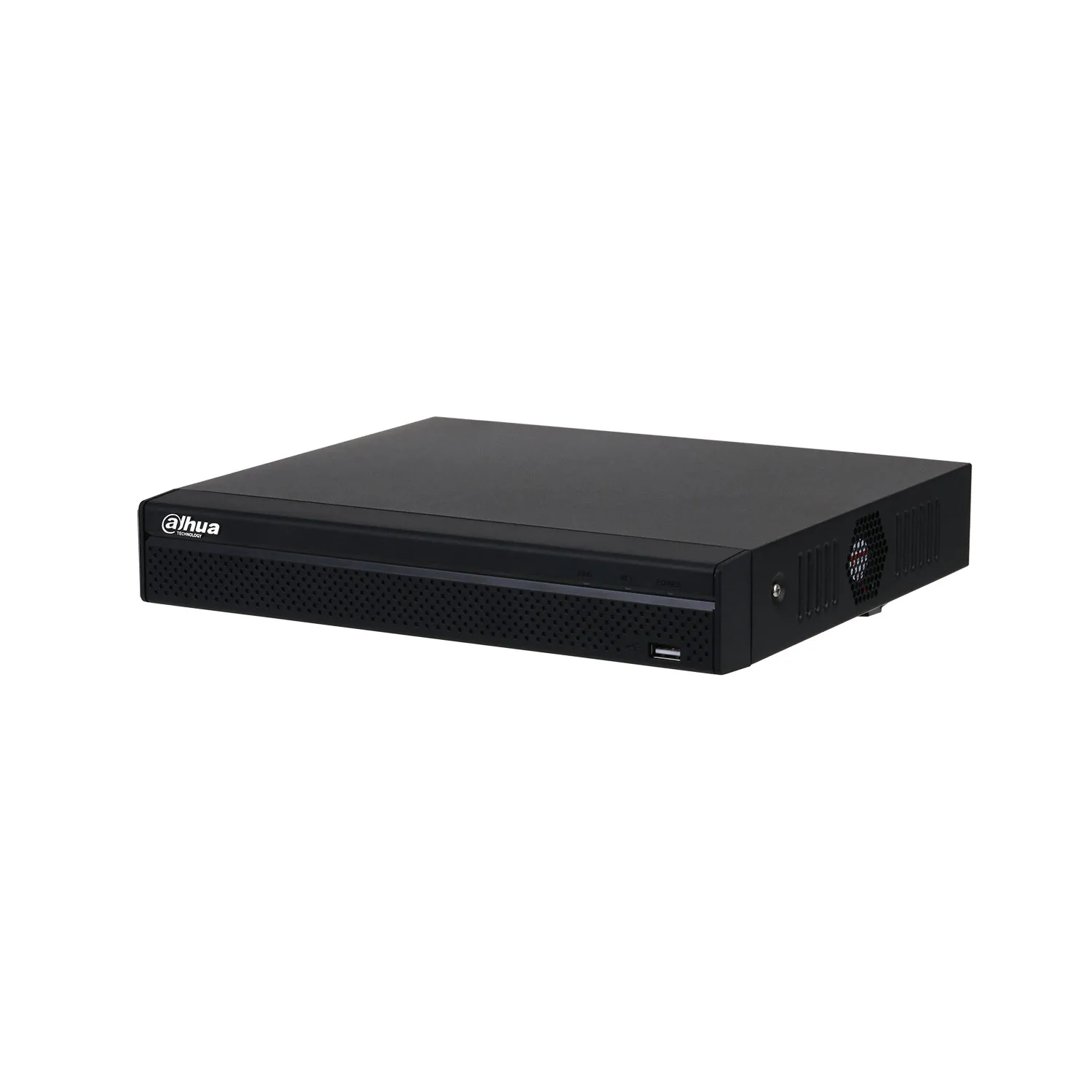

Stock Code: NVR2108HS-8P-T
| Model | |
|---|---|
| Model | NVR2108HS-8P-T |
| System | |
| Main Processor | Industrial-grade Embedded Processor |
| Operating System | Embedded Linux |
| Operation Interface | Web/local GUI operation |
| Video | |
| Access Channel | 8 Channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding. |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capability | 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS) or 8–ch@720P(30FPS) |
| Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Multi-screen Display | 1/4/8/9 |
| Third-party Camera Access | ONVIF, RTSP |
| Compression | |
| Video | Smart H.265+/Smart H.264+/H.265/H.264 |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P |
| Smart Phone Access | iDMSS(iOS), gDMSS(Android) |
| Access Standard | ONVIF(profile T/profile S/profile G), CGI, SDK |
| Browser | Chrome, IE9 or above, Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 8 channels for replay |
| Record Mode | Record Priority Mode: manual record · alarm record · Motion Detection record · timed record |
| Storage | Local HDD and network |
| Backup | USB device |
| Playback Function | 1. Play, pause, stop, fast forward, fast backward, backward, play by frame 2. Full screen, backup (cut/file), partially zoom in, Audio on/off |
| Alarm | |
| General Alarm | Motion Detection, Privacy Masking, video loss, PIR alarm, IPC alarm |
| Anomaly Alarm | Front-end device going offline, Storage Error, Storage Full, IP conflict, MAC conflict, log lock, network security anomaly |
| Alarm Linkage | Video record, snapshot, recording, preset, tour |
| External Port | |
| HDD | 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with ambient temperature. |
| USB | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | 1 |
| VGA | 1 |
| RCA Input | 1 |
| RCA Output | 1 |
| Alarm | None |
| Network | 1 RJ–45 port (10/100 Mbps), 8 RJ–45 ports with PoE Power Supply (10/100 Mbps) |
| General Parameters | |
| Power Supply | DC48V/53V, 2A/1.8A |
| Power Consumption | Total output power of NVR ≤ 10W (without HDD) Total output power of PoE 72W Single port power 25.5W |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross Weight | 1.98 kg (4.37 lb) |
| Product Dimensions | 260 mm × 225 mm × 47.6 mm (W × L × H) |
| Box Dimensions | 87 mm × 331 mm × 312 mm (W × L × H) |
| Operating Temperature | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | 0°C to 40°C (+32°F to +104°F) |
| Operating Humidity | 10%~93% |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000 m (9843 ft) |
| Installation | Desktop installation |
| Certification | CE, FCC |
