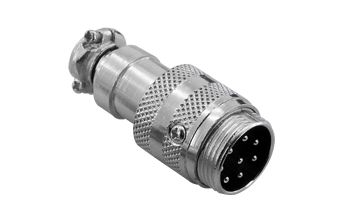

Terminates a microphone cable with an 8-pin male end.
The cable-type male member of the microphone connector family. Its 8-pin layout brings the conductors of a microphone line together in one body, and it mates with the female connector opposite to complete the link.
8Pin Count
MaleConnector Gender
Cable TypeMounting Type
Microphone ConnectorProduct Type
Key features
Pin layoutThe 8-pin body joins the conductors of a microphone line at a single point.
Connector genderThe male end mates with the female microphone connector on the other side.
Mounting typeThe cable-type body carries the connector directly onto the cable end.
PurposeServes as the cable-end termination on microphone and audio connection lines.
