Powers PoE cameras and carries them onto the network over eight Fast Ethernet ports.

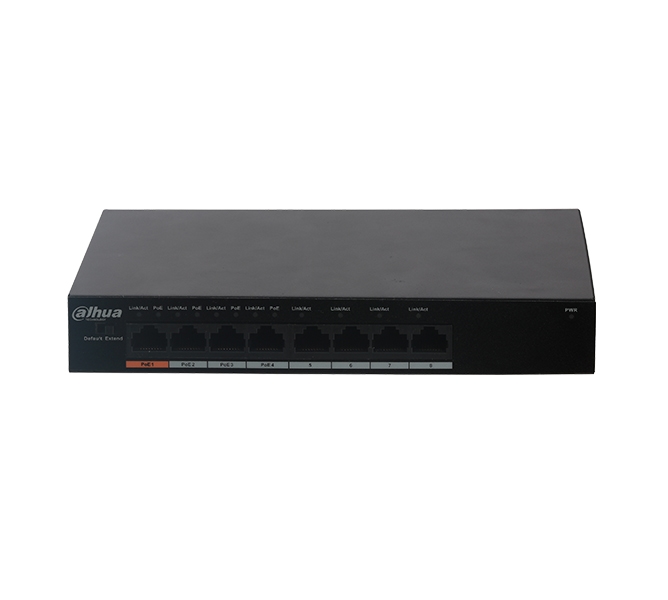

This metal-enclosure Fast Ethernet switch brings four PoE ports and four data ports together in one chassis. Port 1 delivers up to 60 W through Hi-PoE, while the other PoE ports supply 30 W. It suits small camera installations and single-cabinet drops.
Port layoutCarries 4 × 10/100 Mbps PoE ports and 4 × 10/100 Mbps data ports.
PoE powerSupports the IEEE802.3af, IEEE802.3at and Hi-PoE standards, with the total budget capped at 60 W.
SwitchingRuns at 1.8 Gbps capacity and forwards 1.19 Mpps.
Enclosure and memoryUses a metal enclosure and holds a 768 Kb packet buffer with a 2K MAC table.
Auto negotiationSupports MDI/MDIX self-adaptation and 10/100 Mbps rate self-adaptation.
Operating conditionsWorks from -10 °C to +55 °C at 10% to 90% humidity and withstands 2 KV common mode and 0.5 KV differential mode.
