It powers and connects cameras over a single cable.

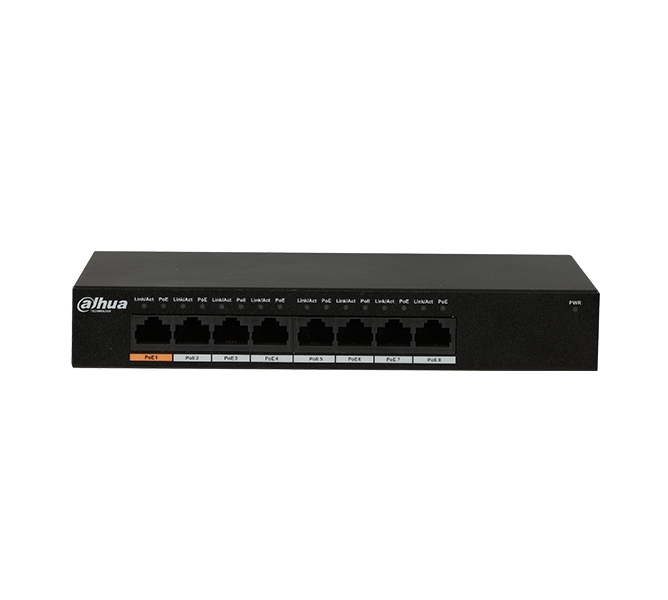

An 8-port PoE switch operating at Layer 2. Every port supports 10/100/1000 Mbps, and on the power side it follows the IEEE802.3af, IEEE802.3at and Hi-PoE standards. It gathers small and mid-size camera installations onto a single device.
96 W total PoE budgetPort 1 draws up to 60 W and ports 2-8 up to 30 W; the total budget is capped at 96 W.
Hi-PoE supportIn Hi-PoE mode a single port delivers up to 60 W.
20 Gbps switching capacityIt gathers the traffic of eight gigabit ports in one chassis, with a packet forwarding rate of 11.9 Mpps.
MDI/MDIX auto-sensingNo need to sort straight-through from crossover cables; the port sets the link type itself.
Metal casingThe device runs inside a metal casing, weighs 0.49 kg and measures 190 mm × 100 mm × 30 mm.
Lightning protectionIt withstands 2 kV common mode and 0.5 kV differential mode surges.
