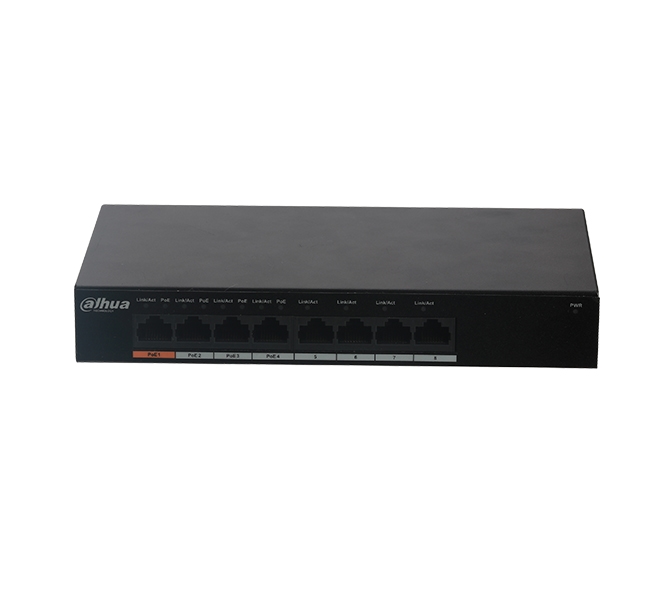

8-Port Gigabit Ethernet PoE Switch with 4-Port PoE

Name: 8-Port Gigabit Ethernet PoE Switch with 4-Port PoE
Brand: Dahua
SKU: PFS3008-8GT-60

Stock Code: PFS3008-8GT-60

An eight-port Gigabit switch that powers cameras over the cable.

An eight-port Gigabit switch that brings IP cameras and recorders together at a single point. Four ports carry PoE power, and the remaining four handle non-powered devices and the uplink connection.

4 × PoE + 4 × GigabitEthernet ports

10/100/1000 MbpsLink Speed

20 GbpsSwitching Capacity

60 WTotal PoE budget

DC 48~57 VPower supply

-10°C ~ +55°COperating Temperature

Key features

PoE powerPort 1 delivers up to 60 W and ports 2-4 up to 30 W, while the total PoE budget stays at 60 W.

PoE protocolsSupports the IEEE802.3af, IEEE802.3at and Hi-PoE standards, and the RJ45 ports set MDI/MDIX on their own.

Switching performanceA switching capacity of 20 Gbps and a packet forwarding rate of 11.9 Mpps run on a 1.5 Mb buffer and an 8K MAC table.

MAC learningLearns and ages MAC addresses automatically, and flow control comes enabled by default.

Metal enclosure and protectionThe metal enclosure protects the body, and lightning protection reaches 2 KV in common mode and 0.5 KV in differential mode.

Operating conditionsWorks between -10°C ~ +55°C and 10% ~ 90% humidity; the 190 mm × 100 mm × 30 mm body weighs 0.49 kg.

Technical Specification
Model	PFS3008-8GT-60
Ethernet Port	4×10/100/1000 Mbps PoE ports; 4×10/100/1000 Mbps ports
PoE Power Consumption	Port1 ≤60 W, Port2-4 ≤30 W, Total ≤60 W
PoE Protocol	IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity	20 Gbps
Packet Forwarding Rate	11.9 Mpps
Packet Buffer Memory	1.5 Mb
MAC Table Size	8K
Flow Control	Enable by default
Application Humidity	10% ~ 90%
Power	DC 48~57 V power adapter
Lightning Protection	Common Mode 2 KV; Differential Mode 0.5 KV
Working Temperature	-10°C ~ +55°C
Weight	0.49 kg
Dimension (W×D×H)	190 mm × 100 mm × 30 mm

Datasheet

PFS3008-8GT-60

1.0pdf8/22/2019

Kullanım Kılavuzu

PFS3008-8GT-60

1.0pdf8/22/2019

Fotoğraf

PFS3008-8GT-60

1.0png8/22/2019
