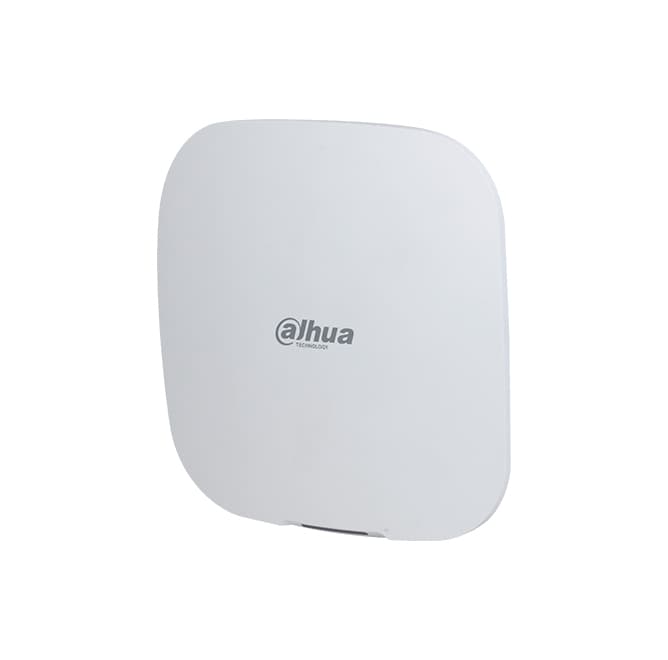

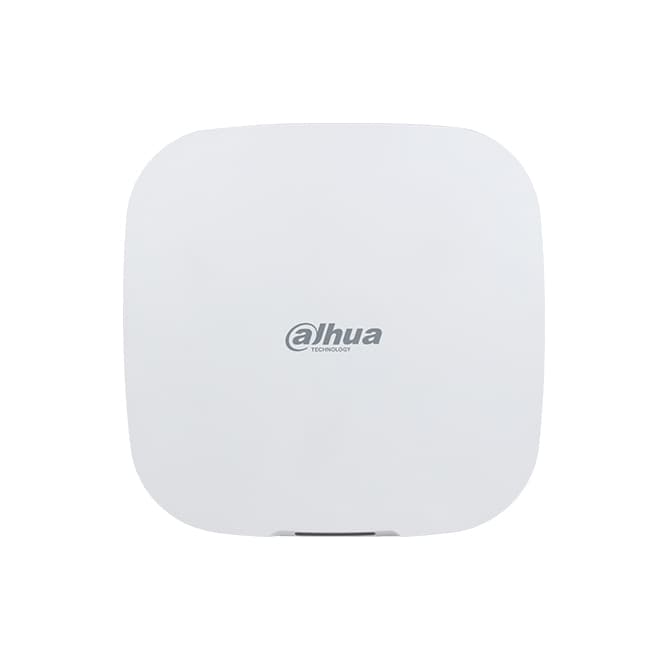

Sits at the center of a wireless alarm system and manages 150 peripherals from one point.

This alarm panel gathers wireless detectors, sirens and keyfobs into a single hub. It connects to the cloud over Ethernet and Wi-Fi and pushes alarm notifications to the mobile app. For indoor installations it mounts on a wall or sits on a desktop.

150 channelsWireless peripheral capacity

433.1–434.6 MHzCarrier frequency

AES128Wireless encryption

10 M/100 MEthernet port

12 V DCPower supply

12 hoursBattery standby time

Key features

150channels

Large peripheral capacity

Connects sirens, keyfobs, repeaters, keypads and PIR cameras to the same panel.

433.1–434.6MHz

Frequency hopping wireless band

Frequency hopping keeps the link with detectors alive in noisy environments.

4channels

Alarm verification with IP cameras

Carries IP camera footage to the mobile app the moment an alarm triggers.

50entries

Offline alarm cache

Stores events while the network is down and sends them automatically once it returns (ANR).

12hours

Standby during a power cut

The built-in lithium battery keeps the panel running when mains power drops.

IN DAILY USE

Arming and disarmingThe mobile app, the keyfob and a schedule arm and disarm the system.

Cloud updatesA cloud update refreshes the panel, and the panel rolls back automatically if an update fails.

Tamper and battery warningsIt reports enclosure tampering and weakening peripheral batteries to the user.

Europe, UK and USA power adapters are optional.

Audio and Video
Video Input	4-channel IPC
Input/Output
Wireless Zone	Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR-Cameras)
Port
Network Port	1 × RJ-45 10 M/100 M Ethernet port
Network Mode	Ethernet and Wi-Fi
Storage Battery	Built-in lithium battery
Indicator Light	1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)
Button	1 × reset, 1 × power, 1 × AP
Buzzer	Built-in
Function
Tamper Alarm	Yes
Video Linkage	Yes
Network Protocol	TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP
Remote Upgrade	Cloud update
Arm and Disarm	App; keyfob; schedule
Power Failure Protection for Configured Parameters	Yes
User Management	Share function for App users
Cache	Max. 50 entries (ANR)
Low Battery Alarm	Yes
Search	Search for push messages, device status, and program version, and detect signal strength
Event Records	Max. 5000
Wireless
Carrier Frequency	433.1 MHz–434.6 MHz
Transmitting Power (EIRP)	Max. 10 mW
Communication Distance	Up to 1,200 m (3,937.01 ft) in an open space
Communication Mechanism	Two-way
Encryption Mode	AES128
Frequency Hopping	Yes
Wi-Fi
Wi-Fi Standard	IEEE 802.11b/g/n
Wi-Fi Frequency Range	2400–2483.5 MHz
Wi-Fi Transmitting Power	≤20 dBm@2400–2483.5 MHz
General
Power Supply	12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)
Operating Temperature	–10 °C to +50 °C (+14 °F to +122 °F) (indoor)
Operating Humidity	10%–90% (RH)
Product Dimensions	163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H)
Packaging Dimensions	219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H)
Installation	Wall mount; desktop
Net Weight	0.38 kg (0.84 lb)
Gross Weight	0.8 kg (1.76 lb)
Certifications	CE; FCC
Casing	PC + ABS
Battery Life	Storage battery standby for 12 hours

Audio and Video

Video Input

4-channel IPC

Input/Output

Wireless Zone

Supports 150 wireless peripherals (6 sirens, 64 wireless keyfobs, 4 repeaters, 8 keypads, 8 PIR-Cameras)

Port

Network Port

1 × RJ-45 10 M/100 M Ethernet port

Network Mode

Ethernet and Wi-Fi

Storage Battery

Built-in lithium battery

Indicator Light

1 for multiple statuses (alarm, arming, disarming, networking, and malfunction)

Button

1 × reset, 1 × power, 1 × AP

Buzzer

Built-in

Function

Tamper Alarm

Yes

Video Linkage

Yes

Network Protocol

TCP/IP, including PPTP, L2TP, DHCP, UPNP, and NTP

Remote Upgrade

Cloud update

Arm and Disarm

App; keyfob; schedule

Power Failure Protection for Configured Parameters

Yes

User Management

Share function for App users

Cache

Max. 50 entries (ANR)

Low Battery Alarm

Yes

Search for push messages, device status, and program version, and detect signal strength

Event Records

Max. 5000

Wireless

Carrier Frequency

433.1 MHz–434.6 MHz

Transmitting Power (EIRP)

Max. 10 mW

Communication Distance

Up to 1,200 m (3,937.01 ft) in an open space

Communication Mechanism

Two-way

Encryption Mode

AES128

Frequency Hopping

Yes

Wi-Fi

Wi-Fi Standard

IEEE 802.11b/g/n

Wi-Fi Frequency Range

2400–2483.5 MHz

Wi-Fi Transmitting Power

≤20 dBm@2400–2483.5 MHz

General

Power Supply

12 V DC, 1.5 A (Europe, UK and USA power adapters are optional)

Operating Temperature

–10 °C to +50 °C (+14 °F to +122 °F) (indoor)

Operating Humidity

10%–90% (RH)

Product Dimensions

163.0 mm × 163.0 mm × 32.0 mm (6.42" × 6.42" × 1.26") (L × W × H)

Packaging Dimensions

219.0 mm × 187.0 mm × 91.0 mm (8.62" × 7.36" × 3.58") (L × W × H)

Installation

Wall mount; desktop

Net Weight

0.38 kg (0.84 lb)

Gross Weight

0.8 kg (1.76 lb)

Certifications

CE; FCC

Casing

PC + ABS

Battery Life

Storage battery standby for 12 hours

Alarm Hub

Datasheet

ARC3000H-W2

Kullanım Kılavuzu

ARC3000H-W2

ARC3000H-W2

ARC3000H-W2

Teknik Çizim

ARC3000H-W2

ARC3000H-W2

Fotoğraf

ARC3000H-W2

Similar Products

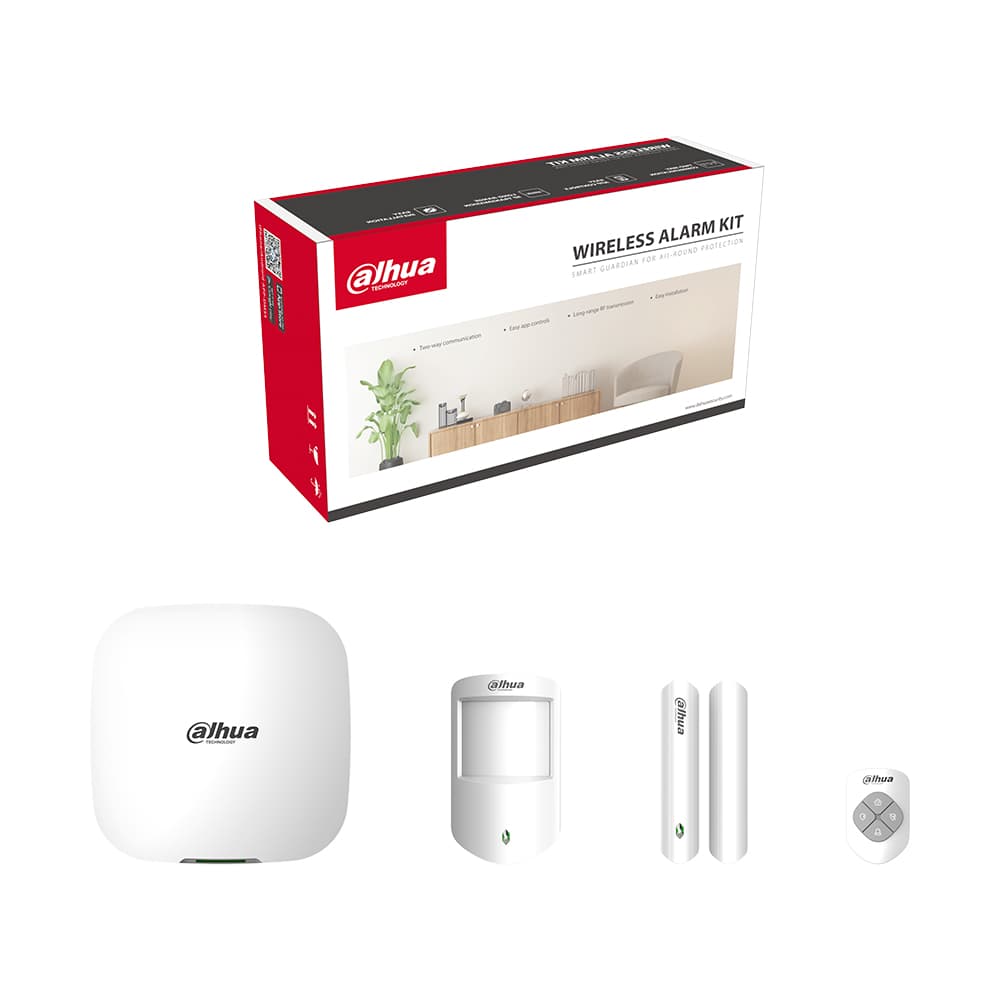

Alarm KIT

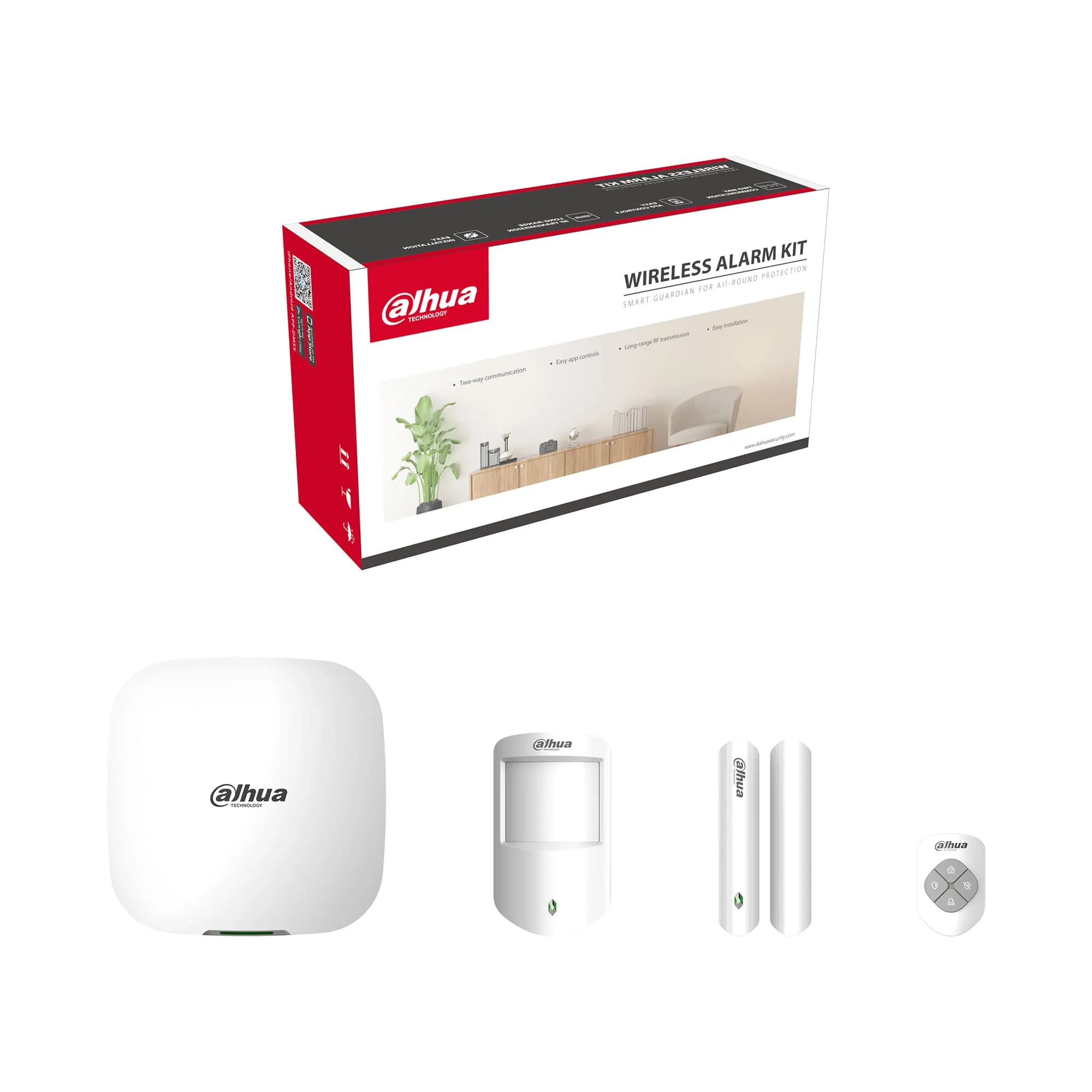

WiFi + 2G/3G/4G Alarm System Kit

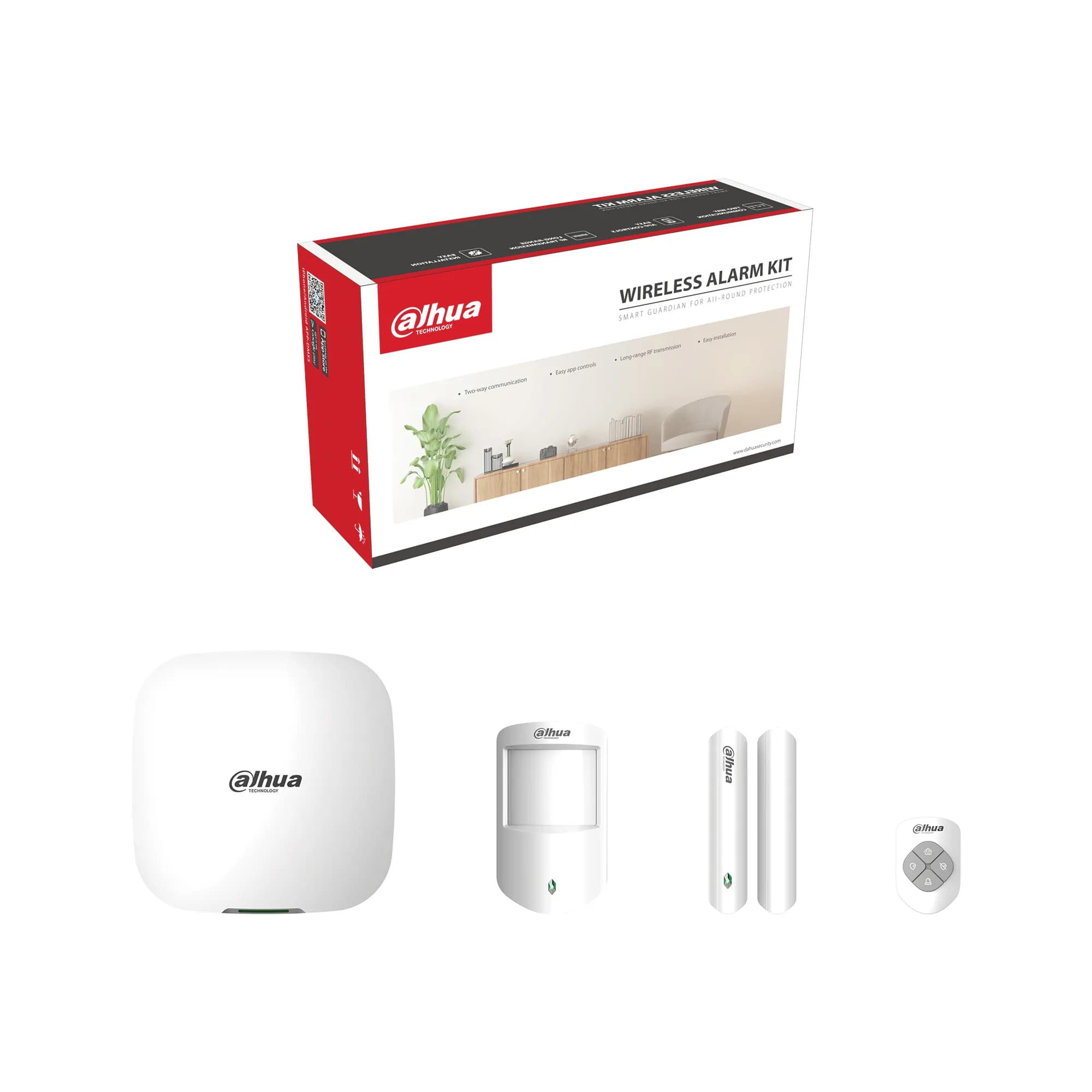

WiFi + 2G Alarm System Kit
