Carries the coaxial line onto a printed circuit board.

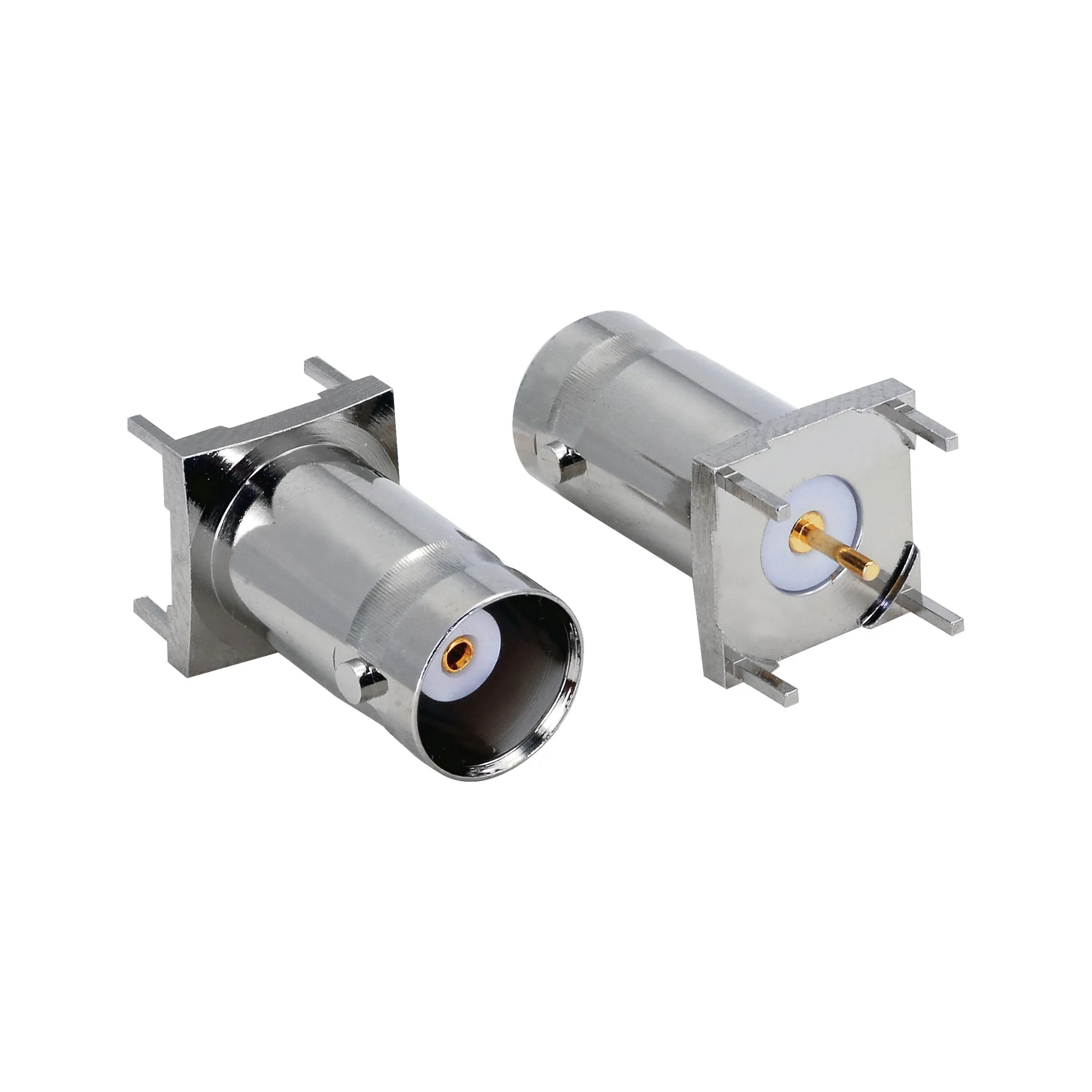

A straight-body BNC female connector for printed circuit board mounting. It opens the coaxial line on the board to the outside of the device and holds the 50 Ω layout.
PCB mountingSeats directly on the printed circuit board.
Straight bodyKeeps the line on the same axis without changing direction.
50 Ω impedanceHolds the impedance of the coaxial line across the transition.
Nickel platingThe body surface is nickel plated.
Low insertion lossInsertion loss stays at or below 0.2 dB at 3 GHz.
