Adds a female BNC input to a device panel.

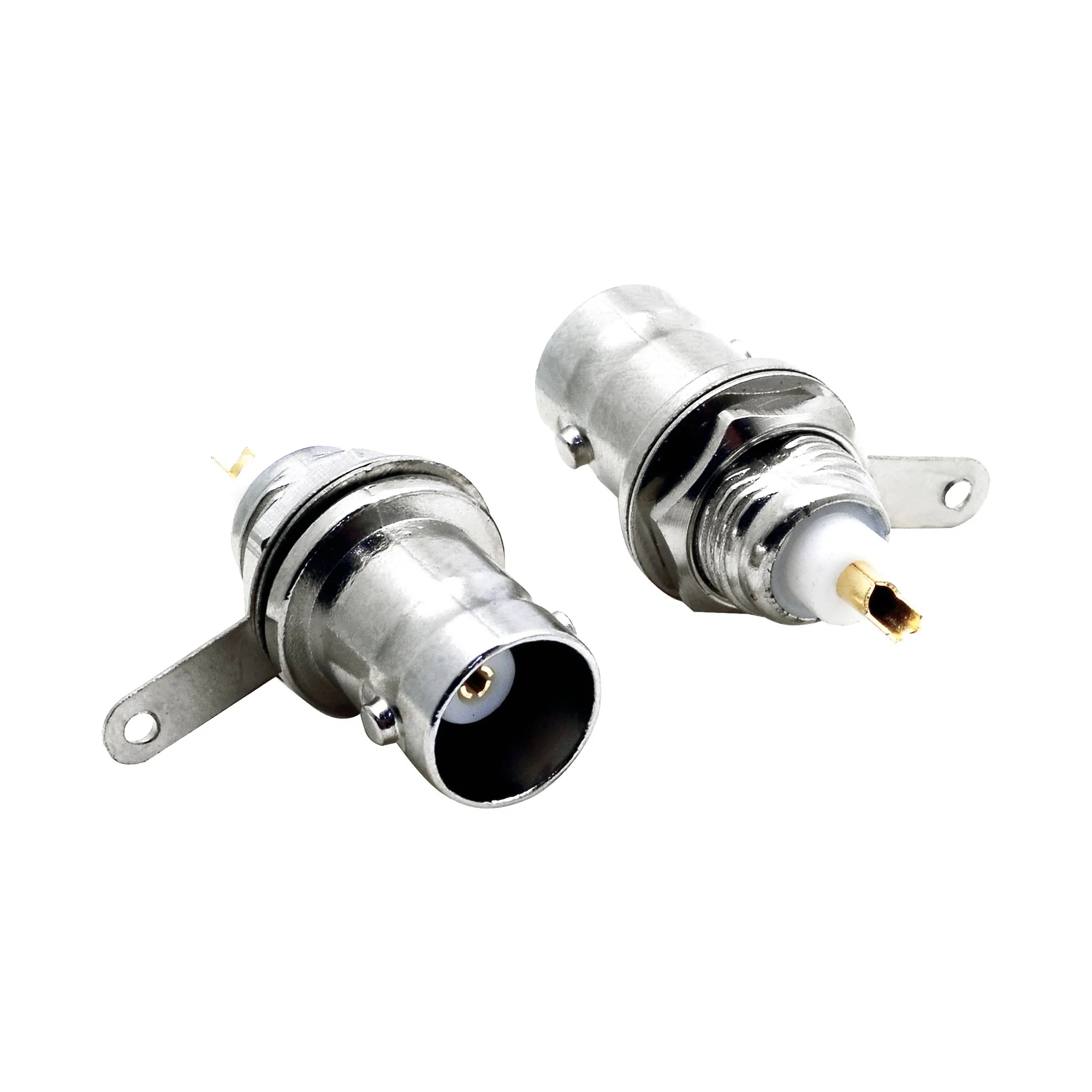

A female BNC chassis connector that mounts on an equipment case or panel. It holds the cable end with a crimp termination, covers 0 - 4.0 GHz on 50 Ω lines and adds no more than 0.2 dB insertion loss at 3 GHz.
50 ΩImpedance
0 - 4.0 GHzFrequency Range
0.2 dB max @ 3 GHzInsertion Loss
CrimpTermination Type
FemalePlug Type
NickelOuter Jacket
Key features
Chassis mountingThe connector seats on the surface of an equipment case or panel.
Crimp terminationIt holds the cable end with a crimp connection.
Nickel plated bodyThe nickel plated body minimizes signal loss.
0 - 4.0 GHz bandIt works across 0 - 4.0 GHz on 50 Ω lines.
0.2 dB insertion lossInsertion loss stays at 0.2 dB or below at 3 GHz.
