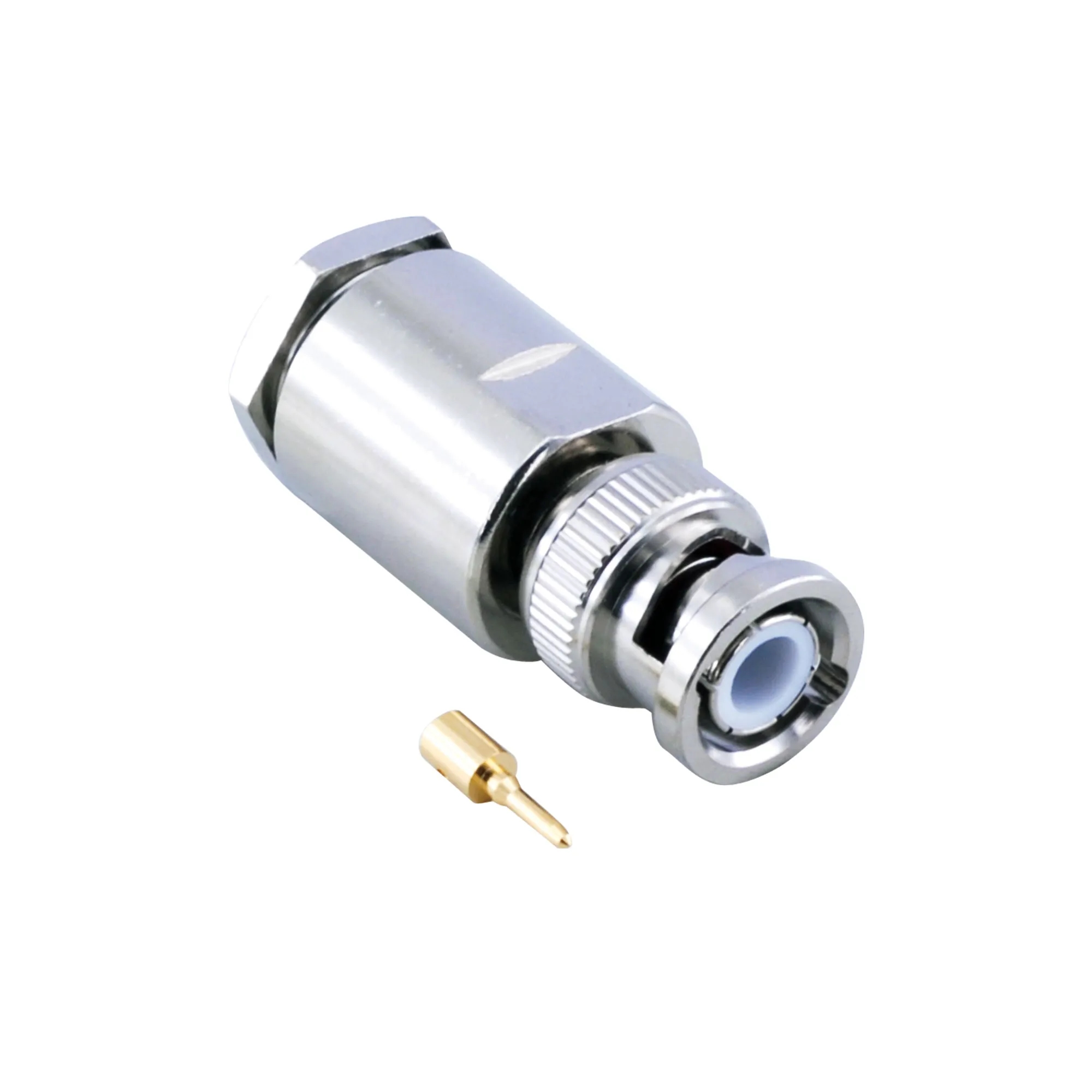

Connects LMR400 and RG8 coaxial cable to a BNC interface through a screw-on body.
A male BNC connector working at 50 Ω line impedance. It seats on LMR400 and RG8 cable with a screw-on body and covers the 0 - 4.0 GHz band. It builds the RF link between device and cable on audio, video and data lines.
50 ΩImpedance
0 - 4.0 GHzFrequency Range
BNCConnector Type
Screw-onTermination
MalePlug Type
LMR400 / RG8Cable Type
Key features
InterfaceTwo screw latches lock the miniature BNC body onto the mating end and shorten removal work.
Frequency bandWorks across the 0 - 4.0 GHz range; typical video and data applications stay inside this band.
Signal qualityStanding wave ratio stays within 1.3 on the straight body; insertion loss holds at 0.2 dB at 3 GHz.
PlatingThe body is silver plated.
AssemblyScrew-on termination fixes the cable to the connector.
