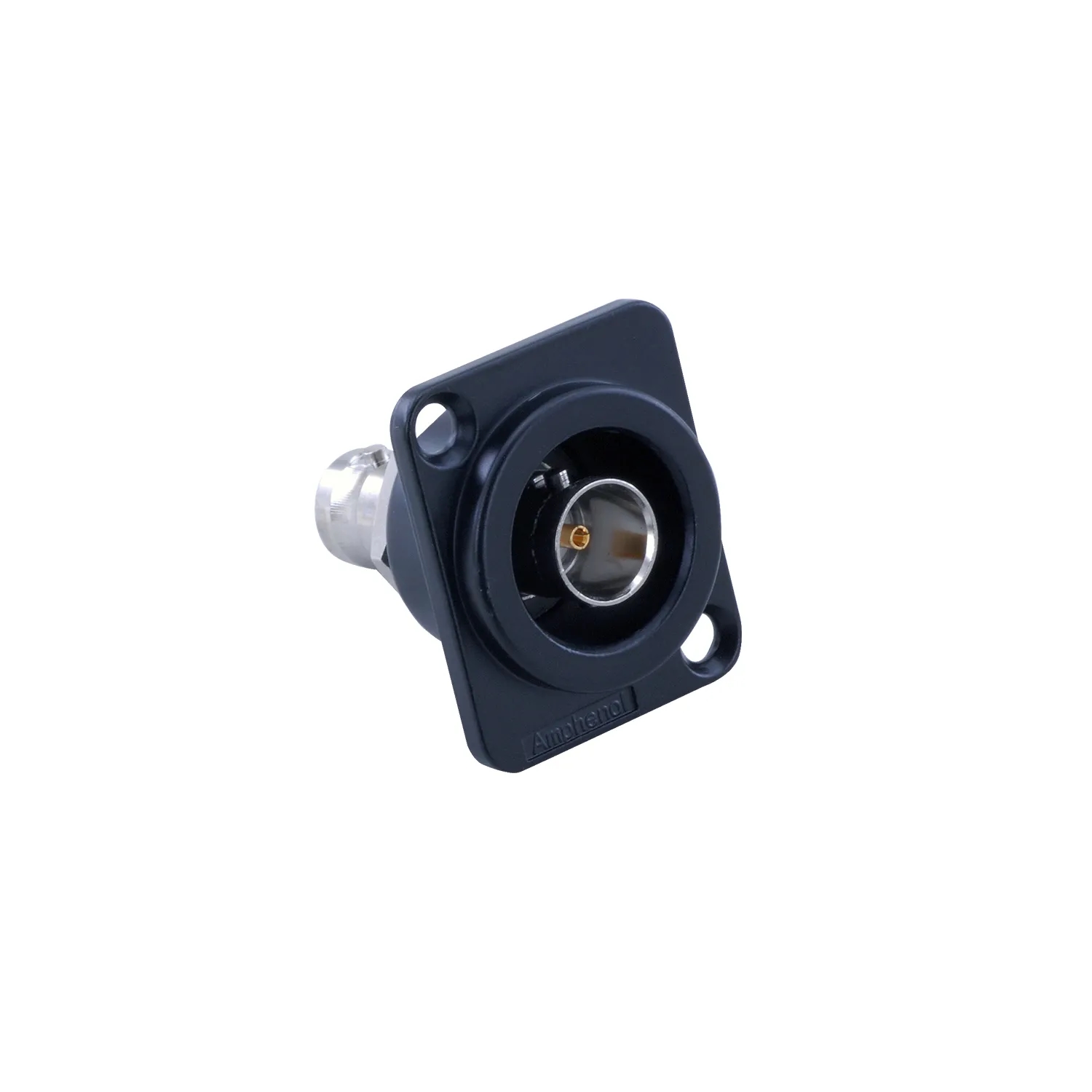

Carries the BNC line through the panel in a matt black body
A panel-mount feed-through connector with a BNC female interface at both ends. The diecast zinc alloy housing comes in a matt black finish and keeps the same tone as dark rack covers.
75 Ωimpedance
DC – 3 GHzfrequency range
Female – FemaleBNC interface
Ø24.0 mmpanel cut-out diameter
Matt blackhousing finish
1000mating cycles
Key features
75Ω
Impedance matched to broadcast lines
Its characteristic impedance is 75 Ω and fits the layout of broadcast and HD video lines.
3GHz
Wide operating band
The frequency range extends from DC to 3 GHz and also carries serial digital video signals.
Mattblack
Dark finish for dark panels
The diecast zinc alloy housing ends in a matt black surface.
Ø24.0mm
Ready panel cut-out
The panel hole is Ø24.0 mm, with two Ø3.4 mm mounting holes on a 24.0 mm × 19.0 mm spacing.
1000cycles
Long mating life
The mating cycle life is 1000, so it keeps serving on panels where connectors come and go often.
Everyday use on the panelOne hole to mountOnce the panel hole is open, the nut and lock washer hold the connector in place.
Service without cutting the cableUnplugging the front cable is enough; the line behind the panel stays in place.
Discreet on dark panelsThe matt surface does not stand out on studio and rack covers.
Usage areasBroadcast·High-bandwidth video equipment·D1/D2 serial digital·Graphics workstations·Telephone and workstations
It complies with RoHS under EU 2002/95/EC. A hex nut and lock washer ship with the product.
