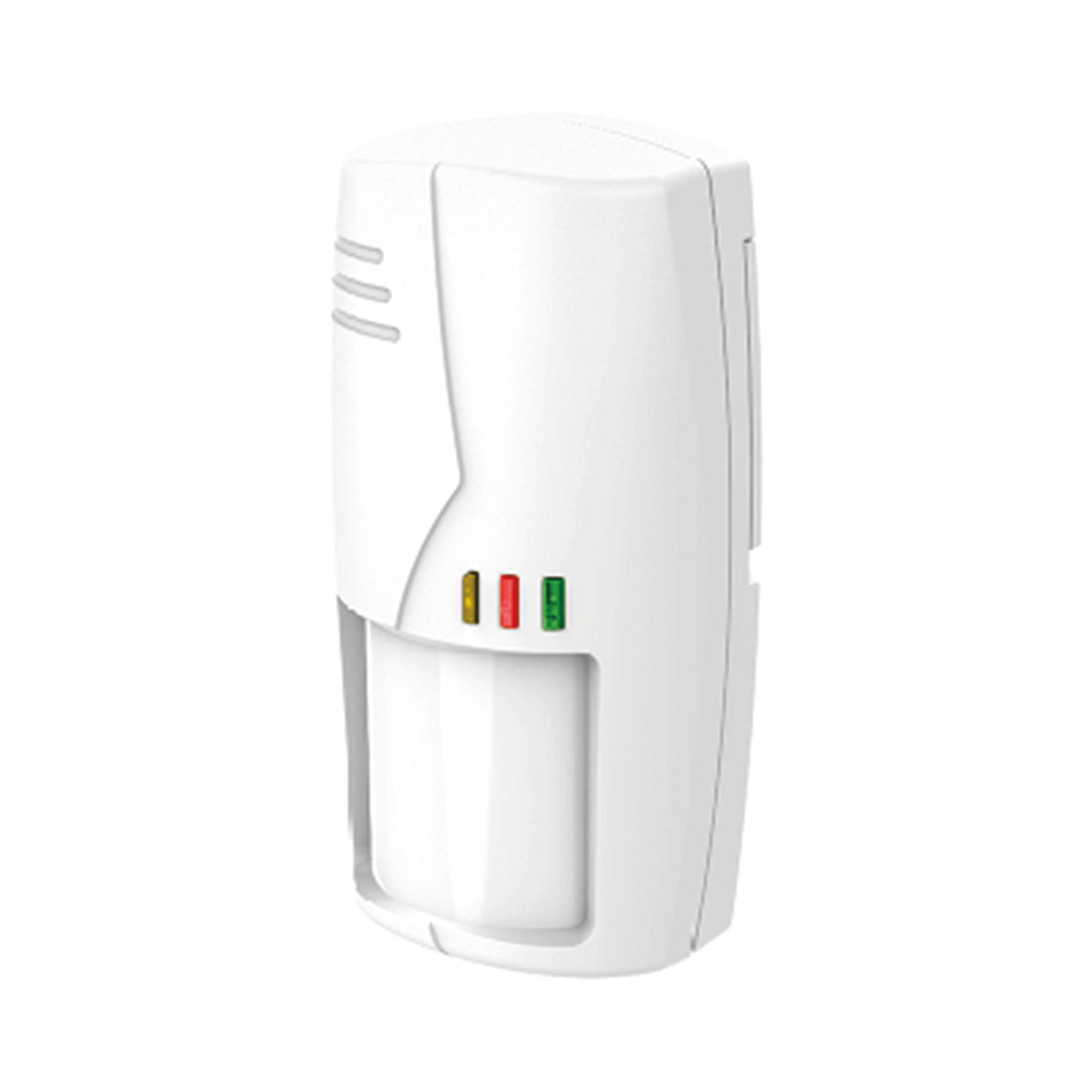

Stock Code: ARD2235
| Technical Specifications | |
|---|---|
| Alarm Output | 1 × alarm output, NC/NO, 60 VDC, Max. 400 mA 1 × case tamper output, NC, 28 VDC, Max. 100 mA |
| Indicator Light | Red, green, and yellow indicator |
| Sensor | Dual-element low-noise pyroelectric infrared sensor and microwave sensor |
| Detection Mode | Passive Infrared (PIR), microwave, and intelligent review algorithm |
| Sensitivity | Adjustable |
| Detection Range | Distance: 12 m (39.37 ft) Angle: 90° |
| Detection Speed | 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s) |
| Pet Immunity Level | ≤25 kg (55.12 lb) |
| White Light Resistance | 6,500 lux |
| Two-way Digital Temperature Compensation | Yes |
| AND/OR Technology | Yes |
| Dynamic Threshold Technology | Yes |
| Pulse Count | Yes, 1P or 2P |
| Operating Current | ≤30 mA (12 VDC) |
| Alarm Current | ≤25 mA |
| Power Supply | 9–16 VDC |
| Power Consumption | 0.48 W (Max.) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | ≤95% (RH) |
| Product Dimensions | 60.0 mm × 46.0 mm × 120.0 mm (2.36" × 1.81" × 4.73") (L × W × H) |
| Net Weight | 165.0 g (0.36 lb) |
| Gross Weight | 176 g (0.39 lb) |
| Installation | Wall mount |
| Casing Material | ABS |
| Appearance Color | White |
| Certifications | CE |
| Anti-corrosion Level | Basic Protection |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | ≤95% (RH) |
| Packaging Dimensions | 82.0 mm × 50.0 mm × 133.0 mm (3.23" × 1.97" × 5.24") (L × W × H) |
