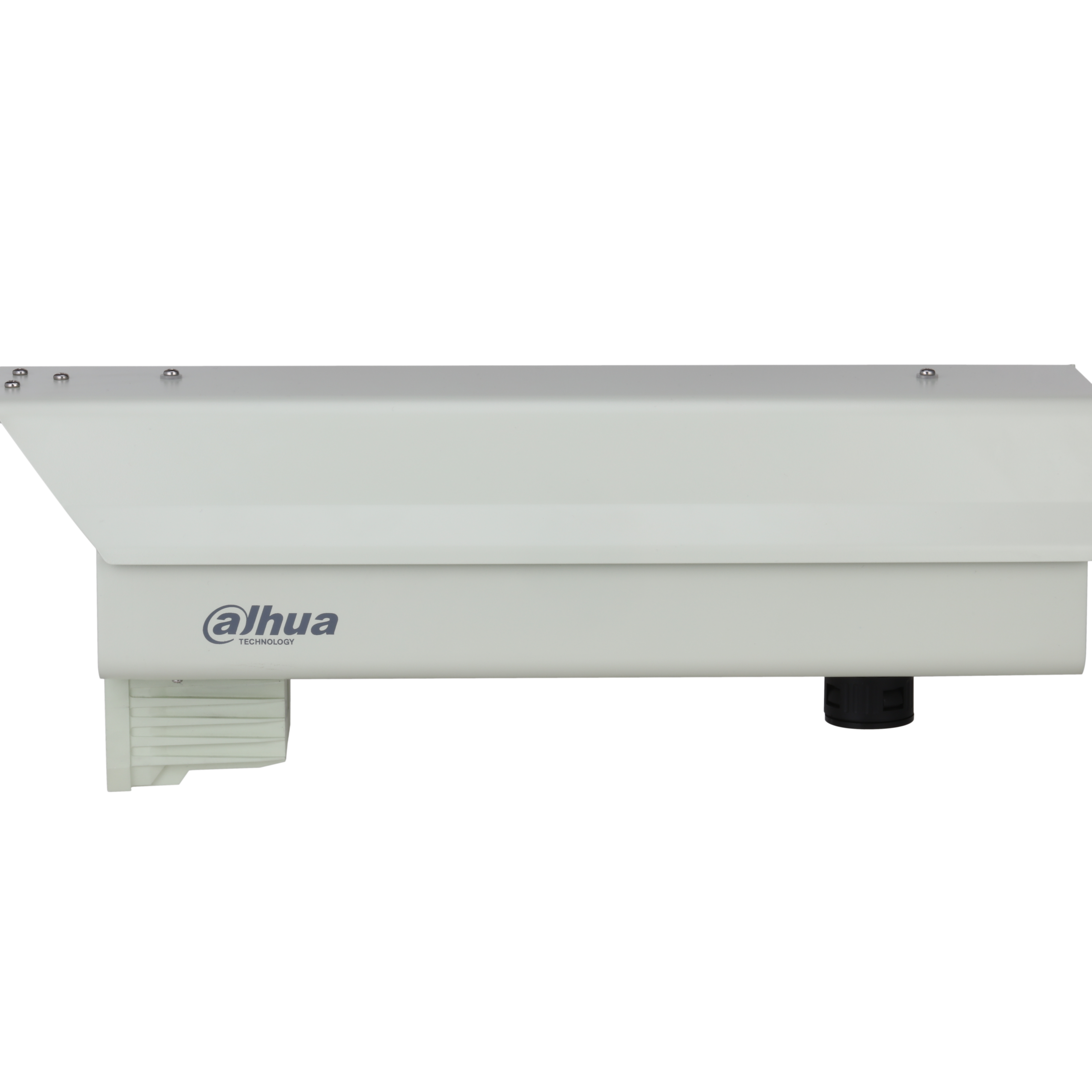

Stock Code: DH-SPL-01
| Camera | |
|---|---|
| Image Sensor | 1.1" GS-CMOS |
| Shutter Mode | Single shutter; Double shutters; Three shutters |
| Electronic Shutter Speed | Auto/Manual 1/50 s – 1/100,000 s |
| Noise Reduction | 3D NR |
| S/N Ratio | 48 dB |
| WDR | 120 dB |
| Min. Illumination | 0.001 lux |
| Day/Night | ICR auto switch: Uses IR cut-off filter (IRCF) with polarizer in the daytime, and uses ordinary filter at night. |
| Illuminator | |
| Illuminator Number | 8 |
| IR Light | Yes |
| Illumination Distance | 23 m – 30 m (75.46 ft – 98.43 ft) (brightness adjustable) |
| Lane Coverage | Center mount: 4 lanes; Side mount: 3 lanes |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Focal Length | 16 mm – 40 mm |
| Max. Aperture | F1.5 |
| Iris Type | P-Iris |
| Field of View | Horizontal: 22.3°–53.0°; Vertical: 13.8°–32.3°; Diagonal: 26.0°–61.9° |
| Function | |
| Trigger Mode | Video trigger / Radar trigger |
| OSD Overlay | Time; address; lane No.; plate; plate color; and more |
| Alarm Event | Storage full; storage error; external alarm; no storage card; license plate blocklist; illegal access; network disconnection; IP conflict |
| Automatic Network Replenishment (ANR) | Platform and FTP (TF card is required) |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle; motorcycle |
| Speed Detection Range | 0 km/h – 300 km/h |
| Face Detection | Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images |
| ANPR | Adopts developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: SUV, large bus, sedan, light truck, pickup, heavy truck, medium truck, van, medium bus, MPV |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99%; LPR accuracy > 98% |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray (color recognition is not supported during the nighttime) |
| Vehicle Brand/Logo Recognition | Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
| Motor Vehicle Violation Capture | ANPR mode: Wrong-way driving, speeding, driving slow, crossing the white solid line, crossing the yellow solid line, illegal lane change, unfasten seat belt, calling while driving, smoking while driving. E-Police mode: Running a red light, wrong-way driving, crossing the solid white line, crossing the solid yellow line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by side-mounted cameras), and crossing the stop line |
| Motorcycle Violation Capture | Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
| Traffic Flow Detection | Generates statistics on vehicle flow, queue length, average speed, lane occupancy, and more |
| Traffic Event | Motor vehicle illegal stopping on the roadway; traffic congestion |
| Video | |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Video Resolution | 4096 (H) × 3072 (V) |
| Video Frame Rate | 50 Hz: Maximum 50 fps; default main stream (4096 × 3072@25 fps), sub stream (1600 × 1200@25 fps). 60 Hz: Maximum 30 fps; default main stream (4096 × 3072@15 fps), sub stream (1600 × 1200@15 fps) |
| Video Bit Rate | H.264: 32 kbps – 32767 kbps; H.265: 32 kbps – 32767 kbps; MJPEG: 512 kbps – 32767 kbps |
| Bit Rate Control | CBR/VBR |
| White Balance | Auto; Night; Customized Color Temperature |
| Edge Enhancement | Yes |
| HLC | Yes |
| BLC | Yes |
| Bad Pixel Correction | Yes |
| Gain Range | 0-100 |
| Image | |
| Composite Image | Supports combining up to 4 images into a composite image |
| Image Resolution | 4096 (H) × 3072 (V) (OSD black strip excluded) |
| Image Encoding Format | JPEG |
| Image Tampering Prevention | Verifies watermarks in videos and images |
| Network | |
| Network Port | 2 × RJ-45 Ethernet ports, 10/100/1000 M network transmission |
| SDK and API | Yes |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Network Protocol | IPv4/IPv6; HTTP; TCP/IP; UDP; NTP; DHCP; FTP; SMTP; RTSP; RTP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) |
| Browser | Microsoft Edge; IE: IE9–IE11; Chrome: Chrome 41 and earlier; Firefox: Firefox 49 and earlier. For Win 10 users, run the browser as administrator |
| Positioning | GPS |
| Network Status Monitoring | NTP; GPS |
| Port | |
| Storage | 1, TF card (maximum 256 GB@Class10) |
| Iris Control | 1, connects to DC auto iris or P-IRIS |
| Focus Control | 1, connects to motorized vari-focal lens |
| Frequency Source Sync | 1, supports synchronizing the camera with the mains electricity |
| Peripheral Light | 7, optocoupler signal output (can be configured as flash light or LED strobe sync output interface, frequency adjustable) |
| USB | 2 × USB 3.0 ports |
| RS-485 | 2, connects to devices such as signal detector, radar, and more |
| RS-232 | 4 (3 for radar connection, and 1 for serial port debugging) |
| I/O | 4, same functions as ALARM IN port |
| Audio Input | 1 channel (3.5 mm JACK port) |
| Audio Output | 1 channel (3.5 mm JACK port) |
| Alarm Input | 4, same functions as I/O port |
| Alarm Output | 2 (AO1 is for relay output and AO2 for optocoupler output) |
| Power Output | 12 VDC ± 10% voltage output, ≤1.5 A current output |
| General | |
| Power Supply | 100 – 240 VAC (50 Hz/60 Hz) |
| Power Consumption | ≤20 W |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 0% – 90% (RH) |
| Storage Humidity | 0% – 90% (RH) |
| Certifications | CEE234884-A6104-IT-4; 4790433450-2; FCC: 4790433450-1 |
| Protection | IP66, IK10 |
| Product Dimensions | 554.0 mm × 204.2 mm × 209.6 mm (21.81" × 8.04" × 8.25") (L × W × H) |
| Net Weight | 4.6 kg (10.14 lb) |
| Gross Weight | 6.6 kg (14.55 lb) |
| Installation | Center mount; side mount |
