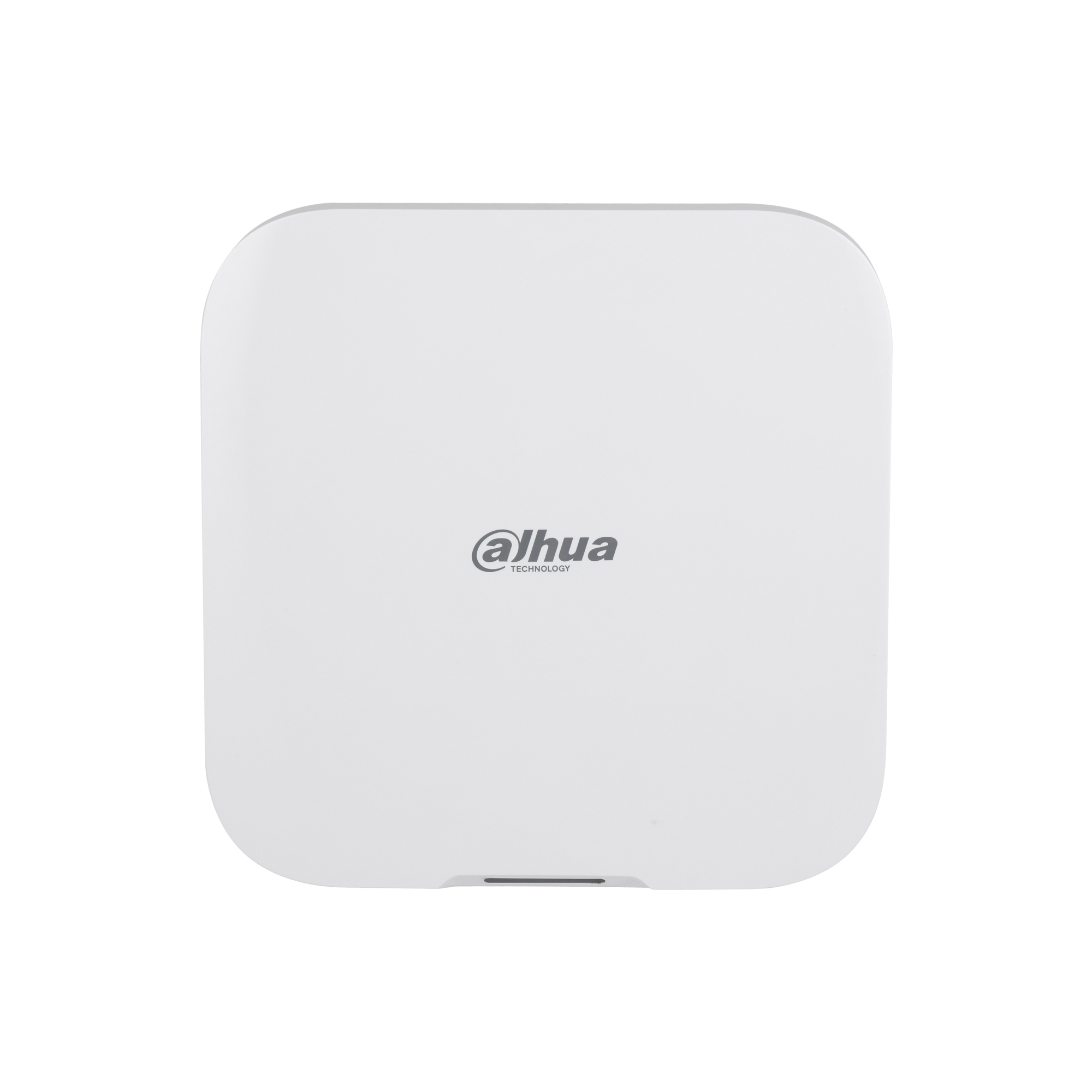

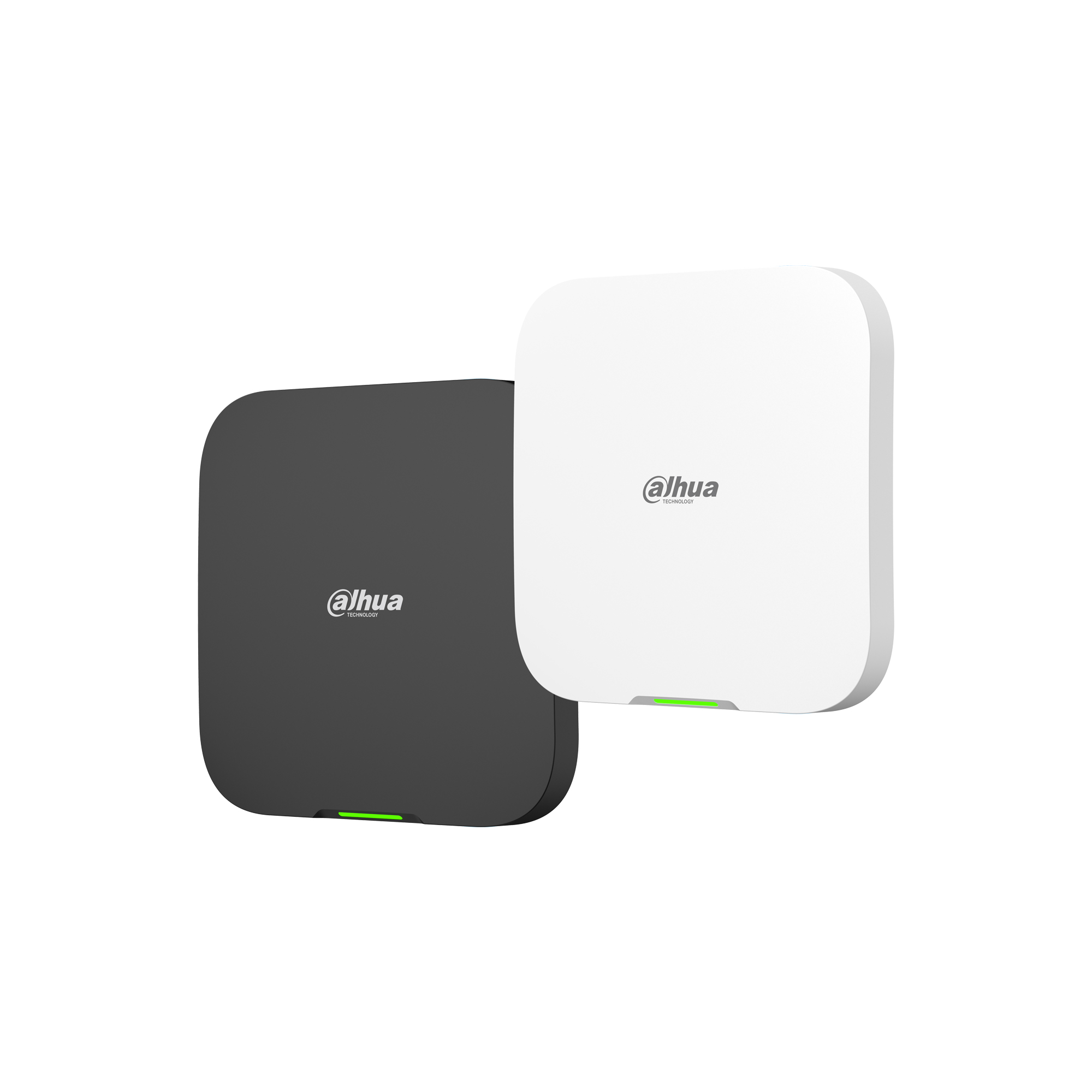

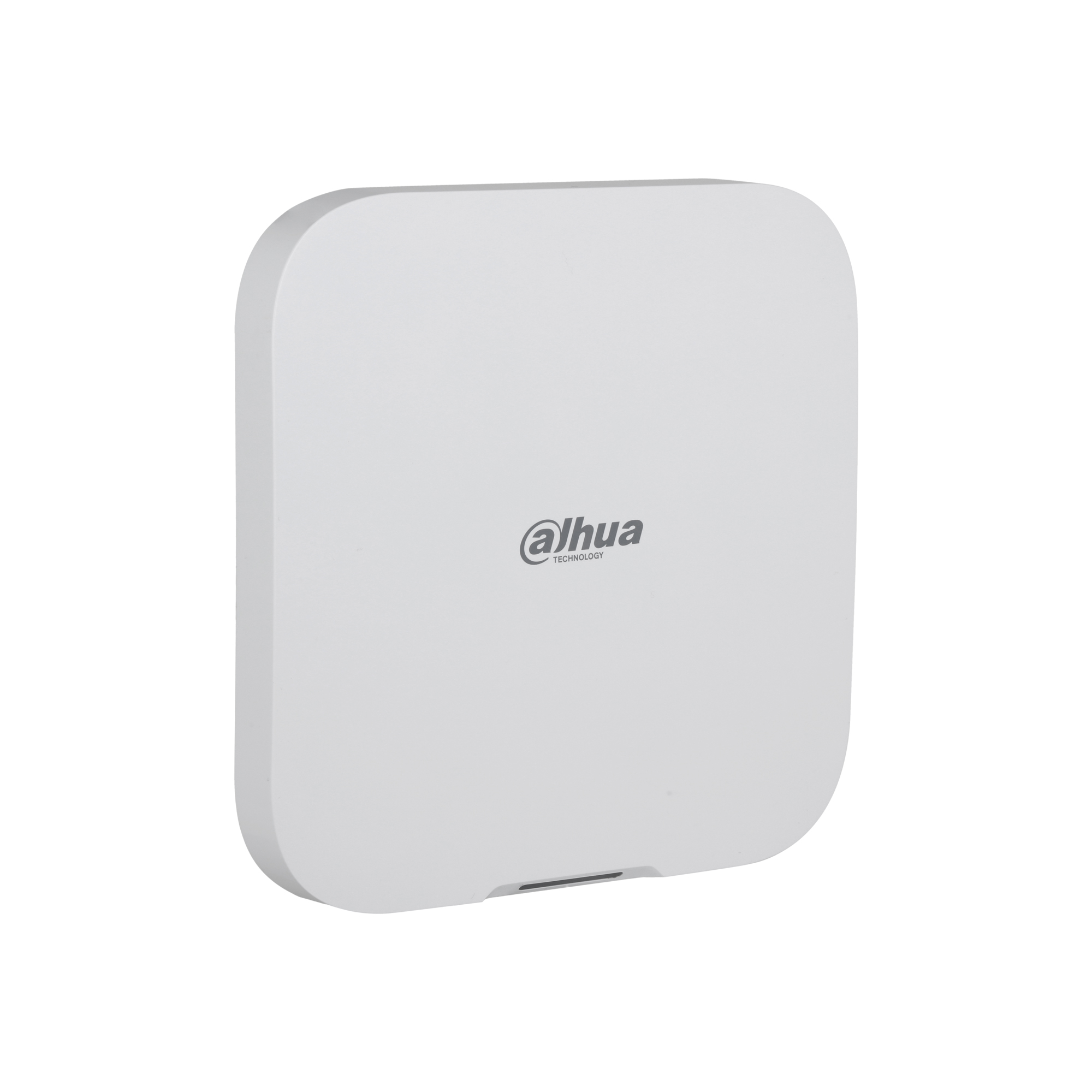

Brings wireless detectors, sirens and cameras together in a single alarm hub.

This wireless alarm hub works over Ethernet and Wi-Fi and manages 150 peripherals and 32 separate areas from one interface. Two-way communication and frequency hopping keep the detector link on the 433.1–434.6 MHz band stable.

150Wireless peripheral capacity

32Independent areas

8IPC video channels

433.1–434.6 MHzCarrier Frequency

AES128Encryption

100–240 V ACPower supply

Key features

150peripherals

Wide wireless capacity

Connects 64 keyfobs, 8 keypads, 6 sirens, 4 repeaters and 64 PIR cameras to one hub.

8IPC channels

Video verification at alarm

Adds the image from the PIR camera to the alarm record and confirms the event with video.

32areas

Zone-based arming

Splits rooms into separate areas and arms or disarms each area independently.

12hours

Built-in battery backup

Keeps working through a power outage when fully charged.

AES128encryption

Protected wireless link

Two-way communication and frequency hopping keep the peripheral link stable.

50alarm messages

Offline cache

Stores alarm messages on the device when the network drops and sends them once the link returns.

EVERYDAY USE

Management from the appHandles arming and disarming through the app, keypad, remote control, card and schedule.

Uninterrupted networkRuns redundantly across Ethernet and Wi-Fi, and moves to the other path when one link drops.

Remote updateUpdates the device and wireless peripherals over the cloud, and falls back to the backup if an update stops halfway.

Technical Specifications
Port / Wireless Zone
Wireless Zone	150 wireless peripherals (64 keyfobs, 6 sirens (including 4 intercom sirens), 8 keypads, 4 repeaters, 64 PIR-Cam (including indoor PIR cameras, external PIR cameras, and triple-tech detectors), 16 Multi I/O Transmitters), 64 wired alarm inputs expanded by Transmitters, and 8 IPCs
Area	32 areas (rooms)
Network Mode	Ethernet and Wi-Fi
Network Port	1 RJ-45, 10 Mbps/100 Mbps Ethernet port
Storage Battery	One built-in 4,750 mAh rechargeable lithium battery
Video & Audio
Video Input	8-ch IPC (alarm video upload only)
Audio Output	1 channel
Volume Control	Yes
Voice Broadcast	Local speaker
Function
Indicator Light	Indicates alarm status, arming/disarming, network connection and device failure
Button	Reset button, voltage button and AP switch button
Video Linkage	Yes
Offline Cache	Stores up to 50 alarm messages
Arm and Disarm	App, keyboard, remote control, card, scheduled arming/disarming
Remote Update	Cloud update
Low Battery Detection	Yes
Tamper	Yes
User Management	33 app users (31 general, 1 admin, 1 installer) and 32 keypad users
Logs	Up to 5,000 entries
Transmission Protocol	SIA, SoftGuard
Wireless
Carrier Frequency	433.1–434.6 MHz
Transmitter Power (EIRP)	Limit 10 mW
Communication Mechanism	Two-way
Communication Distance	Up to 1,400 m (4593.18 ft) in an open space
Encryption Mode	AES128
Frequency Hopping	Yes
Wi-Fi
Wi-Fi Standard	IEEE 802.11 b/g/n
Wi-Fi Frequency Range	2400–2483.5 MHz
Wi-Fi Power Transmission	≤20 dBm @ 2400–2483.5 MHz
General
Language	14 languages supported
Power Supply	100–240 V AC, 50/60 Hz
Standby Time	Up to 12 hours when fully charged
Power Consumption	220 V AC 80 mA (Max.); 220 V AC 40 mA (Standby)
Operating Temperature	–10°C ~ +55°C (battery not charging); 0°C ~ +45°C (charging)
Operating Humidity	10% ~ 90% (RH)
Storage Temperature	–10°C ~ +55°C
Storage Humidity	10% ~ 90% (RH)
Dimensions	174.8 mm × 174.8 mm × 38.3 mm (L × W × H)
Net Weight	510 g
Gross Weight	860 g

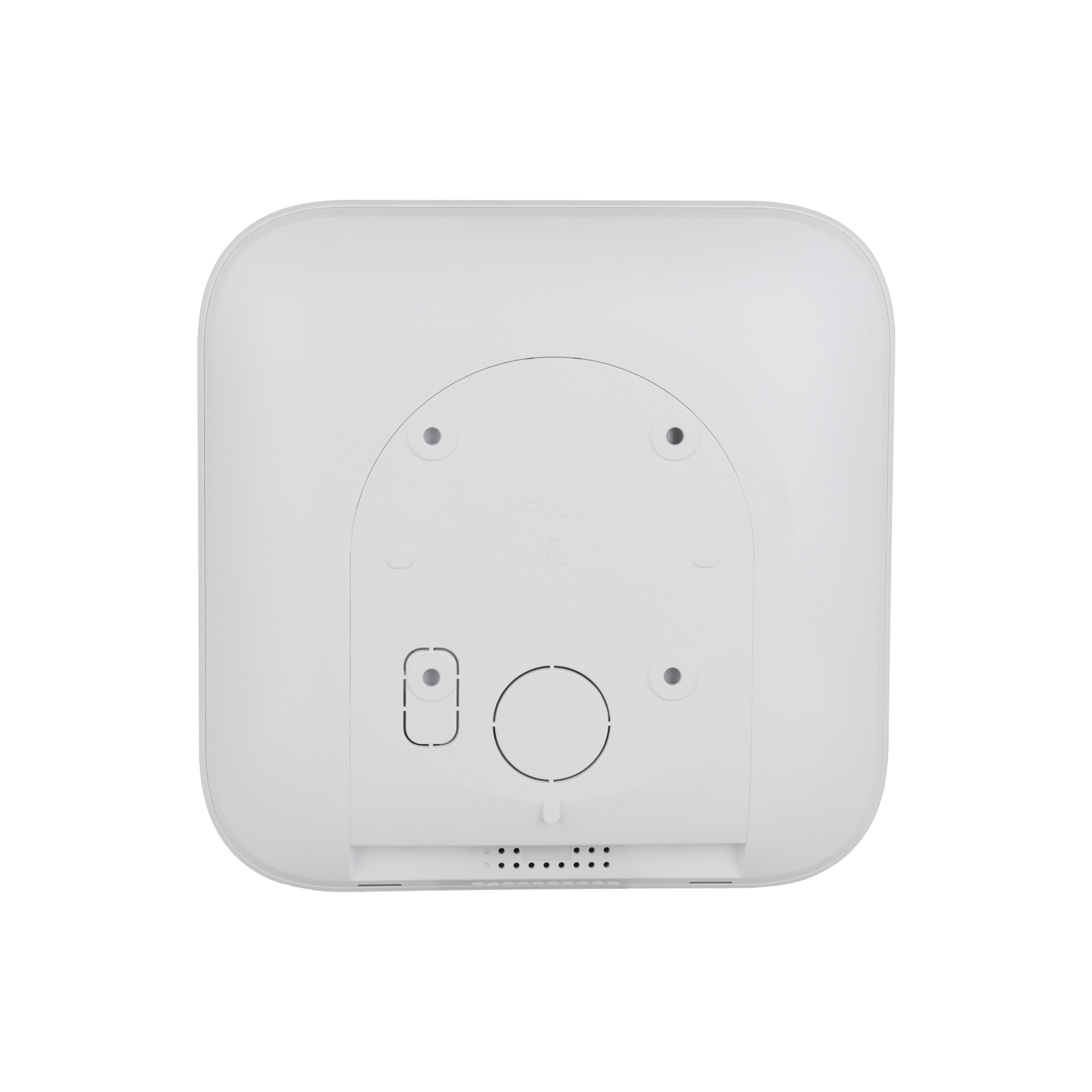

Installation	Wall mount and desktop mount
Casing Material	PC + ABS
Anti-corrosion Level	Basic Protection
Certifications	CE
