Catches smoke along a beam line in tall, open spaces.

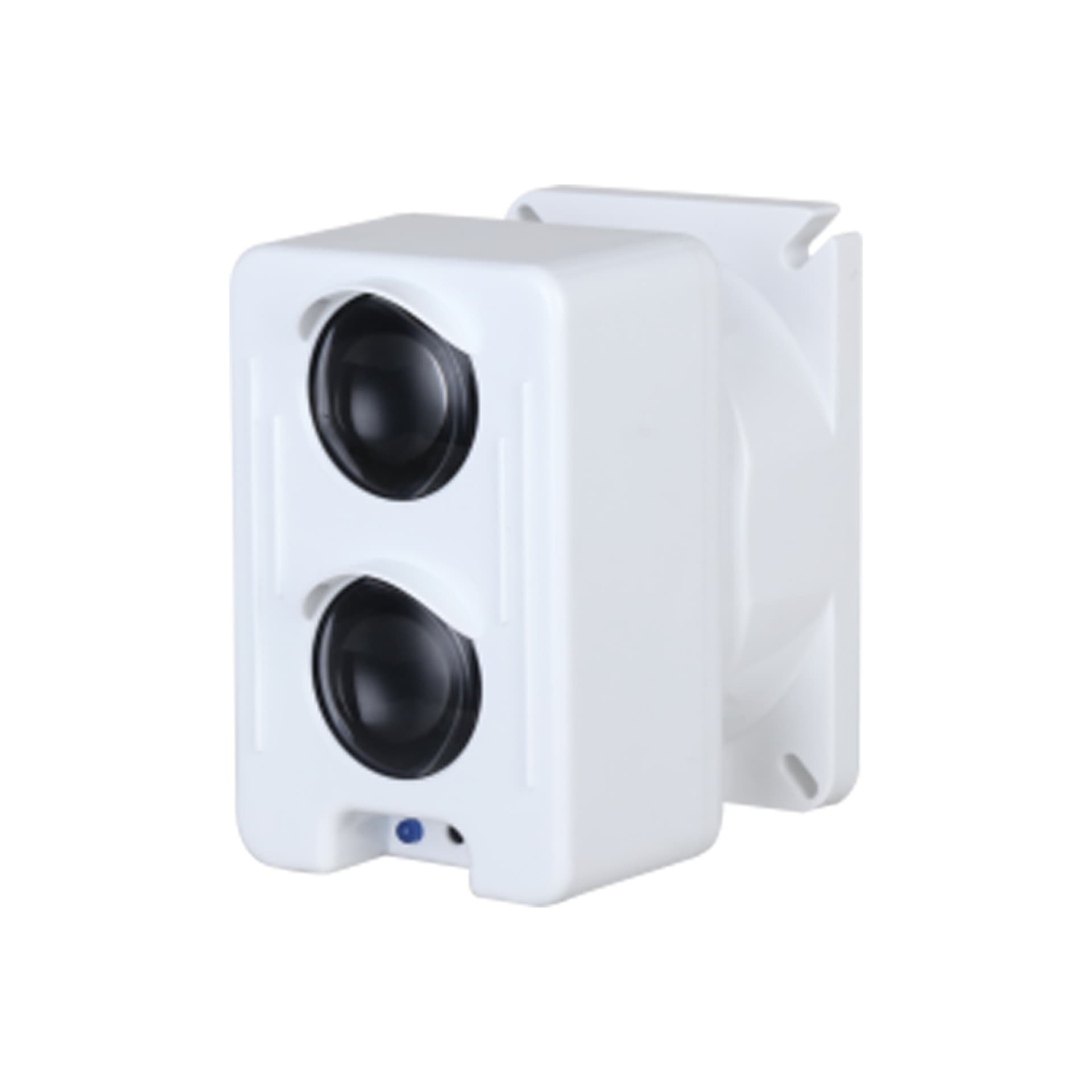

A linear beam smoke detector for tall indoor spaces with large open volumes. It forms a beam between 5 m and 100 m from transmitter to receiver and watches the smoke density along that line. It draws about 30 mA from a 24 V DC supply.
5 m – 100 mWorking distance
1.8 dBAlarm sensitivity
24 VOperating Voltage
30 mAWorking current
-35 °C ~ +65 °COperating Temperature
Key features
Wide voltage rangeIt runs between 18 V and 36 V and tolerates supply fluctuation.
Easy alignmentAn adjustment angle of ±5° up and ±10° down aligns the transmitter to the receiver.

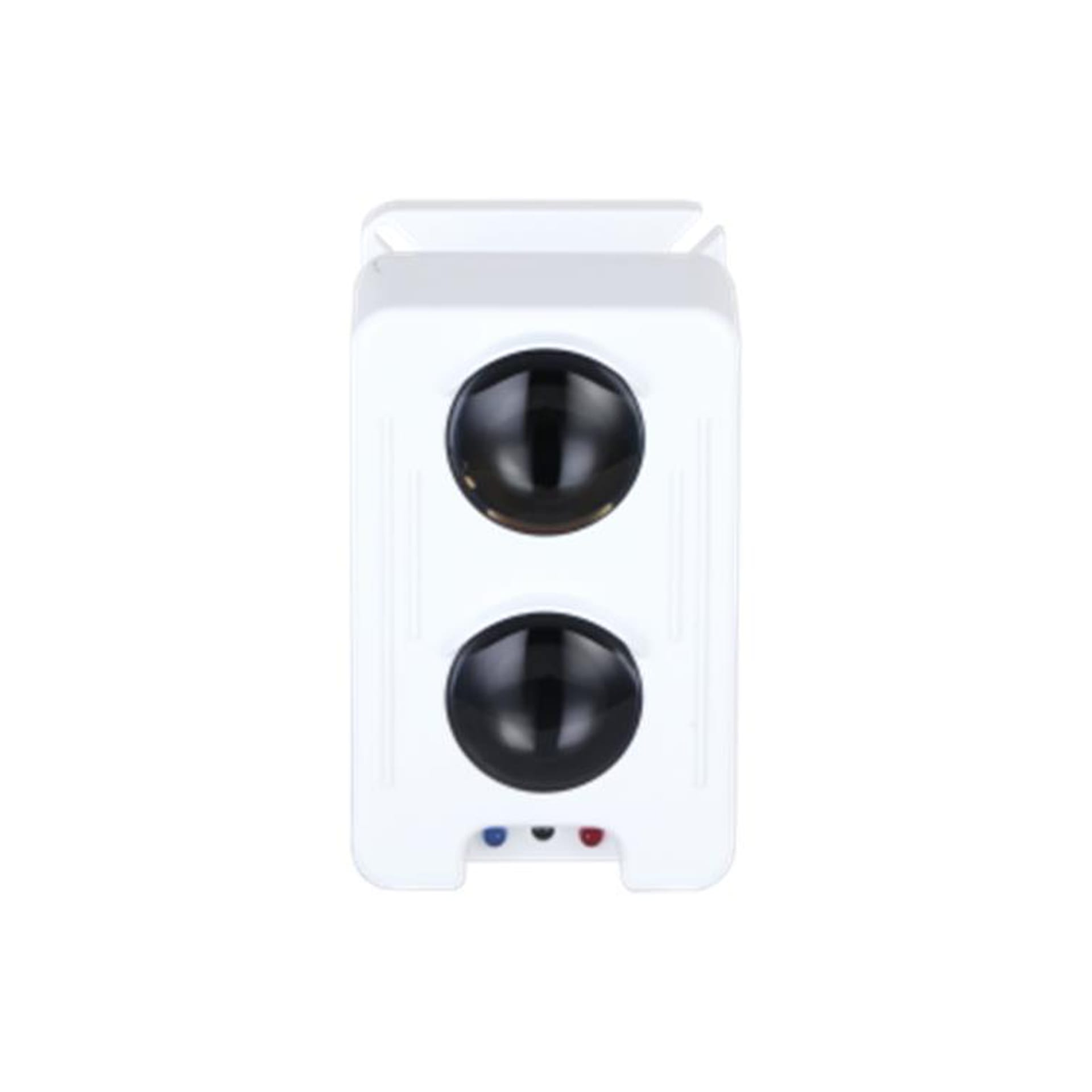

Status indicatorIn standby the blue light flashes every 4 seconds; on alarm the red light stays lit.
Built for harsh roomsIt works between -35 °C and +65 °C and up to 95% relative humidity.

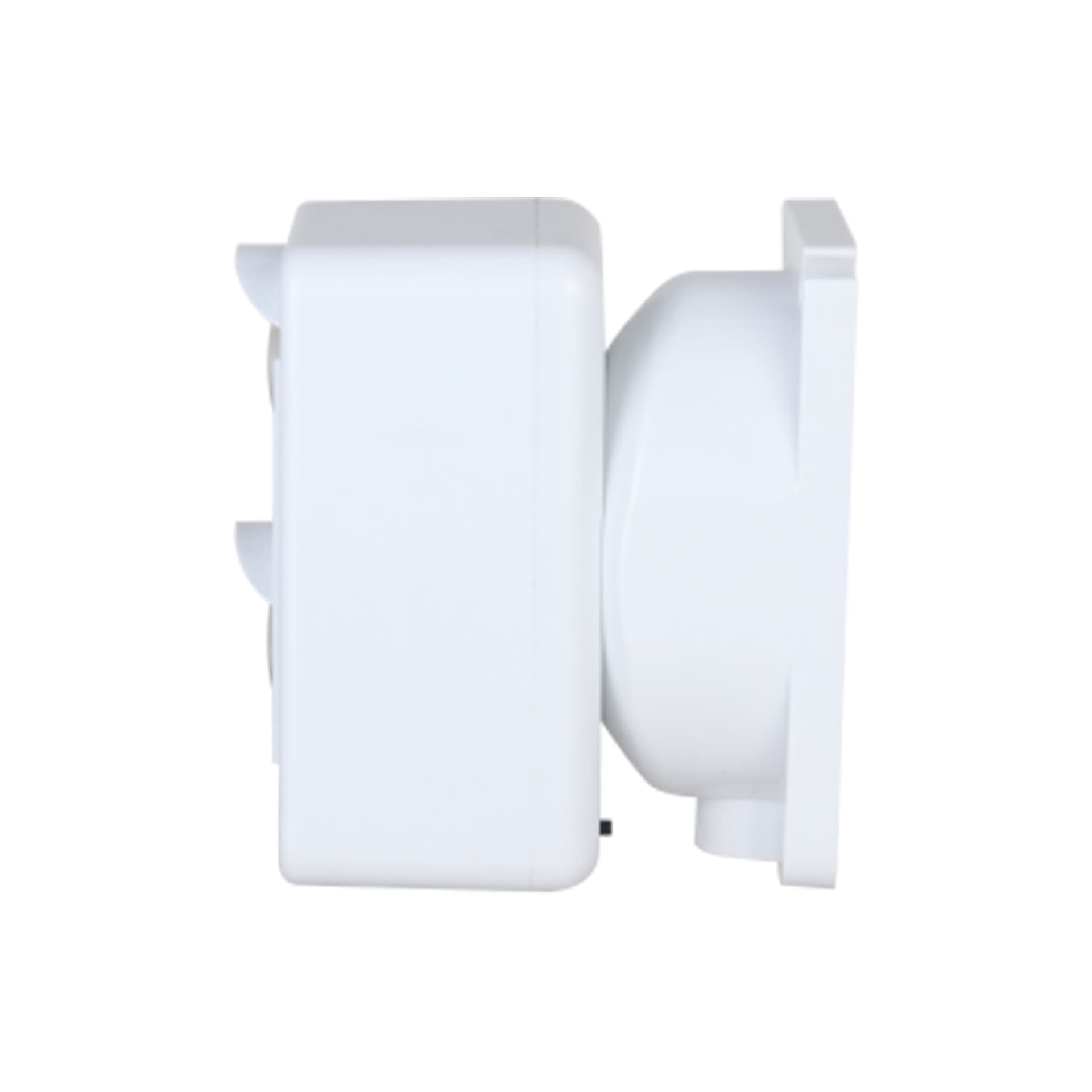

Light housingIt measures 78.5 mm × 123.0 mm × 115.0 mm and weighs 0.3 kg.
